HRM520 K2 EAA (MBDF) - Honda Autonomous Mower, Made in France (SN: MBDF-1000001 - MBDF-2015062) STATION Parts Diagram

Autonomous Mower, Made in France

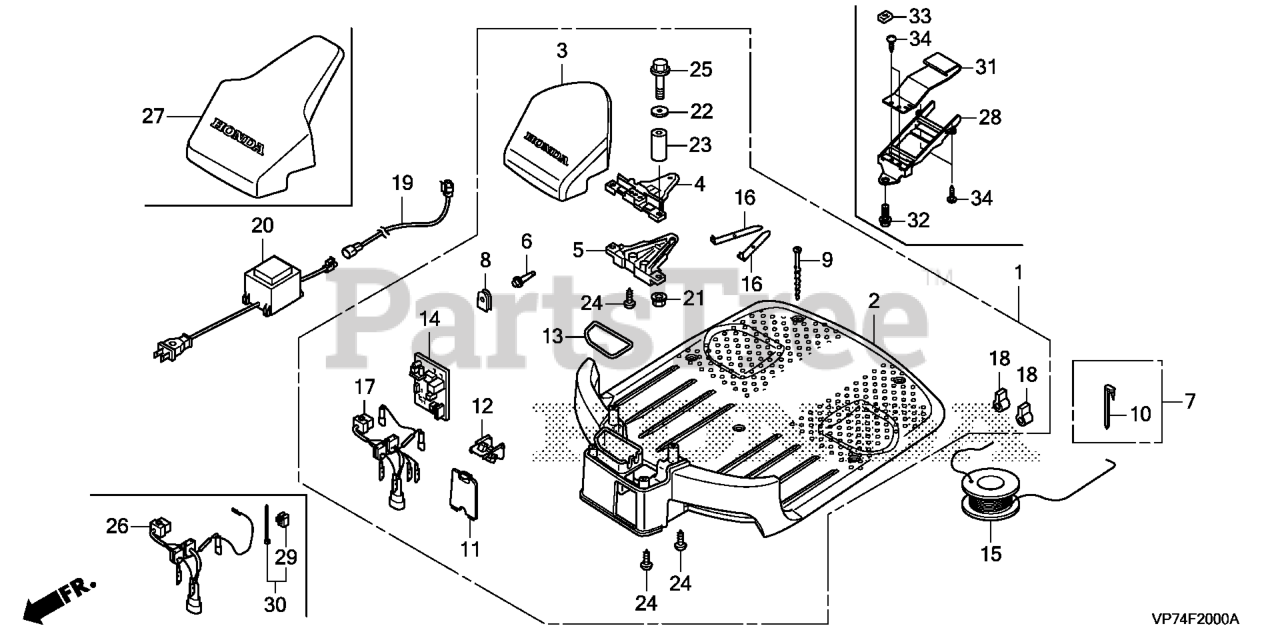

STATION Parts Diagram

  • Title

2

Honda 31220-VP7-A00

STATION

$76.99

$

Usually ships in 3-6 days

0

4

Honda 31222-VP7-000

COVER, CHARGE PLUG (UPPER)

$9.99

$

Usually ships in 3-6 days

0

5

Honda 31223-VP7-000

COVER, CHARGE PLUG (LOWER)

$11.99

$

Usually ships in 3-6 days

0

6

Honda 31224-VP7-000

LENS, STATION INDICATOR

$6.49

$

Usually ships in 3-6 days

0

7

Honda 31225-VP7-000

PEG SET, AREA WIRE (50 PIECES)

$24.99

$

Usually ships in 3-6 days

0

8

Honda 31226-VP7-000

GROMMET, INDICATOR LENS

$12.99

$

Usually ships in 3-6 days

0

9

Honda 31227-VP7-000

PEG, STATION

$0.99

$

Usually ships in 3-6 days

0

10

Honda 31228-VP7-000

PEG, AREA WIRE

$0.99

$

Usually ships in 3-6 days

0

11

Honda 31231-VP7-000

COVER, STATION HARNESS

$3.49

$

Usually ships in 3-6 days

0

12

Honda 31232-VP7-D10

BASE, CONNECTOR

$4.99

$

Usually ships in 3-6 days

0

13

Honda 31251-VP7-000

SEAL, STATION

$3.49

$

Usually ships in 3-6 days

0

14

Honda 31570-VP7-D11

PCB ASSY., STATION

$581.99

$

Usually ships in 3-6 days

0

15

Honda 31575-VP7-000

WIRE, AREA (300M) (2.3MM)

$189.99

$

Usually ships in 3-6 days

0

15

Honda 31575-VP7-PB0

WIRE, AREA (300M)

Note: (Optional)

$622.99

$

Usually ships in 3-6 days

0

16

Honda 31576-VP7-000

PLUG, CHARGE

$14.99

$

Usually ships in 3-6 days

0

18

Honda 31579-VP7-000

SLEEVE

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90302-VP7-000

NUT, FLANGE (6MM)

$8.99

$

Usually ships in 3-6 days

0

22

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15) (Honda Code 1279173).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 91557-Z28-300

COLLAR, CARRY GRIP

$3.49

$

Usually ships in 3-6 days

0

24

Honda 93913-15420

SCREW, TAPPING (5X16) (PO)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 95701-06032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2105856).

$2.49

$

In Stock, Qty 5

0

26

Honda 31577-VP7-PA0

HARNESS ASSY., STATION

$89.99

$

Usually ships in 3-6 days

0

27

Honda 31221-VP7-D10

COVER, STATION

$32.99

$

Usually ships in 3-6 days

0

28

Honda 31229-VP9-A10

BASE, CHARGE PLUG (UPPER)

$118.99

$

Usually ships in 3-6 days

0

29

Honda 31571-VP9-A11

BAND

$3.99

$

Usually ships in 3-6 days

0

30

Honda 31572-VP9-A11

CLIP, BAND

$8.99

$

Usually ships in 3-6 days

0

31

Honda 31586-VP9-A10

PLUG, CHARGE (UPPER)

$117.99

$

Usually ships in 3-6 days

0

32

Honda 90002-Z0D-000

BOLT, FLANGE (6MM)

$3.99

$

In Stock, only 3 left!

0

33

Honda 90301-VP7-000

NUT, SPECIAL (6MM)

$0.99

$

Usually ships in 3-6 days

0

34

Honda 93913-14220

SCREW, TAPPING (4X12)

$1.49

$

Usually ships in 3-6 days

0
