HRM310 K2 EAA (MBEF) - Honda Autonomous Mower, Made in France (SN: MBEF-2015063 - MBEF-9999999) WIRE HARNESS Parts Diagram

Autonomous Mower, Made in France

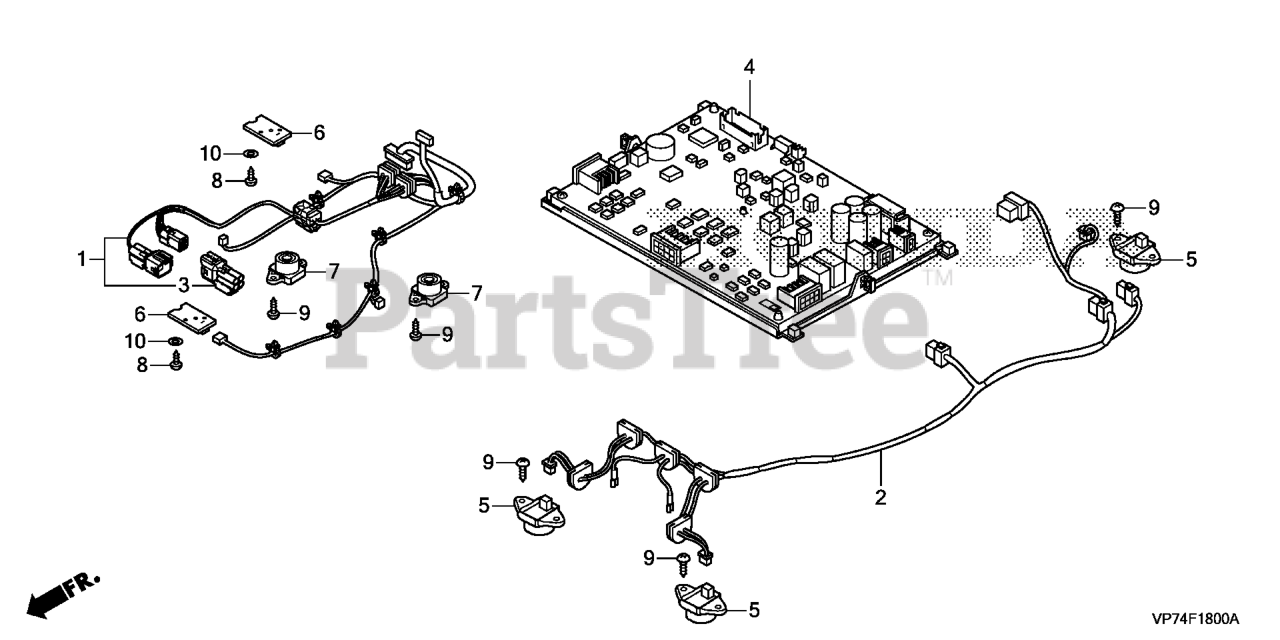

WIRE HARNESS Parts Diagram

  • Title
1

Honda 32100-VP7-D10

WIRE HARNESS ASSY., MAIN

$141.99

$

Usually ships in 3-6 days

0

2

Honda 32105-VP7-D10

SUB-WIRE HARNESS ASSY.

$109.99

$

Usually ships in 3-6 days

0

3

Honda 32174-VP7-000

CONNECTOR, DUMMY (4P)

$15.99

$

Usually ships in 3-6 days

0

4

Honda 34750-VP7-C11

CONTROL UNIT, ELECTRONIC

$1893.99

$

Usually ships in 3-6 days

0

4

Honda 34750-VP7-C15

ECU ASSY. (310)

$1912.99

$

Usually ships in 3-6 days

0

5

Honda 34760-VP7-004

SENSOR ASSY., AREA

$61.99

$

Usually ships in 3-6 days

0

6

Honda 36240-VP9-003

SENSOR, OBSTRUCTION

$39.99

$

Usually ships in 3-6 days

0

7

Honda 36250-VP7-003

SENSOR ASSY., LIFT

$69.99

$

Usually ships in 3-6 days

0

8

Honda 93913-14120

SCREW, TAPPING (4X10)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 93913-14220

SCREW, TAPPING (4X12)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 94103-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0
