HRM3000 K1 A (MBFF) - Honda Autonomous Mower, Made in France (SN: MBFF-1000001 - MBFF-9999999) WHEEL Parts Diagram

Autonomous Mower, Made in France

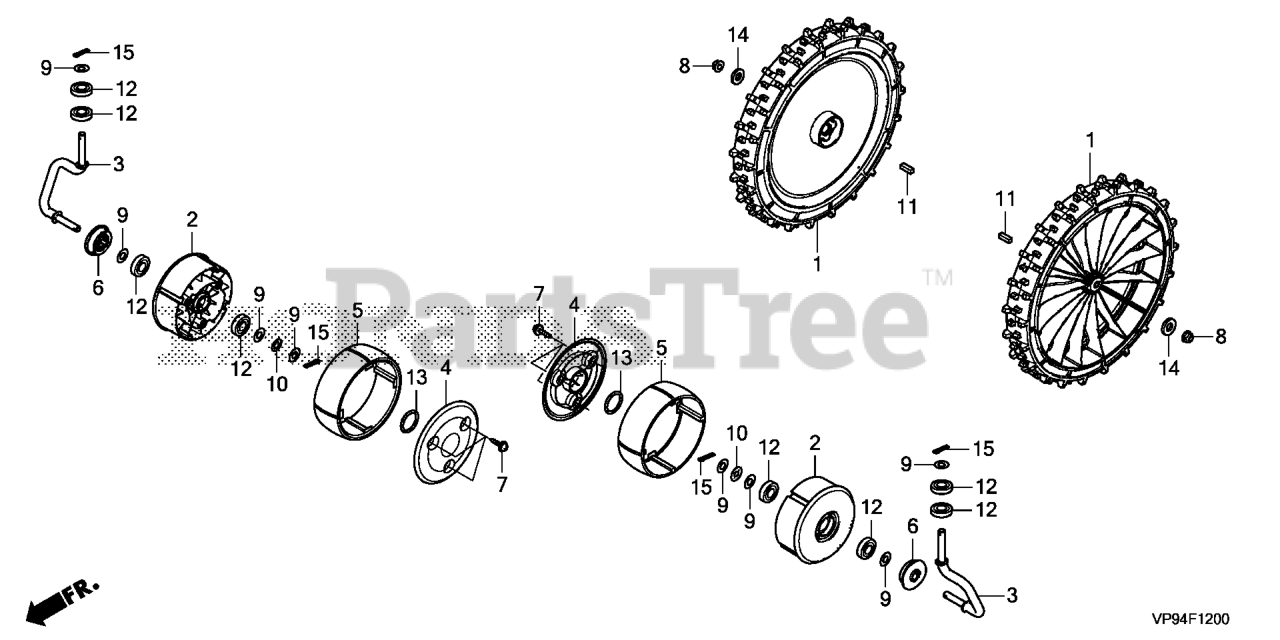

WHEEL Parts Diagram

  • Title

1

Honda 42710-VP9-010

WHEEL, RR.

$36.99

$

Usually ships in 3-6 days

0

2

Honda 44713-VP9-000

CASTER, FR.

$7.49

$

Usually ships in 3-6 days

0

3

Honda 44716-VP9-000

ROD, FR. CASTER

$59.99

$

Usually ships in 3-6 days

0

4

Honda 44717-VP7-000

COVER, CASTER

$3.99

$

Usually ships in 3-6 days

0

5

Honda 44718-VP7-000

TIRE, CASTER

$8.49

$

Usually ships in 3-6 days

0

6

Honda 44719-VP9-000

CAP, FR. WHEEL

$0.99

$

Usually ships in 3-6 days

0

7

Honda 90104-VP7-000

SCREW, TAPPING (5X16)

$0.99

$

Usually ships in 3-6 days

0

8

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

9

Honda 90505-VP9-000

WASHER, THRUST (7.2X14X1)

$35.99

$

Usually ships in 3-6 days

0

10

Honda 90552-VP9-003

WASHER, WAVE (7MM)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90751-VP7-000

KEY FLAT (4X4X14)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 91053-VP7-003

BEARING (7X17X5)
(Superseded to 91055-VP7-004)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 91352-VP9-000

O-RING, FR. CASTER

$7.49

$

Usually ships in 3-6 days

0

14

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

15

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, only 4 left!

0
