HRM3000 K1 A (MBFF) - Honda Autonomous Mower, Made in France (SN: MBFF-1000001 - MBFF-9999999) ROTARY BLADE Parts Diagram

Autonomous Mower, Made in France

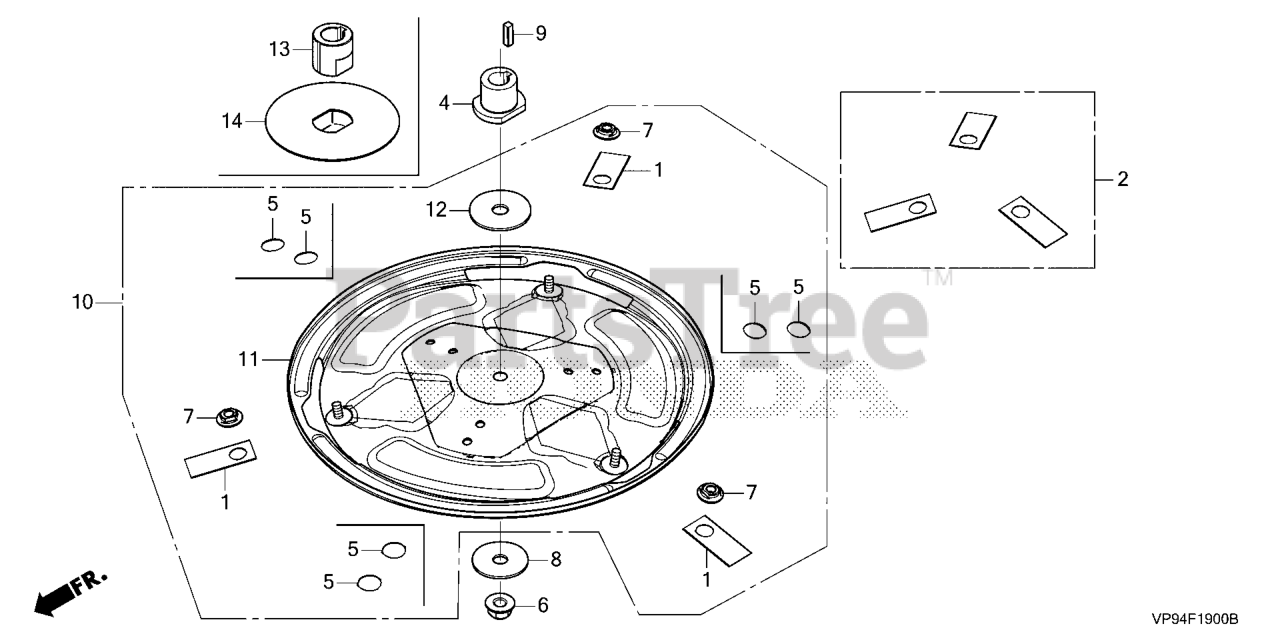

ROTARY BLADE Parts Diagram

  • Title

1

Honda 72511-VP7-C50

BLADE, ROTARY

Note: Use from Frame SN 2030001.

$

$

Currently unavailable

1

Honda 72511-VP7-030

BLADE, ROTARY

Note: Use up to Frame SN 2030000.

$4.49

$

Usually ships in 3-6 days

0

2

Honda 72511-VP7-915

BLADE SET, ROTARY

Note: Use up to Frame SN 2030000.

$26.99

$

Usually ships in 3-6 days

0

2

Honda 72515-VP7-C50

BLADE SET, ROTARY

Note: Use from Frame SN 2030001.

$

$

Currently unavailable

3

Honda 72605-VP9-PA1

DISK, BLADE (SEAL)

$74.99

$

Usually ships in 3-6 days

0

5

Honda 72616-VP9-000

SEAL, BLADE DISK

Note: Use up to Frame SN 2030000.

$2.49

$

Usually ships in 3-6 days

0

6

Honda 90304-VP7-003

NUT, SELF-LOCK (8MM)

$5.49

$

Usually ships in 3-6 days

0

7

Honda 90305-VP7-C50

NUT, BLADE (5MM)

Note: Use from Frame SN 2030001.

$

$

Currently unavailable

7

Honda 90305-VP7-000

NUT, BLADE (5MM)

Note: Use up to Frame SN 2030000.

$8.99

$

Usually ships in 3-6 days

0

8

Honda 90503-VP7-000

WASHER (8.5X32X1.5)

$0.99

$

Usually ships in 3-6 days

0

9

Honda 90751-VP7-000

KEY FLAT (4X4X14)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 04404-VP9-E00

DISK KIT, BLADE

$

$

Currently unavailable

11

Honda 72610-VP9-E00

DISK, BLADE

Note: Use from Frame SN 2030001.

$

$

Currently unavailable

12

Honda 90507-VP9-E00

WASHER (8.5X36X1.5)

Note: Use from Frame SN 2030001.

$

$

Currently unavailable

13

Honda 72611-VP9-J00

HOLDER, BLADE DISK

Note: Use from Frame SN 2030333.

$

$

Currently unavailable

14

Honda 72613-VP9-J00

COVER, HOLDER

Note: Use from Frame SN 2030333.

$

$

Currently unavailable
