HRM215 SXA (MZBB) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBB-6000001 - MZBB-6199999) MUFFLER Parts Diagram

21" Walk-Behind Mower, Made in USA

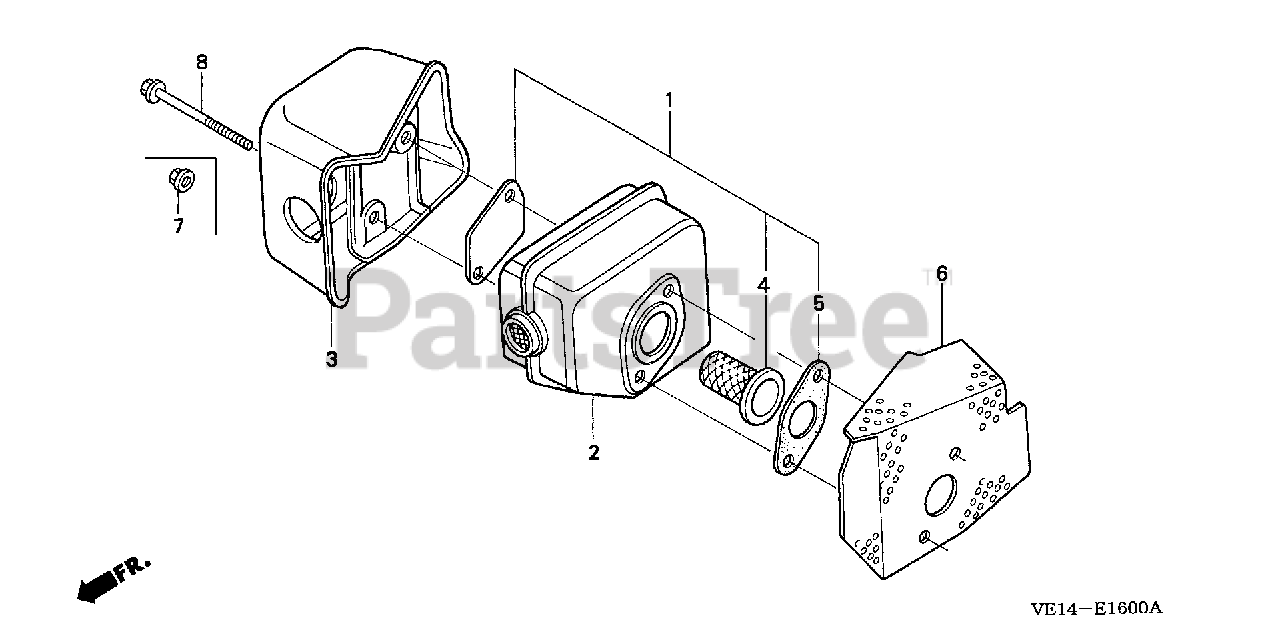

MUFFLER Parts Diagram

  • Title
1

Honda 06180-ZE6-820

ARRESTER KIT, SPARK

Note: (Optional).

$30.99

$

In Stock, only 1 left!

0

2

Honda 18310-ZE7-W40

SEE PART DETAILS - PRI; MUFFLER

$77.99

$

In Stock, only 1 left!

0

2

Honda 18310-ZG9-J01

SEE PART DETAILS - SUP; MUFFLER

$77.99

$

In Stock, only 1 left!

0

3

Honda 18320-ZG9-M01

PROTECTOR, MUFFLER

$14.99

$

In Stock, only 1 left!

0

4

Honda 06180-888-505

ARRESTER KIT, SPARK

Note: (Optional).

$20.99

$

In Stock, only 1 left!

0

5

Honda 18381-ZE6-820

GASKET, MUFFLER

Note: (Optional).

$5.49

$

In Stock, Qty 7

0

6

Honda 18381-ZG9-M00

GASKET, MUFFLER

$6.49

$

In Stock, only 4 left!

0

7

Honda 90343-ZE6-000

NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0
