HRM215 K4 PDA (MZBB) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBB-6500001 - MZBB-9999999) HANDLEBAR (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

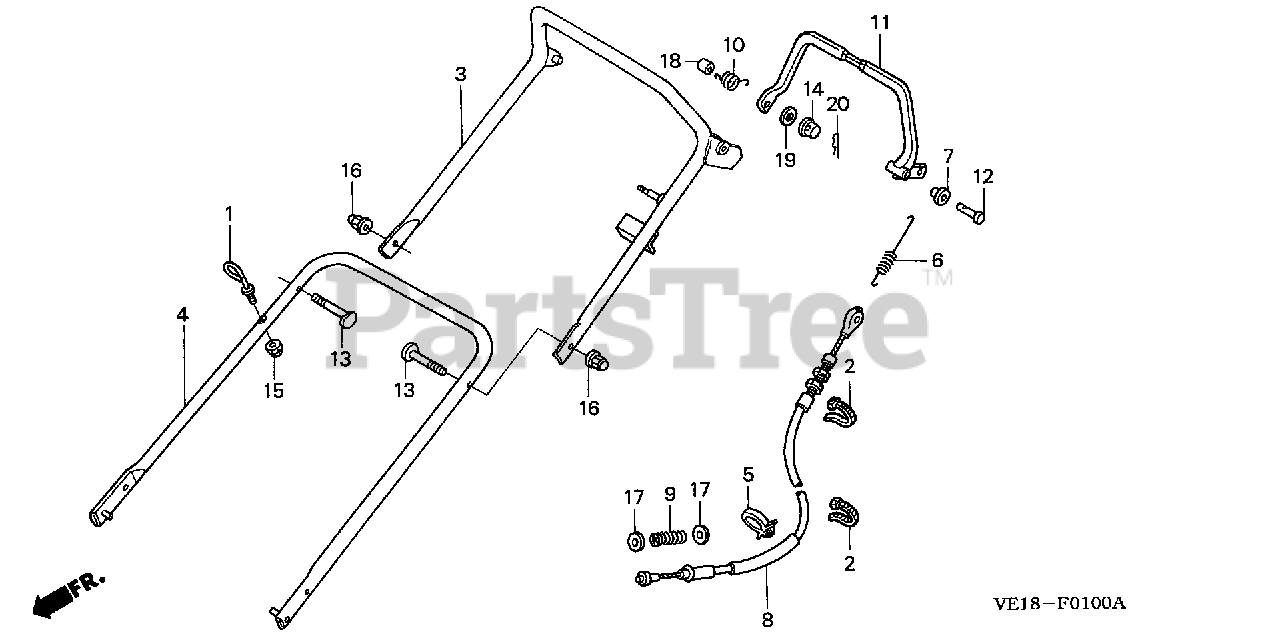

HANDLEBAR (PDA) Parts Diagram

  • Title

1

Honda 28475-VE1-V00

GUIDE, ROPE

$1.99

$

Usually ships in 3-6 days

0

2

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 20+

0

3

Honda 53150-VA4-J00ZC

PIPE, HANDLE (UPPER) *NH105* (MAT BLACK)

$65.99

$

Usually ships in 3-6 days

0

4

Honda 53150-VE1-V01ZA

HANDLE (LOWER) *NH105* (MAT BLACK)

$334.99

$

Usually ships in 3-6 days

0

5

Honda 53735-SE0-961

CLIP, POWER STEERING SUCTION TUBE

$14.99

$

Usually ships in 3-6 days

0

6

Honda 54411-VA3-J00

SPRING, CLUTCH

$7.99

$

In Stock, Qty 10

0

7

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, Qty 20+

0

8

Honda 54530-VE1-V01

CABLE, BRAKE

$35.99

$

Usually ships in 3-6 days

0

9

Honda 75113-VE2-D00

SPRING B, BRAKE

$0.99

$

Usually ships in 3-6 days

0

10

Honda 75118-VA3-J00

SPRING, R. STOP RETURN

$6.49

$

In Stock, Qty 20+

0

11

Honda 75171-VB5-D01ZA

LEVER, BRAKE *NH105* (MAT BLACK)

$92.99

$

Usually ships in 3-6 days

0

12

Honda 90106-VA4-000

PIN, CLUTCH LEVER

$11.99

$

Usually ships in 3-6 days

0

13

Honda 90109-VB5-800

BOLT, HANDLE HOLDER (8X36)

$0.99

$

In Stock, only 4 left!

0

14

Honda 90301-VA3-J01

NUT, PUSH (8MM)

$1.99

$

In Stock, Qty 20+

0

15

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 90443-107-000

NUT, CAP (8MM)

$3.99

$

In Stock, Qty 7

0

17

Honda 90501-VE2-D00

WASHER, SPECIAL (6MM)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90552-VA3-J00

COLLAR (8X11X13.5)

$4.49

$

In Stock, Qty 17

0

19

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

20

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 20+

0
