HRM215 K2 SXA (MZBB) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBB-6300001 - MZBB-6399999) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in USA

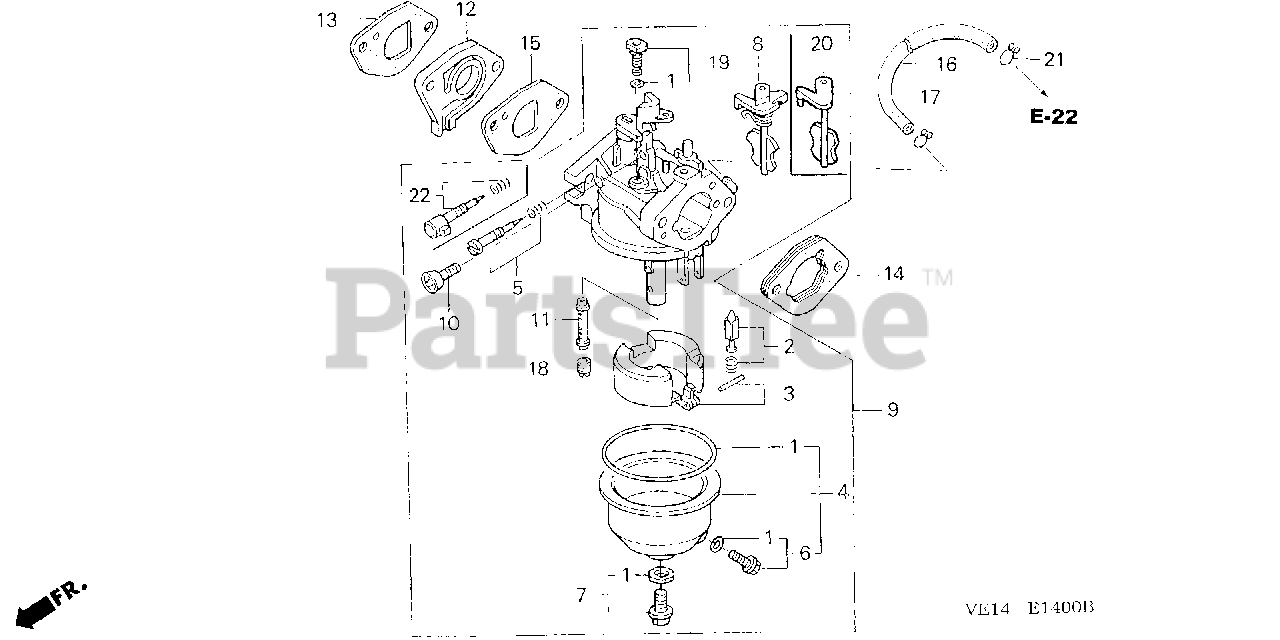

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZB1-015

GASKET SET

$19.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

$38.99

$

In Stock, only 2 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE7-005

CHOKE SET

Note: Use up to Engine SN 6747026.

$37.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZG9-M10

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE52B A)
(Superseded to 16100-ZG9-M12)

Note: Use up to Engine SN 6747026.

$82.99

$

In Stock, only 2 left!

0

9

Honda 16100-ZG9-M12

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE52B D)

$82.99

$

In Stock, only 2 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZG9-M11

NOZZLE, MAIN

$

$

Not available

12

Honda 16211-ZG9-000

INSULATOR, CARBURETOR

$11.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZG9-T00

GASKET, CARBURETOR

$5.99

$

In Stock, only 3 left!

0

14

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.49

$

In Stock, Qty 8

0

15

Honda 16221-ZG9-J60

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

15

Honda 16221-ZG9-T00

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

15

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

16

Honda 17523-ZG9-M00

TUBE, FUEL VALVE (170MM)

Note: Use from Engine SN 6324986.

$14.99

$

In Stock, only 1 left!

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X165)

Note: Use up to Engine SN 6324985.

$54.99

$

In Stock, only 1 left!

0

17

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

18

Honda 99101-ZH8-0500

JET, MAIN (#50)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

18

Honda 99101-ZH8-0520

JET, MAIN (#52)

Note: (Optional).

$10.99

$

In Stock, only 1 left!

0

18

Honda 99101-ZH8-0550

JET, MAIN (#55)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$23.99

$

In Stock, only 1 left!

0

20

Honda 16045-ZE6-005

CHOKE SET

Note: Use from Engine SN 6747027.

$

$

Not available

21

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

22

Honda 16016-ZH8-W01

SCREW SET

$12.99

$

In Stock, only 1 left!

0
