HRM215 K2 PDA (MZBB) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBB-6300001 - MZBB-6399999) FAN COVER Parts Diagram

21" Walk-Behind Mower, Made in USA

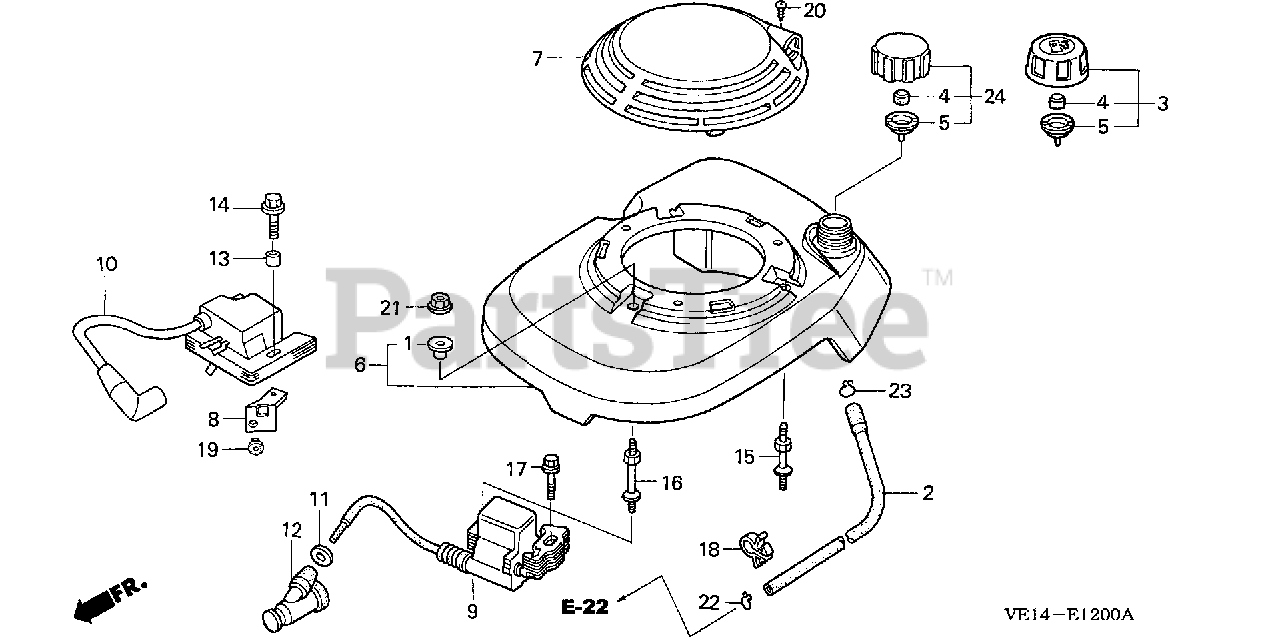

FAN COVER Parts Diagram

  • Title
1

Honda 17216-PE2-003

COLLAR, AIR CLEANER (TOYO ROKI)

$8.99

$

Usually ships in 3-6 days

0

2

Honda 17522-ZG9-M00

TUBE, FUEL TANK (135MM)

Note: Use up to Engine SN 6324985.

$

$

Not available

2

Honda 17522-ZG9-M10

TUBE, FUEL TANK (135MM)

Note: Use from Engine SN 6324986.

$6.49

$

In Stock, Qty 8

0

3

Honda 17620-ZG9-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$12.99

$

In Stock, only 1 left!

0

4

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

5

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$4.99

$

Usually ships in 3-6 days

0

6

Honda 19610-ZG9-M90

COVER, FAN
(Superseded to 19610-ZG9-M91)

$172.99

$

Usually ships in 3-6 days

0

7

Honda 19615-ZG9-M00ZB

HOOD, FAN COVER *R8* (SMOOTH) (BRIGHT RED)

$62.99

$

Usually ships in 3-6 days

0

8

Honda 19616-ZG9-M90

GUIDE, FAN COVER

$0.99

$

Usually ships in 3-6 days

0

10

Honda 30500-ZG9-801

COIL ASSY., IGNITION

$74.99

$

Usually ships in 3-6 days

0

13

Honda 75133-960-000

COLLAR, ROTO-STOP

$

$

Not available

14

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

$3.49

$

In Stock, only 1 left!

0

15

Honda 90041-ZG9-800

BOLT, STUD (BRAKE)

$

$

Not available

16

Honda 90042-ZG9-800

BOLT C, STUD

$10.99

$

In Stock, only 2 left!

0

18

Honda 90682-959-661

CLIP B, CABLE (9MM BLACK)

$3.99

$

In Stock, only 2 left!

0

19

Honda 91643-SJ8-000

GROMMET, DEFOGGER CORD (15MM)

$5.49

$

Usually ships in 3-6 days

0

20

Honda 93913-24580

SCREW, TAPPING (4X20)

$0.99

$

In Stock, Qty 7

0

21

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

22

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 6324985.

$2.49

$

In Stock, Qty 20+

0

22

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use from Engine SN 6324986.

$2.49

$

In Stock, Qty 20+

0

23

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 20+

0
