HRM215 K2 HXA (MZBB) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBB-6300001 - MZBB-6399999) THROTTLE LEVER (HXA) Parts Diagram

21" Walk-Behind Mower, Made in USA

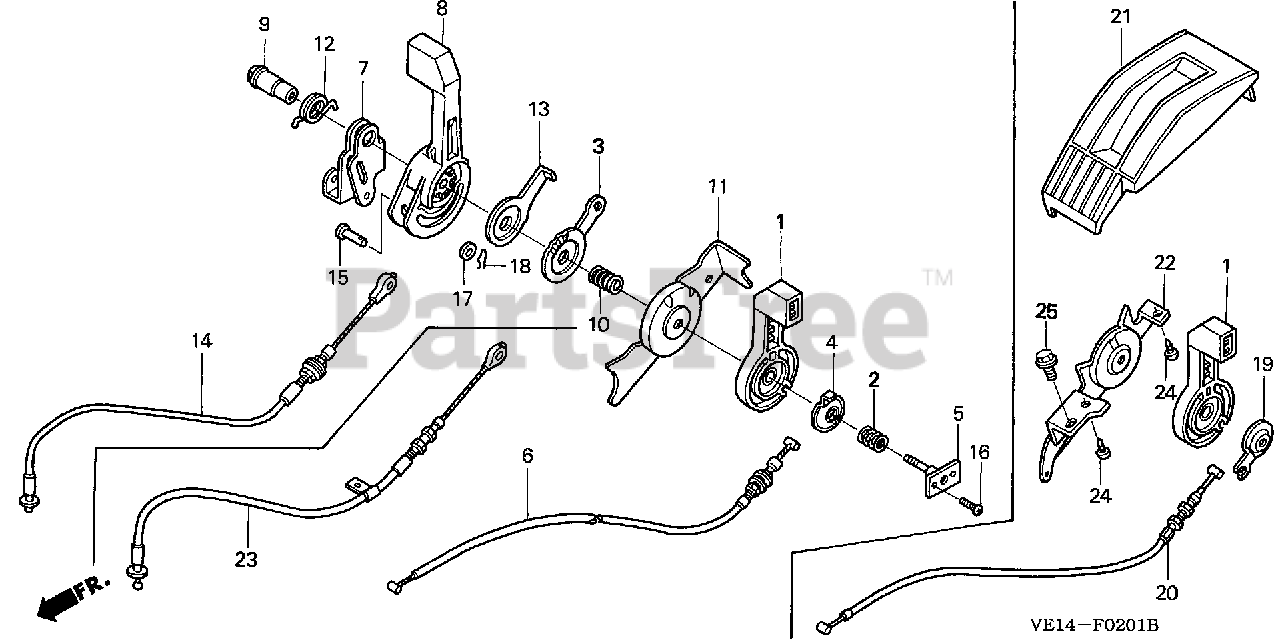

THROTTLE LEVER (HXA) Parts Diagram

  • Title

1

Honda 17851-VA3-D01

SEE PART DETAILS - PRI; LEVER, THROTTLE

$5.49

$

In Stock, Qty 11

0

2

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$4.49

$

Usually ships in 3-6 days

0

3

Honda 17859-VA3-P00

SEAT, SPRING

$6.49

$

Usually ships in 3-6 days

0

4

Honda 17859-VA4-000

SEAT, SPRING

$6.49

$

Usually ships in 3-6 days

0

5

Honda 17865-VE0-J50

PIN, THROTTLE LEVER

$8.99

$

Usually ships in 3-6 days

0

6

Honda 17910-VE2-003

CABLE, THROTTLE

$13.99

$

Usually ships in 3-6 days

0

7

Honda 24412-VE0-J50

ARM, CHANGE LEVER

$11.99

$

In Stock, only 2 left!

0

8

Honda 54311-VE0-J50

LEVER, CHANGE

$26.99

$

In Stock, only 1 left!

0

9

Honda 54313-VA3-P00

NUT, CHANGE LEVER

$7.99

$

Usually ships in 3-6 days

0

10

Honda 54314-VA3-P00

SPRING, CHANGE LEVER

$3.49

$

In Stock, Qty 9

0

11

Honda 54315-VE2-800

PLATE, STOPPER

$4.99

$

Usually ships in 3-6 days

0

12

Honda 54318-VA3-P00

SPRING, ARM RETURN

$4.49

$

In Stock, only 1 left!

0

13

Honda 54319-VA3-P00

PLATE, THRUST

$14.99

$

Usually ships in 3-6 days

0

14

Honda 54630-VE2-J00

SEE PART DETAILS - SUP; CABLE, CHANGE
(Superseded to 54630-VE2-J03)

Note: Use up to Frame SN 6323730.

$20.99

$

Usually ships in 3-6 days

0

14

Honda 54630-VE2-J03

SEE PART DETAILS - PRI; CABLE, CHANGE

$20.99

$

Usually ships in 3-6 days

0

15

Honda 90752-VA3-P01

PIN (6X22)

$4.49

$

In Stock, Qty 8

0

16

Honda 93500-06032-0A

SCREW, PAN (6X32)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0
