HRM215 K2 HXA (MZBB) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBB-6300001 - MZBB-6399999) CYLINDER HEAD Parts Diagram

21" Walk-Behind Mower, Made in USA

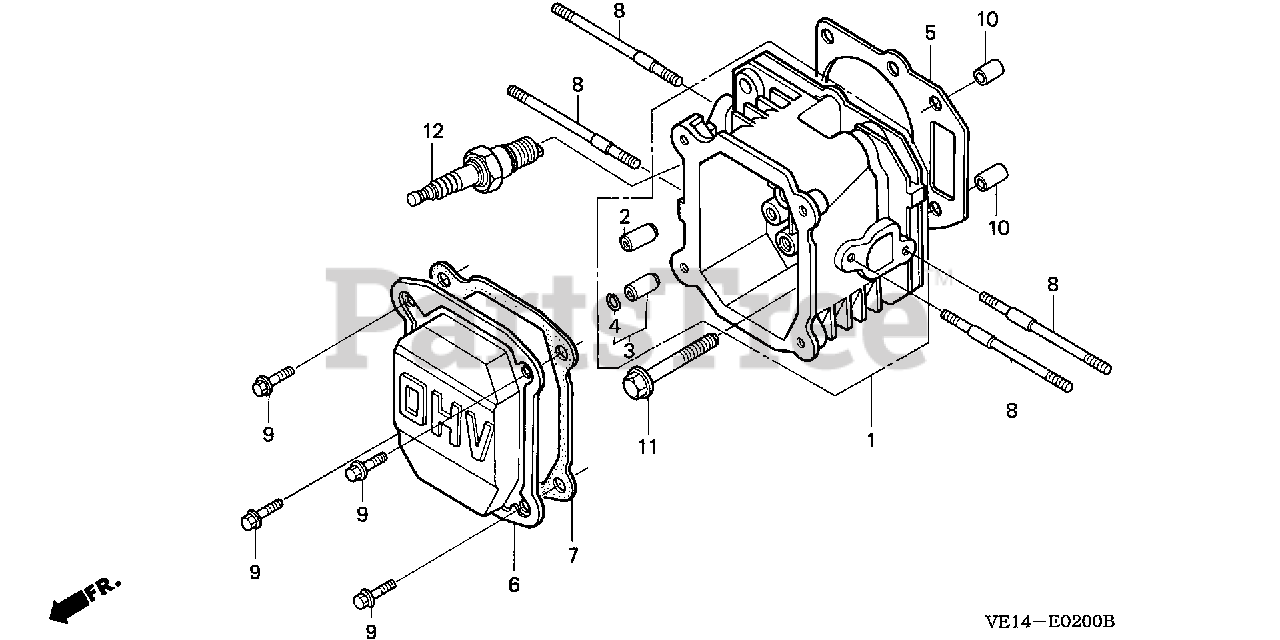

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZG9-P41

CYLINDER HEAD (USA)

Note: Use from Engine SN 6324986.

$88.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional).

$10.99

$

In Stock, only 2 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZG9-000

GASKET, CYLINDER HEAD

$27.99

$

In Stock, only 1 left!

0

6

Honda 12311-ZG9-800

COVER, HEAD

$10.99

$

In Stock, only 2 left!

0

7

Honda 12391-ZG9-800

GASKET, HEAD COVER

$6.49

$

Usually ships in 3-6 days

0

8

Honda 90013-ZG9-T00

BOLT, STUD (6X83)

$6.99

$

In Stock, only 4 left!

0

9

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 7

0

10

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

11

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0

12

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK)

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0

12

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

12

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0
