HRM195 PA (MZBV) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZBV-6000001 - MZBV-6400000) ROTARY BLADE Parts Diagram

19" Walk-Behind Mower, Made in USA

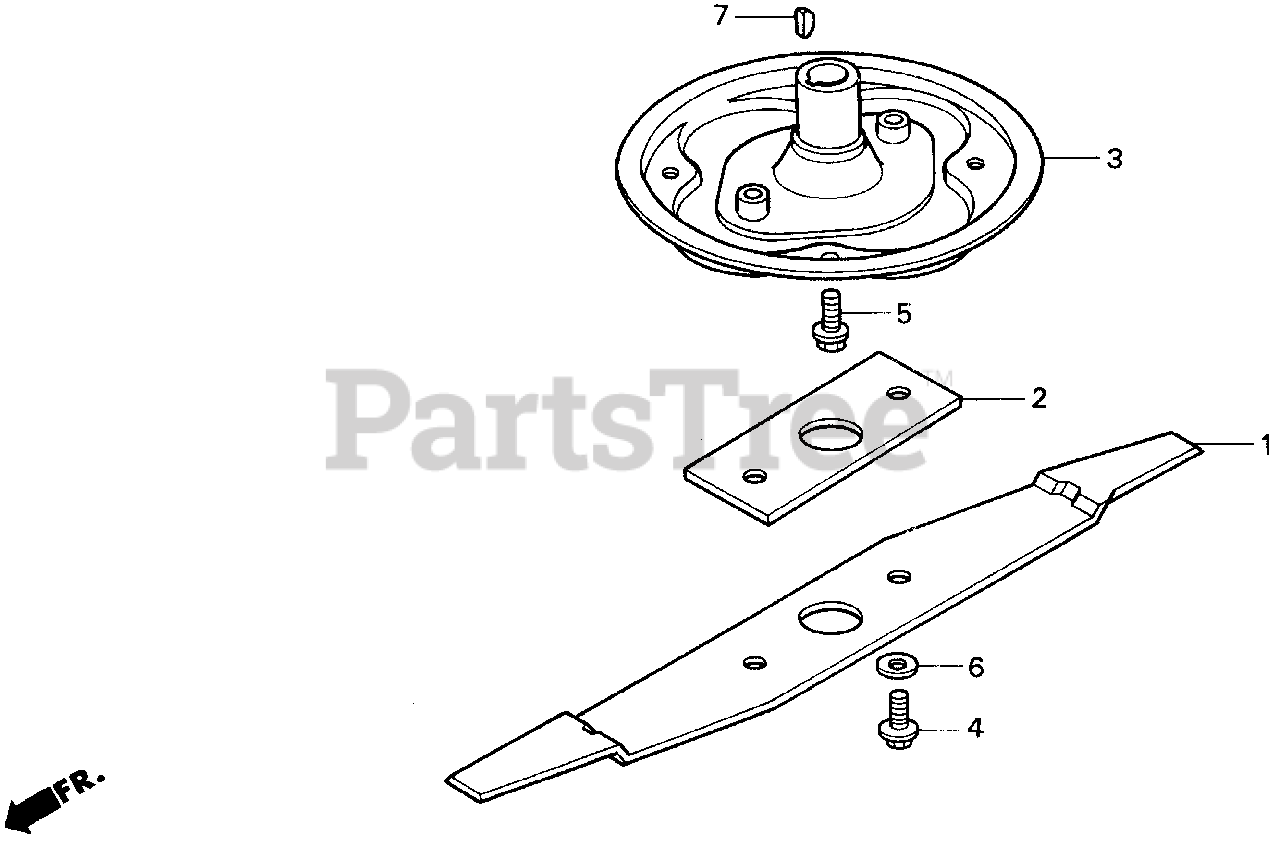

ROTARY BLADE Parts Diagram

  • Title
NI

Honda 72511-VB4-700

SEE PART DETAILS - PRI; BLADE, MULCHING (LOWER)

$14.99

$

Usually ships in 3-6 days

0

1

Honda 72531-VB4-700

BLADE, MULCHING (UPPER)

$19.99

$

In Stock, only 1 left!

0

2

Honda 72532-VB4-700

SPACER, BLADE

$5.99

$

Usually ships in 3-6 days

0

3

Honda 72610-VA4-711

HOLDER, BLADE

$87.99

$

Usually ships in 3-6 days

0

4

Honda 90105-VA3-J01

SEE PART DETAILS - PRI; BOLT, HEX. (10X25)

$1.99

$

In Stock, Qty 20+

0

5

Honda 90105-VA3-J01

SEE PART DETAILS - PRI; BOLT, HEX. (10X25)

$1.99

$

In Stock, Qty 20+

0

6

Honda 90481-430-000

WASHER, SPRING (10MM)

$8.49

$

In Stock, only 1 left!

0

7

Honda 94401-16150

KEY, WOODRUFF (16X15)

$1.99

$

In Stock, Qty 6

0
