HRM195 PA (MZBV) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZBV-6000001 - MZBV-6400000) RECOIL STARTER Parts Diagram

19" Walk-Behind Mower, Made in USA

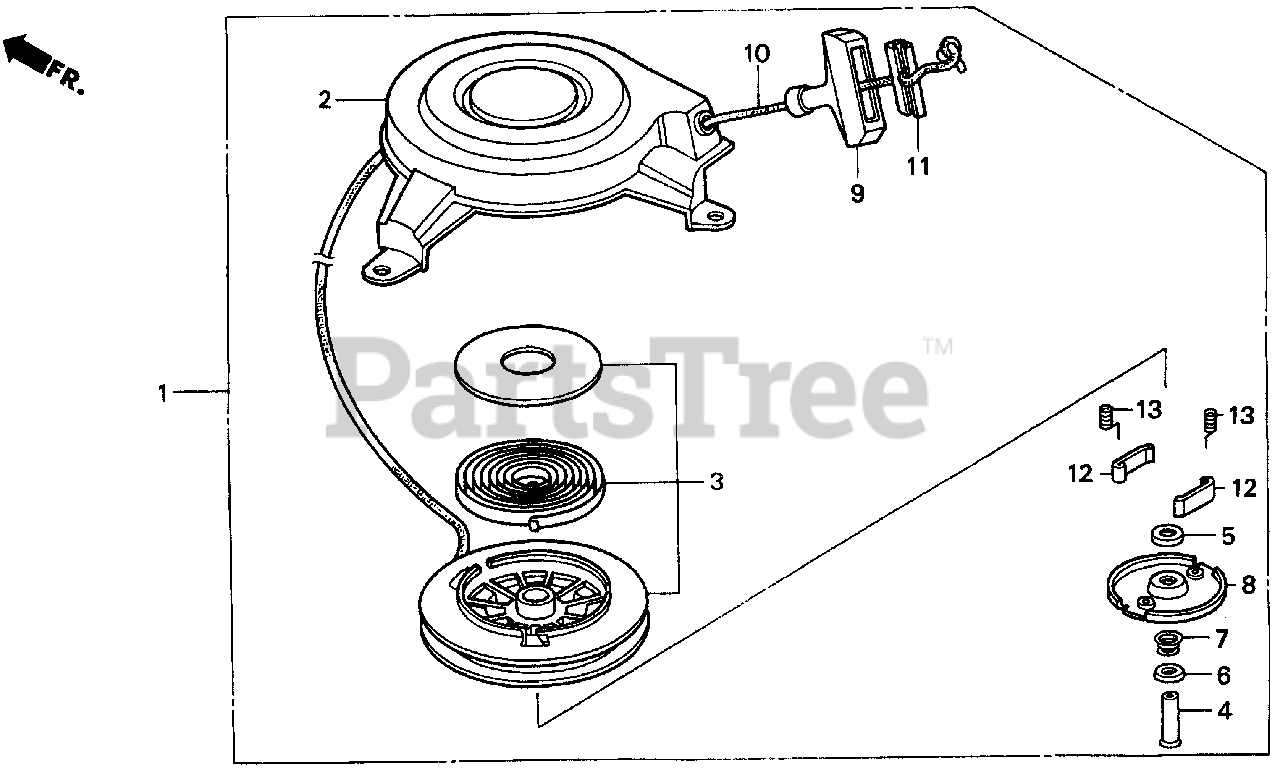

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZG9-803

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL

$139.99

$

In Stock, only 1 left!

0

2

Honda 28402-ZG9-802

HOUSING ASSY. (NA USE ALT:28400-ZG9-803)

$

$

Currently unavailable

3

Honda 28415-ZG9-802

PULLEY & SPRING ASSY.

$20.99

$

Usually ships in 3-6 days

0

4

Honda 28419-ZG9-802

PIN, CENTER

$2.49

$

In Stock, only 2 left!

0

5

Honda 28431-ZG9-802

PLATE A, FRICTION

$5.99

$

Usually ships in 3-6 days

0

6

Honda 28432-ZG9-802

PLATE B, FRICTION (NOT AVAILABLE)

$6.49

$

Usually ships in 3-6 days

0

7

Honda 28441-ZG9-802

SPRING, FRICTION

$

$

Not available

8

Honda 28444-ZG9-802

RETAINER

$2.99

$

In Stock, only 2 left!

0

9

Honda 28461-ZE6-T02

HANDLE

$5.99

$

In Stock, only 4 left!

0

10

Honda 28462-ZG9-802

ROPE, RECOIL STARTER (#4X85")

$11.99

$

Usually ships in 3-6 days

0

11

Honda 28463-ZE6-T02

HANDLE, REINFORCEMENT

$4.99

$

In Stock, only 3 left!

0

12

Honda 28485-ZE6-T02

RATCHET, STARTER

$3.49

$

Usually ships in 3-6 days

0

13

Honda 28486-ZE6-T02

SPRING, DOG

$2.49

$

In Stock, only 2 left!

0
