HRM195 PA (MZBV) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZBV-6000001 - MZBV-6400000) PISTON Parts Diagram

19" Walk-Behind Mower, Made in USA

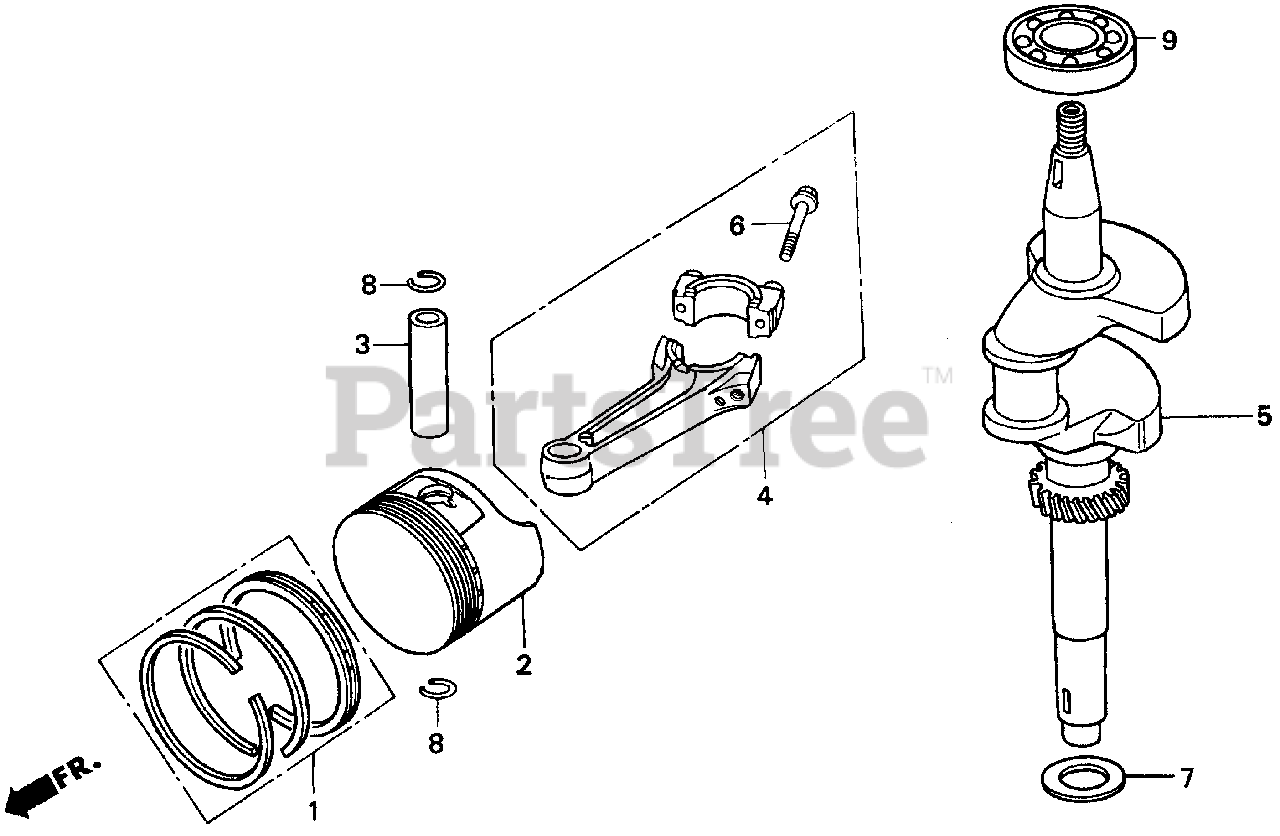

PISTON Parts Diagram

  • Title

1

Honda 13010-ZG9-T00

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (GOETZE)
(Superseded to 13010-ZG9-003)

$27.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZG9-T01

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (FEDERAL MOGUL)
(Superseded to 13010-ZG9-003)

$27.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZG9-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

$27.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZG9-T01

SEE PART DETAILS - SUP; RING SET, PISTON (0.25) (FEDERAL MOGUL) Use from Engine SN 7666484.
(Superseded to 13011-ZG9-003)

Note: (Optional).

$41.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZG9-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (NIPPON)

Note: (Optional).

$41.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZG9-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (TEIKOKU) Use up to Engine SN 7666483.
(Superseded to 13011-ZG9-003)

Note: (Optional).

$41.99

$

In Stock, only 1 left!

0

1

Honda 13012-ZG9-T01

SEE PART DETAILS - SUP; RING SET, PISTON (0.50) (FEDERAL MOGUL) Use from Engine SN 7666484.
(Superseded to 13012-ZG9-004)

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZG9-004

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (TEIKOKU)

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZG9-T00

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (GOETZE) Use up to Engine SN 7666483.
(Superseded to 13013-ZG9-003)

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZG9-T01

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.75) (FEDERAL MOGUL)
(Superseded to 13013-ZG9-003)

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZG9-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.75) (NIPPON)

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZG9-000

SEE PART DETAILS - SUP; PISTON (STD)
(Superseded to 13101-ZG9-010)

$

$

Not available

2

Honda 13102-ZG9-000

SEE PART DETAILS - SUP; PISTON (OS 0.25) Use up to Engine SN 7666483.
(Superseded to 13102-ZG9-010)

Note: (Optional).

$

$

Not available

2

Honda 13103-ZG9-000

SEE PART DETAILS - SUP; PISTON (0.50)
(Superseded to 13103-ZG9-010)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZG9-010

SEE PART DETAILS - PRI; PISTON (OS 0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-ZE0-000

PIN, PISTON (Honda Code 1426576).

$7.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE6-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 3214913).

$

$

Not available

4

Honda 13200-ZE6-315

ROD ASSY., CONNECTING (US 0.25) Use from Engine SN 2250473.

Note: (Optional).

$108.99

$

Usually ships in 3-6 days

0

5

Honda 13310-ZG9-P50

SEE PART DETAILS - PRI; CRANKSHAFT

$

$

Not available

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$3.99

$

In Stock, only 2 left!

0

7

Honda 90459-357-000

WASHER C, THRUST (25MM)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90551-ZE0-000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

$1.99

$

In Stock, Qty 20+

0

9

Honda 91001-878-003

BEARING, RADIAL BALL (62/22) (Honda Code 0442061).

$37.99

$

In Stock, only 1 left!

0
