HRM195 PA (MZBV) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZBV-6000001 - MZBV-6400000) HANDLEBAR Parts Diagram

19" Walk-Behind Mower, Made in USA

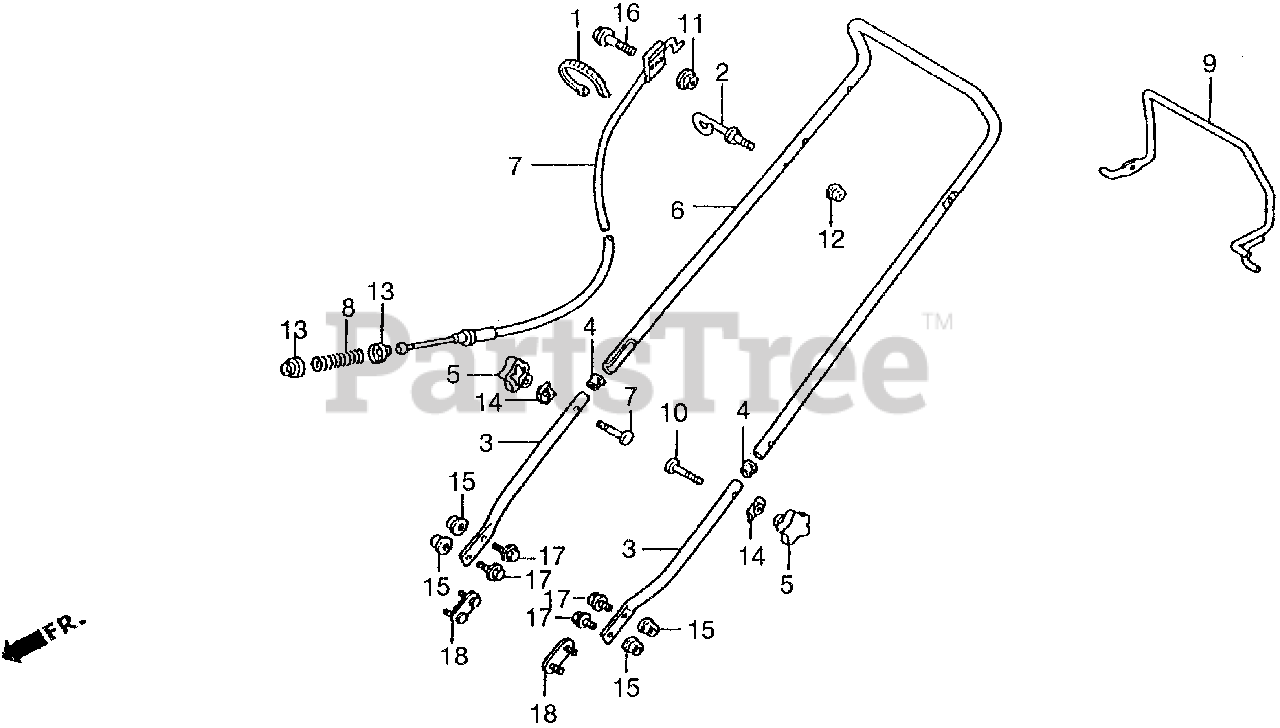

HANDLEBAR Parts Diagram

  • Title
1

Honda 25619-VE4-003

TIE

Note: Use up to Frame SN 6001428.

$

$

Currently unavailable

1

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

Note: Use from Frame SN 6001429.

$0.99

$

In Stock, Qty 10

0

2

Honda 28475-VB4-700

GUIDE, ROPE

$4.99

$

Usually ships in 3-6 days

0

3

Honda 53110-VB4-980ZA

PIPE COMP,*NH105*

$

$

Not available

4

Honda 53115-VB4-000

CAP, HANDLE (LOWER)

$

$

Not available

5

Honda 53125-VA4-K10

SEE PART DETAILS - PRI; GRIP, HANDLE JOINT (UPPER)

$7.99

$

Usually ships in 3-6 days

0

6

Honda 53151-VB4-700

PIPE, HANDLE (UPPER) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 54530-VB4-701

CABLE, BRAKE

$8.99

$

Usually ships in 3-6 days

0

8

Honda 75113-VE2-D00

SPRING B, BRAKE

$0.99

$

Usually ships in 3-6 days

0

9

Honda 75190-VB4-701

LEVER, BRAKE

$108.99

$

Usually ships in 3-6 days

0

10

Honda 90109-VA4-000

BOLT, HANDLE HOLDER (8X41)
(Superseded to 90113-V10-000)

$8.99

$

In Stock, Qty 19

0

10

Honda 90113-V10-000

BOLT (8X41)

$8.99

$

In Stock, Qty 19

0

11

Honda 90220-MA5-700

NUT, NYLON RING (6MM)

$11.99

$

Usually ships in 3-6 days

0

12

Honda 90325-VE4-003

NUT, FLANGE (1/4"-20)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90501-VE2-D00

WASHER, SPECIAL (6MM)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 10

0

15

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

16

Honda 95701-06035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2105864).

$2.49

$

In Stock, only 2 left!

0

17

Honda 95701-08018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X18) Use from Frame SN 1256673.

$2.49

$

Usually ships in 3-6 days

0

18

Honda 53120-VB4-000

CLAMP, HANDLE

$

$

Not available
