HRM195 PA (MZBV) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZBV-6000001 - MZBV-6400000) FLYWHEEL Parts Diagram

19" Walk-Behind Mower, Made in USA

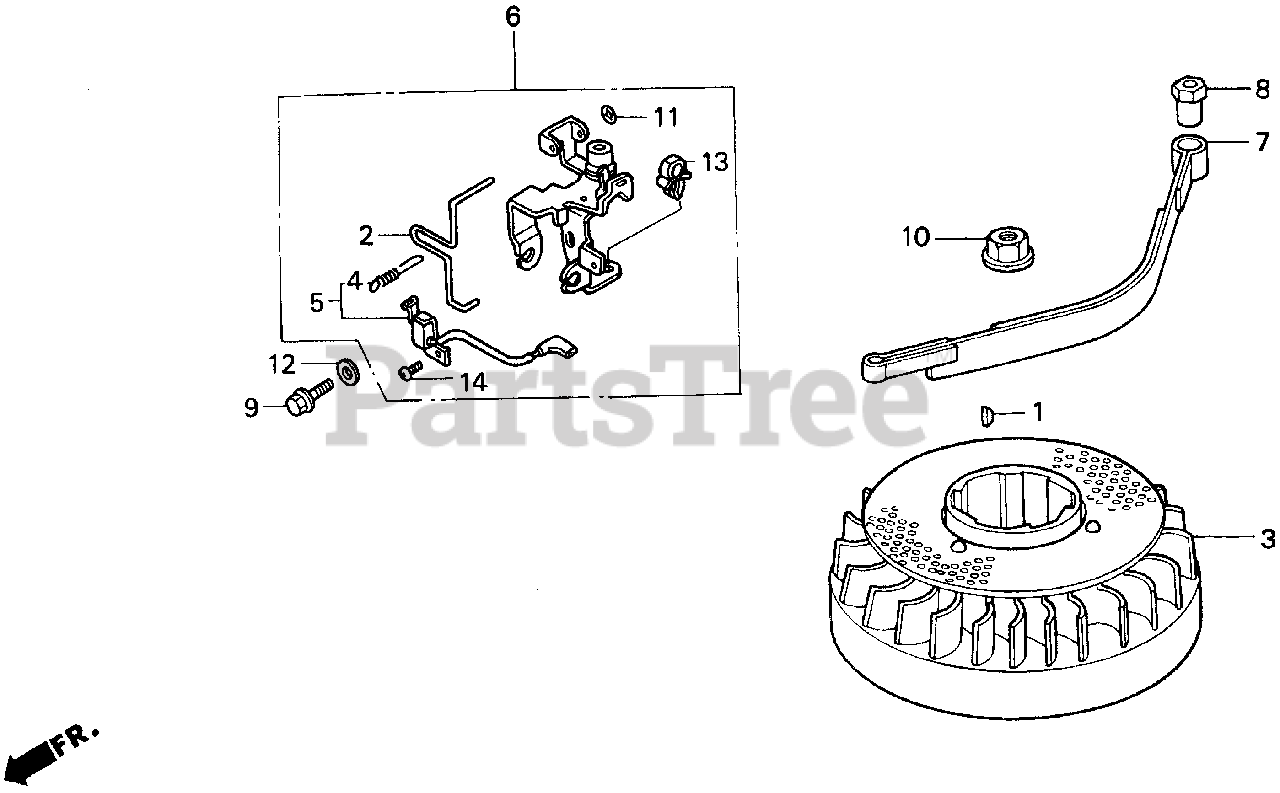

FLYWHEEL Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

$5.49

$

In Stock, only 4 left!

0

2

Honda 16566-ZG9-M90

ROD, GOVERNOR ARM RETURN

$0.99

$

Usually ships in 3-6 days

0

3

Honda 31105-ZG9-800

FLYWHEEL ASSY.

$

$

Not available

4

Honda 35129-ZG9-800

SPRING, SWITCH CONTROL

$5.49

$

Usually ships in 3-6 days

0

5

Honda 36100-ZG9-M91

SWITCH ASSY., ENGINE STOP (BRAKE)

$

$

Not available

6

Honda 75101-ZG9-M90

LEVER ASSY., BRAKE

$22.99

$

Usually ships in 3-6 days

0

7

Honda 75120-ZG9-305

SEE PART DETAILS - PRI; BRAKE

$41.99

$

Usually ships in 3-6 days

0

8

Honda 75123-ZG9-800

COLLAR, BRAKE SHAFT

$13.99

$

Usually ships in 3-6 days

0

9

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

10

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.99

$

In Stock, only 1 left!

0

11

Honda 90331-SB2-003

NUT, SPEED

$7.99

$

Usually ships in 3-6 days

0

12

Honda 90463-KRM-840

SEE PART DETAILS - PRI; WASHER, SEALING (6.2X12X1.2)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90660-ZA0-600

CLIP, ENGINE STOP SWITCH CORD (Honda Code 2081271).

$3.49

$

Usually ships in 3-6 days

0

14

Honda 93500-04006-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0
