HRM195 PA (MZBV) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZBV-6000001 - MZBV-6400000) CYLINDER HEAD Parts Diagram

19" Walk-Behind Mower, Made in USA

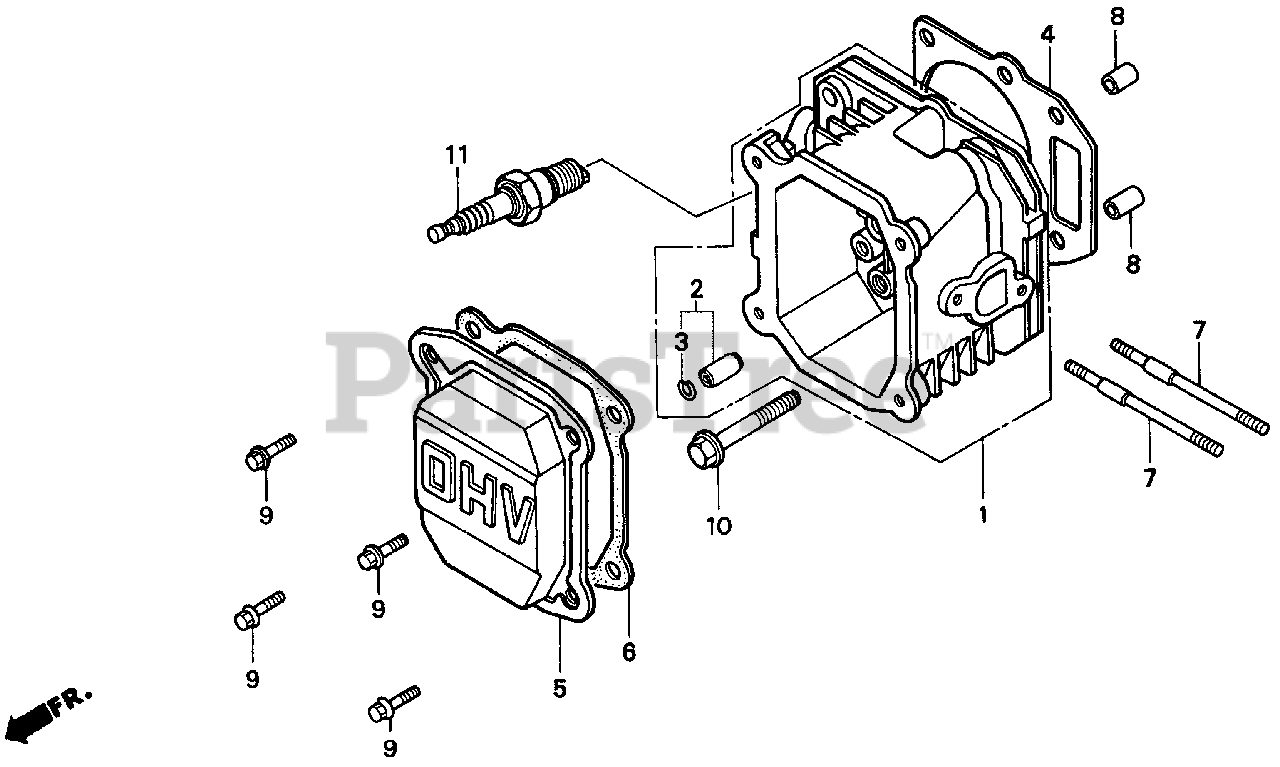

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZG9-P40

SEE PART DETAILS - SUP; CYLINDER HEAD (USA)
(Superseded to 12200-ZG9-P41)

$82.99

$

Usually ships in 3-6 days

0

1

Honda 12200-ZG9-P41

SEE PART DETAILS - PRI; CYLINDER HEAD (USA)

$82.99

$

Usually ships in 3-6 days

0

2

Honda 12205-ZE1-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 1899848).

Note: (Optional).

$10.99

$

In Stock, only 3 left!

0

3

Honda 12216-ZE5-300

CLIP, VALVE GUIDE Use from Engine SN 1231803.

$1.99

$

In Stock, Qty 18

0

4

Honda 12251-ZG9-000

GASKET, CYLINDER HEAD

$24.99

$

In Stock, only 1 left!

0

5

Honda 12311-ZG9-800

COVER, HEAD

$9.99

$

In Stock, only 2 left!

0

6

Honda 12391-ZG9-800

GASKET, HEAD COVER

$5.99

$

In Stock, only 1 left!

0

7

Honda 90013-ZG9-T00

BOLT, STUD (6X83)

$5.99

$

In Stock, only 4 left!

0

8

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

9

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 5

0

10

Honda 95701-08050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50) (Honda Code 2935740).

$3.49

$

In Stock, Qty 5

0

11

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK) (Honda Code 1521756).

Note: (Optional).

$3.49

$

In Stock, only 2 left!

0

11

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.49

$

In Stock, Qty 20+

0

11

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

Note: (Optional).

$3.49

$

In Stock, Qty 20+

0
