HRM195 PA (MZBV) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZBV-6000001 - MZBV-6400000) CUTTER HOUSING Parts Diagram

19" Walk-Behind Mower, Made in USA

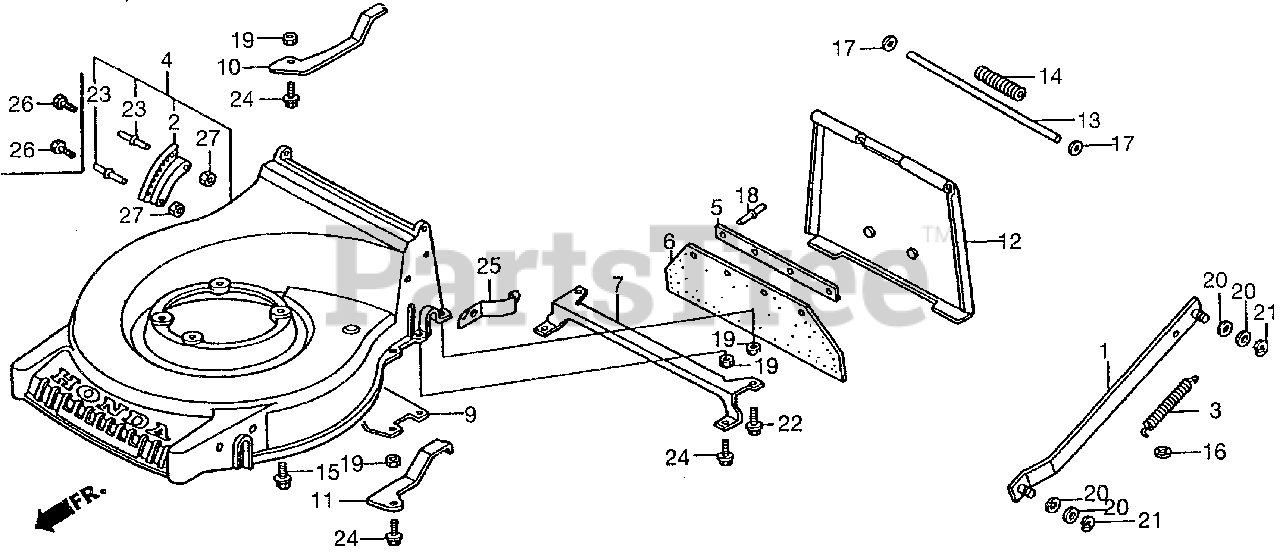

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 42631-VB4-680

ARM, ADJUSTER

$

$

Not available

2

Honda 42987-VB4-300

PANEL, HEIGHT ADJUSTING

$13.99

$

Usually ships in 3-6 days

0

3

Honda 42992-VB4-000

SPRING, BALANCER

$18.99

$

Usually ships in 3-6 days

0

4

Honda 76111-VB4-680ZD

HOUSING, CUTTER *NH355* (GRANITE GRAY)

$386.99

$

Usually ships in 3-6 days

0

5

Honda 76117-VB4-300

PLATE, SAFETY SHIELD

$

$

Not available

6

Honda 76118-VB4-300

SHIELD, SAFETY

$

$

Not available

7

Honda 76119-VB4-000

HOLDER, RR. SHAFT

$

$

Not available

9

Honda 76131-VB4-700

PLATE, SCROLL

$28.99

$

Usually ships in 3-6 days

0

10

Honda 76151-VB4-000

PLATE, R. GUIDE

$

$

Not available

11

Honda 76152-VB4-000

PLATE, L. GUIDE

$

$

Not available

12

Honda 76310-VB4-680

GUARD, DISCHARGE

$155.99

$

Usually ships in 3-6 days

0

13

Honda 76312-VB4-680

SHAFT, DISCHARGE GUARD

$17.99

$

Usually ships in 3-6 days

0

14

Honda 76314-VB4-000

SPRING, GUARD RETURN

$12.99

$

Usually ships in 3-6 days

0

15

Honda 90102-VA5-000

BOLT, ENGINE SETTING

$5.49

$

Usually ships in 3-6 days

0

16

Honda 90262-VB4-000

NUT, PUSH (9.5MM)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90407-952-300

WASHER, SPECIAL (6MM) (PUSH NUT)

$4.49

$

In Stock, only 2 left!

0

18

Honda 90851-VA9-000

RIVET, BLIND (4.8MM)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

19

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

$1.99

$

In Stock, Qty 20+

0

20

Honda 94102-10800

WASHER, PLAIN (10MM)

$4.99

$

In Stock, Qty 6

0

21

Honda 94540-07010

E-RING (7MM)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

23

Honda 90851-VA9-000

RIVET, BLIND (4.8MM)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 8

0

25

Honda 76288-VB4-700

PLATE, PLUG DISCHARGE

$

$

Currently unavailable

26

Honda 92301-05012-0A

BOLT, RECESSED (5X12)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0
