HRM195 PA (MZBV) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZBV-6000001 - MZBV-6400000) CARBURETOR Parts Diagram

19" Walk-Behind Mower, Made in USA

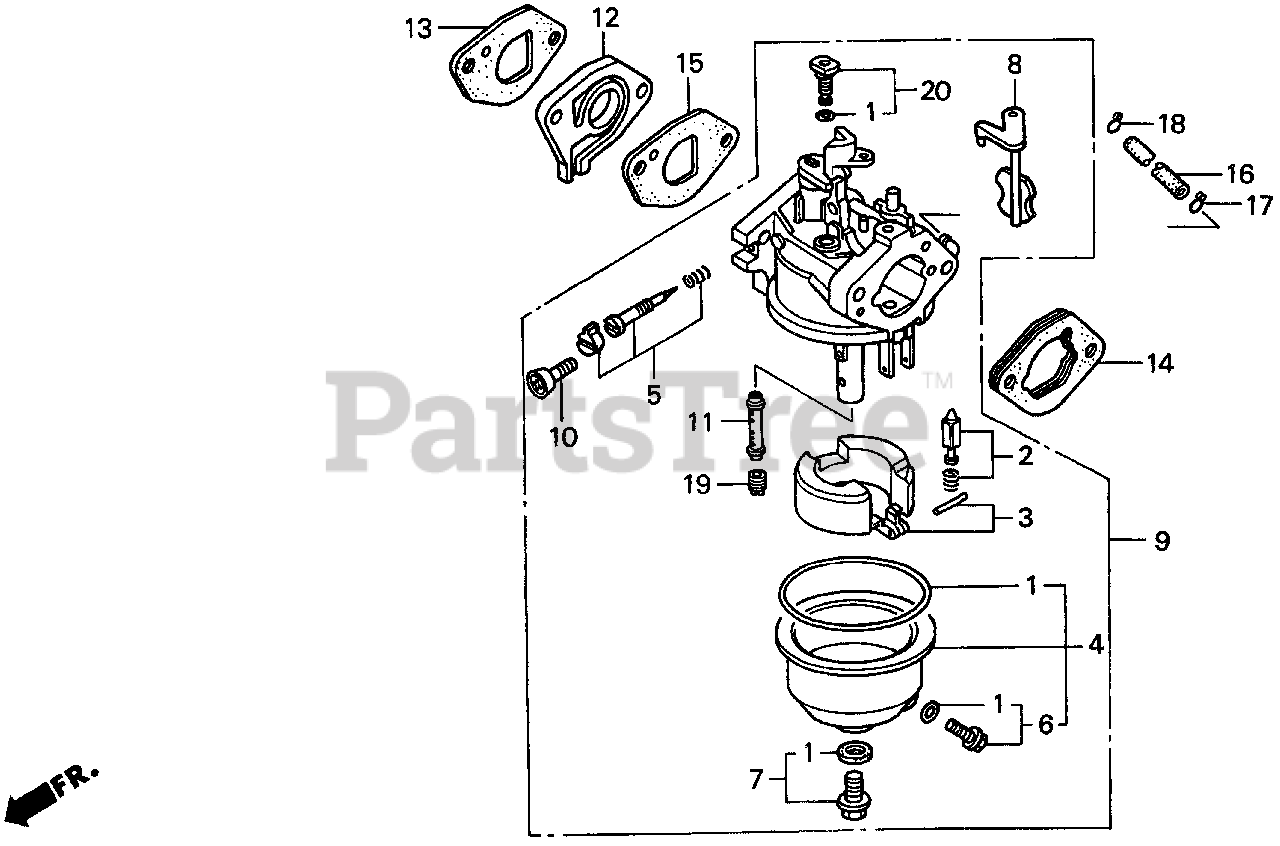

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZB1-015

GASKET SET (CARBURETOR NO.)

$18.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$28.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZE0-005

FLOAT SET (Honda Code 1441492).

$29.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (CARBURETOR NO.)

$37.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZH8-W01

SCREW SET (Honda Code 4212387).

$12.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 3 left!

0

8

Honda 16045-ZE6-005

SEE PART DETAILS - PRI; CHOKE SET (Honda Code 3412038).

$

$

Not available

9

Honda 16100-ZG9-M12

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE52B D)

$75.99

$

In Stock, only 2 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZG9-M11

NOZZLE, MAIN (CARBURETOR NO.)

$

$

Not available

12

Honda 16211-ZG9-000

INSULATOR, CARBURETOR

$10.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZG9-T00

GASKET, CARBURETOR (HPE)

$5.49

$

In Stock, only 2 left!

0

14

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2455640).

$7.99

$

In Stock, Qty 11

0

15

Honda 16221-ZG9-J60

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

15

Honda 16221-ZG9-T00

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

15

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

16

Honda 17523-ZG9-M00

TUBE, FUEL VALVE (170MM)

$14.99

$

In Stock, only 1 left!

0

17

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

18

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.49

$

In Stock, Qty 20+

0

19

Honda 99101-ZH8-0500

JET, MAIN (#50) Use from Engine SN BE52B B.

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

19

Honda 99101-ZH8-0520

SEE PART DETAILS - PRI; JET, MAIN (#52) (Honda Code 6128441).

Note: (Optional).

$9.49

$

In Stock, only 1 left!

0

19

Honda 99101-ZH8-0550

JET, MAIN (#55) (CARBURETOR NO.) Use up to Engine SN BE03A J.

$9.49

$

Usually ships in 3-6 days

0

20

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$22.99

$

In Stock, only 3 left!

0
