HRL 400 HD/CSA (UT-03757) - Homelite Generator Generator & Frame Parts Diagram

Generator

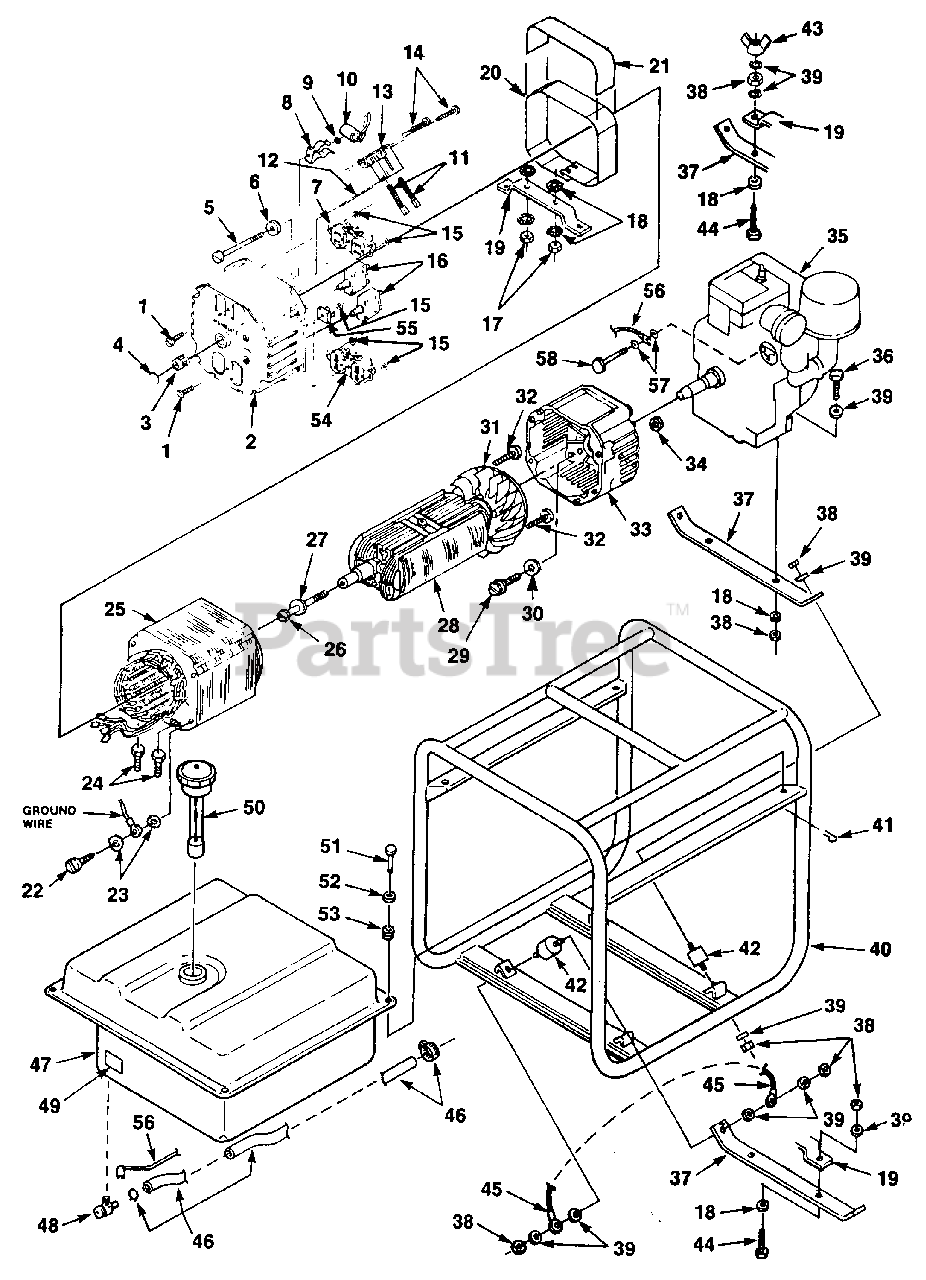

Generator & Frame Parts Diagram

  • Title
1

Homelite 80630

SCREW- Mach. Pan Hd.

$

$

Not available

2

Homelite 023625A

BRUSH HEAD
(Superseded to UP06919)

$

$

Not available

3

Homelite 03044

BEARING- Needle

$

$

Not available

4

Homelite 02438

PLUG- Expansion

$

$

Not available

5

Homelite 4885306

BOLT- Stator
(Superseded to UP03433)

$

$

Not available

6

Homelite 84124

WASHER- Flat
(Superseded to UP03418)

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 498031

RECEPTACLE- Duplex (Nema 5-15R)

$

$

Currently unavailable

8

Homelite 02435

CLIP- Spring

$

$

Not available

9

Homelite 02436

WASHER- Shaft retention

$

$

Not available

10

Homelite A02860

CAPACITOR w/Lead

$

$

Currently unavailable

Homelite A03035

BRUSH & RETAINER KIT
(Superseded to UP03736)

$

$

Not available

11

Homelite 02664

BRUSH
(Superseded to UP03736)

$

$

Not available

12

Homelite 02857

PIN- Retainer

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 02365

HOLDER- Brush
(Superseded to UP03449)

$36.99

$

Usually ships in 3-7 days

0

14

$

$

Not available

15

Homelite 02437

WASHER- Shaft retention

$5.99

$

Usually ships in 3-7 days

0

16

Homelite 01649

BREAKER- Circuit (15 amp.)
(Superseded to UP06951)

$

$

Not available

17

Homelite 81162

NUT- Hex (5/16-18)

$

$

Not available

18

Homelite 83033

WASHER- Lock (Int./Ext.)
(Superseded to 83081)

$

$

Not available

19

Homelite 028451

BRACKET- Gen Mtg

$

$

Not available

20

Homelite 028781

WRAPPER- Stator

$

$

Currently unavailable

21

Homelite 02982

DECAL- Warning

$

$

Currently unavailable

22

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 83121

WASHER- Lock (Int / Ext )

$

$

Not available

24

Homelite 80083

SCREW (5/16 x 3/4")

$

$

Not available

25

Homelite A02796S

STATOR & CORE

$

$

Currently unavailable

26

Homelite 4885210

BOLT- Rotor

$

$

Currently unavailable

27

Homelite 03433

WASHER- Lock (5/16")
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

$

$

Not available

29

Homelite 80187

SCREW- Cap hex hd
(Superseded to PS80187)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 83078

WASHER- Lock (Int./Ext.)

$

$

Not available

31

Homelite A04013

FAN ASSEMBLY
(Superseded to UP03737)

$

$

Not available

32

Homelite 82526

SCREW- Pan hd

$

$

Not available

33

Homelite 020266

END BELL
(Superseded to UP06695)

$

$

Not available

34

Homelite 81267

NUT- Hex

$

$

Not available

35

ENGINE

Note: For engine replacement parts locate the engine brand name, model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

36

Homelite 80197

SCREW- Cap hex ho

$

$

Not available

37

Homelite 49265

SUPPORT- Engine
(Superseded to UP03535)

$30.99

$

Usually ships in 3-7 days

0

38

Homelite 81162

NUT- Hex

$

$

Not available

39

Homelite 83081

WASHER- Lock (Int.)

$

$

Not available

40

Homelite A033211

ROLL CAGE
(Superseded to A049061)

$

$

Not available

41

Homelite 49412

PIN- Cotter

$

$

Not available

42

Homelite 49367

ISOLATOR- Vibration
(Superseded to UP03483)

$

$

Not available

43

Homelite 81015

NUT- Wing

$

$

Not available

44

Homelite 80088

SCREW- Mach. hex hd

$

$

Not available

45

Homelite A49399

GROUND STRAP

$

$

Currently unavailable

46

Homelite A49306

FUEL LINE ASSEMBLY
(Superseded to UP03517)

$

$

Not available

47

Homelite 489312

FUEL TANK

$

$

Currently unavailable

48

Homelite 49005

VALVE- Fuel

$

$

Not available

49

Homelite 49340

DECAL- Fuel valve
(Superseded to UP07235)

$

$

Not available

50

Homelite 49179

CAP- Fuel

$

$

Not available

51

Homelite 49329

PIN- Clevis

$

$

Not available

52

Homelite 84006

WASHER- Flat

$

$

Not available

53

Homelite 49351

GROMMET- Isolator

$

$

Not available

54

Homelite 03613

RECEPTACLE- 240 V (Nema 5-15R)

$

$

Currently unavailable

55

Homelite 95672

RECTIFIER

$37.99

$

Usually ships in 3-7 days

0

56

Homelite A03322

GROUND STRAP

$

$

Currently unavailable

57

Homelite 83070

WASHER- Lock

$

$

Not available

58

$

$

Not available
