HRC7113 TXA (MZCK) - Honda Walk-Behind Mower, Made in USA (SN: MZCK-3000001 - MZCK-9999999) RECOIL STARTER Parts Diagram

Walk-Behind Mower, Made in USA

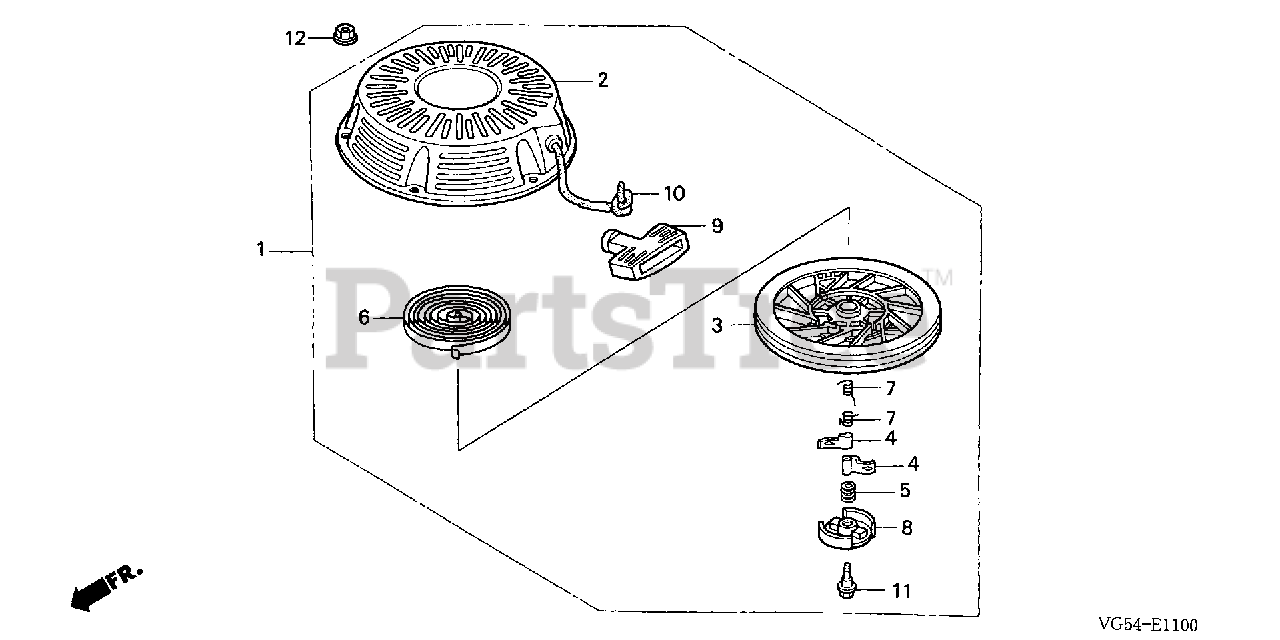

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE3-W01ZA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$

$

Currently unavailable

1

Honda 28400-ZE3-W01ZP

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-ZE3-W02ZP)

$123.99

$

In Stock, only 3 left!

0

2

Honda 28410-ZE3-W01ZA

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 28410-ZE3-W01ZP

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

$130.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

$44.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

In Stock, only 2 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

$7.99

$

In Stock, Qty 11

0

10

Honda 28462-ZE3-W01

ROPE, RECOIL STARTER (#6X64") (N/A: USE P/N 08560-ZG921-11)

$14.99

$

In Stock, Qty 6

0

11

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, Qty 10

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
