HRC7113 TXA (MZCK) - Honda Walk-Behind Mower, Made in USA (SN: MZCK-3000001 - MZCK-9999999) DRIVE BELT Parts Diagram

Walk-Behind Mower, Made in USA

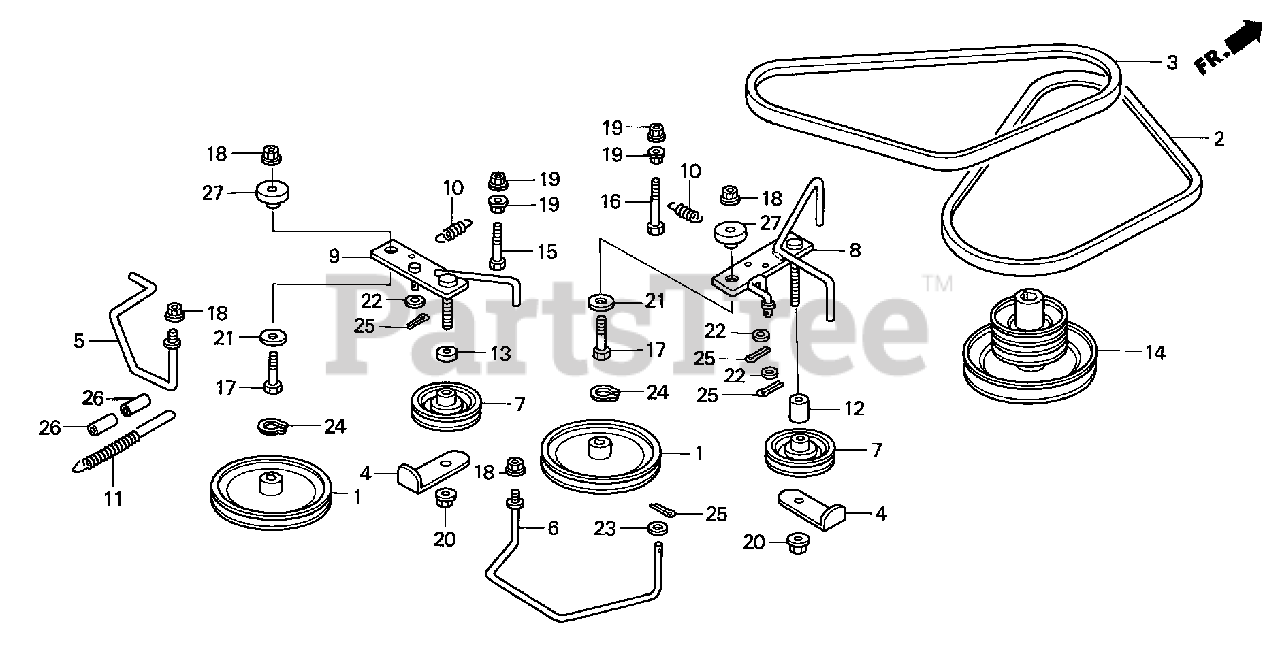

DRIVE BELT Parts Diagram

  • Title

1

Honda 22420-VG5-000

PULLEY, TRANSMISSION

$28.99

$

Usually ships in 3-6 days

0

2

Honda 22431-VG5-000

V-BELT, R. TRANSMISSION

$

$

Not available

3

Honda 22432-VG5-000

V-BELT, L. TRANSMISSION

$25.99

$

Usually ships in 3-6 days

0

4

Honda 22443-VG5-000

STOPPER C, BELT

$7.99

$

Usually ships in 3-6 days

0

5

Honda 22444-VG5-000

STOPPER D, BELT

$8.99

$

Usually ships in 3-6 days

0

6

Honda 22445-VG5-000

STOPPER E, BELT

$131.99

$

Usually ships in 3-6 days

0

7

Honda 22465-VG5-000

ROLLER, TENSION

$

$

Not available

8

Honda 22520-VG5-000

ARM, R. TENSIONER

$95.99

$

Usually ships in 3-6 days

0

9

Honda 22525-VG5-000

ARM, L. TENSIONER

$59.99

$

Usually ships in 3-6 days

0

10

Honda 22529-VG5-000

SPRING, TENSIONER RETURN

$59.99

$

Usually ships in 3-6 days

0

11

Honda 22531-VG5-010

SEE PART DETAILS - PRI; SPRING, BELT TENSIONER

$7.99

$

Usually ships in 3-6 days

0

12

Honda 22535-VG5-000

SPACER, R. IDLER

$4.99

$

Usually ships in 3-6 days

0

13

Honda 22536-VG5-000

SPACER, L. IDLER

$1.99

$

Usually ships in 3-6 days

0

14

Honda 75170-VG5-000

PULLEY, ENGINE

$161.99

$

Usually ships in 3-6 days

0

15

Honda 90112-VG5-000

BOLT, HEX. (1/4-20X1 1/4")

$0.99

$

Usually ships in 3-6 days

0

16

Honda 90114-VG5-000

BOLT, HEX. (1/4-20X1 3/4")

$0.99

$

Usually ships in 3-6 days

0

17

Honda 90132-VG5-000

BOLT, HEX. (5/16-18-1 1/4")

$0.99

$

Usually ships in 3-6 days

0

18

Honda 90361-VG5-000

NUT, WHIZ-LOCK (1/4"-20)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 90363-VG5-000

NUT, WHIZ-LOCK (5/16"-18)

$0.99

$

Usually ships in 3-6 days

0

20

Honda 90365-VG5-000

NUT, WHIZ-LOCK (3/8"-16)

$0.99

$

In Stock, Qty 9

0

21

Honda 90502-VG5-000

WASHER, FLAT (5/16-1 1/8X0.063")

$1.49

$

Usually ships in 3-6 days

0

22

Honda 90510-VG5-000

WASHER, FLAT (1/4")

$0.99

$

Usually ships in 3-6 days

0

23

Honda 90511-VG5-000

WASHER, FLAT (5/16")

$0.99

$

Usually ships in 3-6 days

0

24

Honda 90653-772-000

CIRCLIP, EX. (5/8")

$0.99

$

In Stock, Qty 6

0

25

Honda 90766-VG5-000

SEE PART DETAILS - SUP; PIN, COTTER (3/32" X 3/4")

$

$

Currently unavailable

26

Honda 91552-VG5-000

COLLAR, DRIVE SPRING

$5.99

$

Usually ships in 3-6 days

0

27

Honda 91576-VG5-000

COLLAR, TENSIONER ARM

$15.99

$

Usually ships in 3-6 days

0
