HRC7020 ZMA (CPH3) - Honda Walk-Behind Mower, Made in Japan (SN: CPH3-1000001 - CPH3-9999999) STARTER MOTOR Parts Diagram

Walk-Behind Mower, Made in Japan

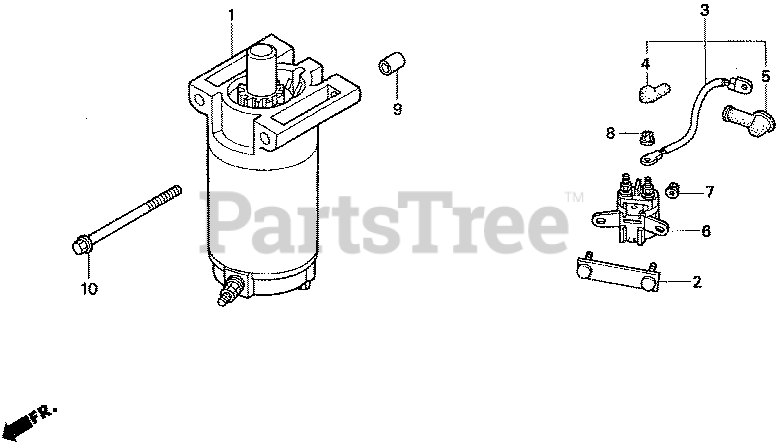

STARTER MOTOR Parts Diagram

  • Title
1

Honda 31200-ZJ4-003

MOTOR ASSY., STARTER

$

$

Not available

2

Honda 31243-ZJ1-800

BRACKET, STARTER MAGNETIC SETTING

$16.99

$

Usually ships in 3-6 days

0

3

Honda 32402-ZJ1-810

CABLE, MAGNETIC SWITCH

$

$

Not available

4

Honda 32411-KB9-930

COVER A, MAGNETIC SWITCH

$5.49

$

Usually ships in 3-6 days

0

5

Honda 32411-402-000

COVER, STARTER MOTOR TERMINAL

$4.49

$

Usually ships in 3-6 days

0

6

Honda 35850-ZJ1-811

SWITCH ASSY., STARTER MAGNETIC

$100.99

$

Usually ships in 3-6 days

0

7

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

8

Honda 94070-06080

SEE PART DETAILS - PRI; NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

9

Honda 94301-10120

SEE PART DETAILS - PRI; PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 95701-08110-00

BOLT, FLANGE (8X110)

$3.49

$

Usually ships in 3-6 days

0
