HRC7020 ZMA (CPH3) - Honda Walk-Behind Mower, Made in Japan (SN: CPH3-1000001 - CPH3-9999999) PISTON + CONNECTING ROD Parts Diagram

Walk-Behind Mower, Made in Japan

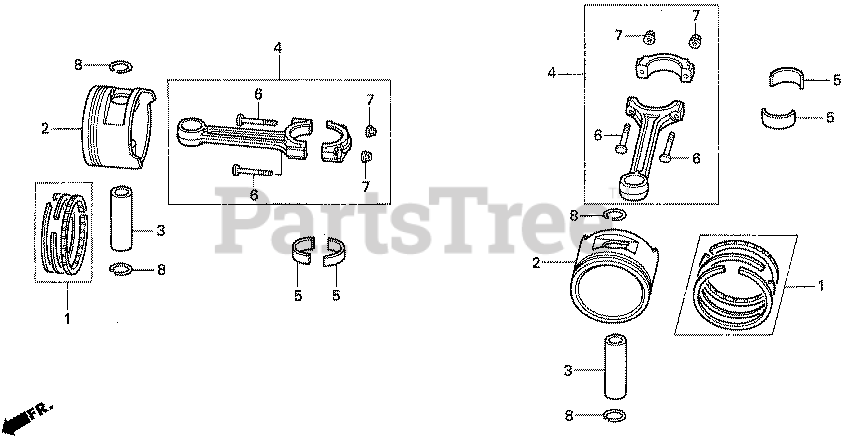

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-ZE8-601

RING SET, PISTON (STD)

$34.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZE8-601

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$53.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE8-601

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$53.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE8-601

RING SET, PISTON (0.75)

$

$

Not available

2

Honda 13101-ZJ1-000

PISTON

$

$

Not available

2

Honda 13102-ZJ1-000

PISTON (OS 0.25)

$

$

Not available

2

Honda 13103-ZJ1-000

PISTON (OS 0.50)

$

$

Not available

2

Honda 13104-ZJ1-000

PISTON (0.75)

$

$

Not available

3

Honda 13111-ZJ1-000

SEE PART DETAILS - SUP; PIN, PISTON
(Superseded to 13111-MZ0-000)

$18.99

$

Usually ships in 3-6 days

0

4

Honda 13210-ZJ1-000

ROD SET, CONNECTING

$

$

Not available

5

Honda 13211-ZJ1-003

BEARING A, CONNECTING ROD (BLUE)

$

$

Not available

5

Honda 13212-ZJ1-003

BEARING B, CONNECTING ROD (BLACK)

$

$

Not available

5

Honda 13213-ZJ1-003

BEARING C, CONNECTING ROD (BROWN)

$

$

Not available

5

Honda 13214-ZJ1-003

BEARING D, CONNECTING ROD (GREEN)

$

$

Not available

5

Honda 13215-ZJ1-003

BEARING E, CONNECTING ROD (YELLOW)

$

$

Not available

5

Honda 13216-ZJ1-003

BEARING F, CONNECTING ROD (PINK)

$

$

Not available

5

Honda 13217-ZJ1-003

BEARING G, CONNECTING ROD (RED)

$

$

Not available

6

Honda 13213-ML0-000

BOLT, CONNECTING ROD

$

$

Not available

7

Honda 13215-KM3-000

NUT, CONNECTING ROD

$4.99

$

Usually ships in 3-6 days

0

8

Honda 94601-18000

CLIP, PISTON PIN (18MM)

$1.49

$

Usually ships in 3-6 days

0
