HRC7020 ZMA (CPH3) - Honda Walk-Behind Mower, Made in Japan (SN: CPH3-1000001 - CPH3-9999999) OIL PAN Parts Diagram

Walk-Behind Mower, Made in Japan

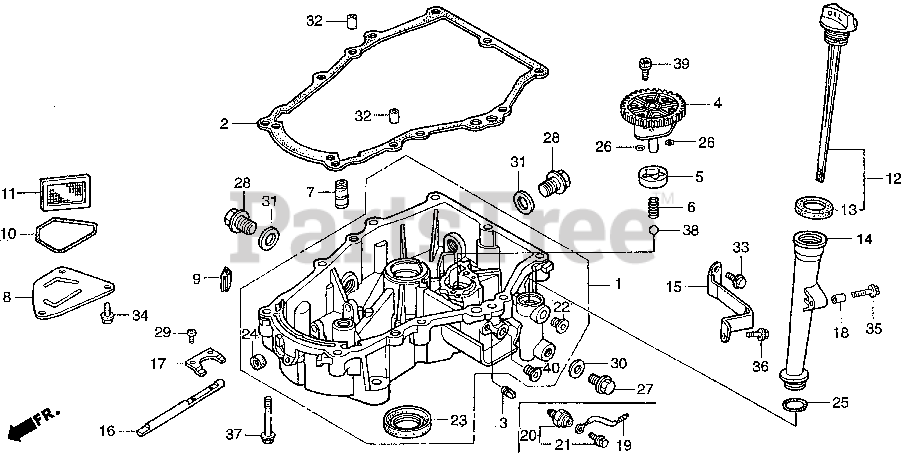

OIL PAN Parts Diagram

  • Title

1

Honda 11300-ZJ4-000

PAN ASSY., OIL

$782.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZJ1-000

GASKET, CASE COVER

$

$

Not available

3

Honda 12105-ZA0-701

BOLT, SEALING

$9.99

$

Usually ships in 3-6 days

0

4

Honda 15120-ZJ1-000

SEE PART DETAILS - SUP; COVER ASSY., OIL PUMP (TWO BOLTS)
(Superseded to 15120-ZJ1-010)

$76.99

$

In Stock, only 1 left!

0

5

Honda 15124-ZJ1-003

ROTOR, OIL PUMP (OUTER)

$27.99

$

Usually ships in 3-6 days

0

6

Honda 15232-ZJ1-000

SPRING, RELIEF VALVE

$3.49

$

In Stock, only 1 left!

0

7

Honda 15235-ZJ4-000

SHAFT, OIL CONTROL

$13.99

$

Usually ships in 3-6 days

0

8

Honda 15334-ZJ4-000

PLATE, OIL FILTER

$17.99

$

Usually ships in 3-6 days

0

9

Honda 15335-ZE7-000

RUBBER, OIL RETURN

$4.49

$

Usually ships in 3-6 days

0

10

Honda 15339-ZJ4-000

O-RING, OIL PLATE

$10.99

$

In Stock, only 4 left!

0

11

Honda 15427-ZG8-000

SCREEN, OIL FILTER

$14.99

$

In Stock, only 2 left!

0

12

Honda 15600-ZJ4-000

CAP ASSY., OIL FILLER

$29.99

$

In Stock, only 1 left!

0

13

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

14

Honda 15630-ZE8-000

EXTENSION, OIL FILLER
(Superseded to 15630-Z5N-800)

$6.49

$

In Stock, only 1 left!

0

15

Honda 15646-ZJ4-000

STAY, OIL FILLER EXTENSION

$

$

Not available

16

Honda 16541-ZJ1-000

SHAFT, GOVERNOR ARM

$

$

Not available

17

Honda 16542-ZJ1-000

FORK, GOVERNOR

$14.99

$

Usually ships in 3-6 days

0

18

Honda 17240-ZE6-000

COLLAR, EXTENSION

$4.99

$

In Stock, only 1 left!

0

19

Honda 37201-ZJ4-000

WIRE, OIL PRESSURE SWITCH

$

$

Not available

20

Honda 37240-ZG3-E01

SWITCH, OIL PRESSURE

$47.99

$

Usually ships in 3-6 days

0

21

Honda 90002-ZG5-004

SCREW-WASHER (4X8)

$9.99

$

Usually ships in 3-6 days

0

22

Honda 90855-921-300

PLUG, SEALING (10MM)

$3.99

$

In Stock, only 1 left!

0

23

Honda 91201-ZJ1-003

OIL SEAL (38X58X11)

$13.99

$

In Stock, only 2 left!

0

24

Honda 91202-HC0-003

OIL SEAL (10X20X5)

$5.49

$

Usually ships in 3-6 days

0

25

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.5X2.2)

$2.49

$

In Stock, Qty 12

0

26

Honda 91302-MB6-830

O-RING (13X3.0)

$2.99

$

In Stock, only 2 left!

0

27

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

$5.99

$

Usually ships in 3-6 days

0

28

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

29

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

30

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

31

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 3 left!

0

32

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

33

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

34

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 8

0

35

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0

36

Honda 95701-08012-00

BOLT, FLANGE (8X12)

$1.49

$

In Stock, only 2 left!

0

37

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0

38

Honda 96211-12000

BALL, STEEL (#12) (3/8)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 96600-06016-00

BOLT, SOCKET (6X16)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 90007-ZG8-300

BOLT, SEALING

$9.99

$

Usually ships in 3-6 days

0
