HRC7020 ZMA (CPH3) - Honda Walk-Behind Mower, Made in Japan (SN: CPH3-1000001 - CPH3-9999999) FUEL TANK + BRACKET Parts Diagram

Walk-Behind Mower, Made in Japan

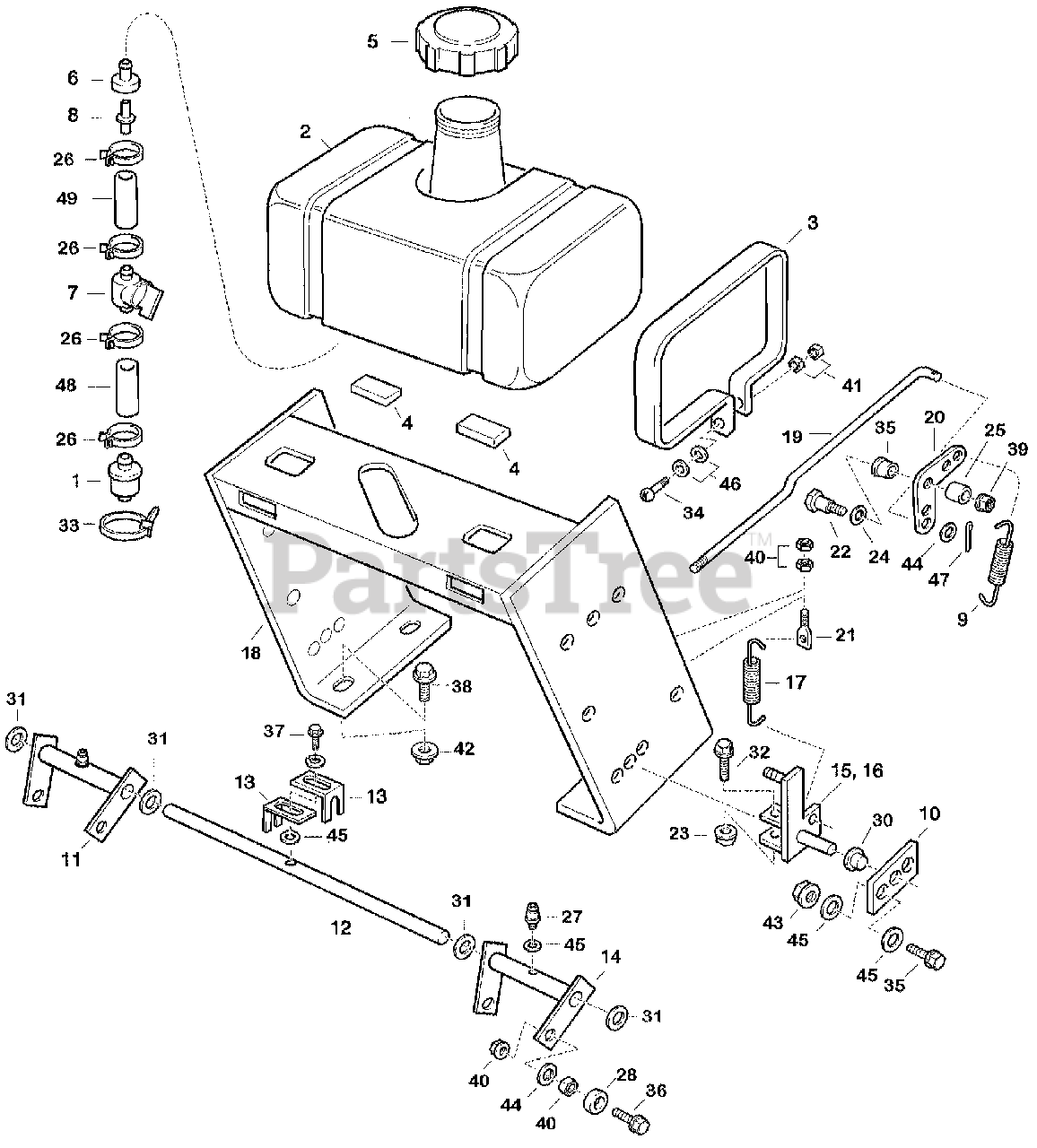

FUEL TANK + BRACKET Parts Diagram

  • Title

1

Honda 16910-ZE8-015

SEE PART DETAILS - PRI; FILTER, FUEL

$15.99

$

In Stock, only 4 left!

0

2

Honda 17511-VE4-003

TANK, FUEL (4.2)

$124.99

$

Usually ships in 3-6 days

0

3

Honda 17517-VE4-003

STRAP, FUEL TANK

$14.99

$

Usually ships in 3-6 days

0

4

Honda 17532-VE4-003

PAD, FUEL TANK

$4.49

$

Usually ships in 3-6 days

0

5

Honda 17620-VE4-003

CAP, FUEL TANK

$

$

Not available

6

Honda 17713-VE4-003

JOINT, CONNECTOR FUEL

$5.99

$

Usually ships in 3-6 days

0

7

Honda 17715-VE6-000

VALVE, FUEL SHUT-OFF

$

$

Not available

8

Honda 17716-VE4-003

PIPE, FUEL

$

$

Not available

9

Honda 22567-VE4-010

SEE PART DETAILS - PRI; SPRING, TENSIONER

$13.99

$

Usually ships in 3-6 days

0

10

Honda 24648-VE4-000

SUPPORT, PUMP SHAFT

$30.99

$

Usually ships in 3-6 days

0

11

Honda 24650-VE4-000

ARM, R. SPEED STOP

$38.99

$

Usually ships in 3-6 days

0

12

Honda 24656-VE4-000

SHAFT, CROSS

$26.99

$

Usually ships in 3-6 days

0

13

Honda 24658-VE4-000

SPACER, CROSS SHAFT

$6.49

$

Usually ships in 3-6 days

0

14

Honda 24660-VE4-000

ARM, L. SPEED STOP

$

$

Not available

15

Honda 24670-VE4-010

ARM, R. PUMP

$78.99

$

Usually ships in 3-6 days

0

16

Honda 24680-VE4-010

ARM, L. PUMP

$78.99

$

Usually ships in 3-6 days

0

17

Honda 24689-VE4-000

SEE PART DETAILS - PRI; SPRING, PUMP ARM

$120.99

$

Usually ships in 3-6 days

0

18

Honda 53130-VE4-000

SUPPORT, HANDLE

$241.99

$

Usually ships in 3-6 days

0

19

Honda 75278-VE6-000

ROD B, P.T.O.

$25.99

$

Usually ships in 3-6 days

0

20

Honda 75279-VE4-000

BELLCRANK (3")

$34.99

$

Usually ships in 3-6 days

0

21

Honda 90101-VE4-000

BOLT, SPRING ADJUSTER

$3.99

$

Usually ships in 3-6 days

0

22

Honda 90118-VE4-003

BOLT, SHOULDER (3/8"-16)

$9.49

$

Usually ships in 3-6 days

0

23

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

24

Honda 90505-VE4-003

WASHER, BELLEVILLE (1/2")

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90517-VE4-003

SPACER (1/2")

$1.99

$

Usually ships in 3-6 days

0

26

Honda 90653-VE4-003

CLAMP, FUEL LINE

$

$

Not available

27

Honda 90953-VE4-003

NIPPLE, GREASE

$2.99

$

Usually ships in 3-6 days

0

28

Honda 91052-VE4-000

BEARING, PUMP STOP

$14.99

$

Usually ships in 3-6 days

0

29

Honda 91560-VE4-003

BUSHING, SNAP

$4.49

$

Usually ships in 3-6 days

0

30

Honda 91564-VE4-003

BUSHING, PUMP ARM

$2.99

$

Usually ships in 3-6 days

0

31

Honda 91567-VE4-003

BUSHING (5/8")

$1.99

$

Usually ships in 3-6 days

0

32

Honda 92101-05025-0A

BOLT, HEX. (5X25)

$1.99

$

Usually ships in 3-6 days

0
