HRC7020 ZMA (CPH3) - Honda Walk-Behind Mower, Made in Japan (SN: CPH3-1000001 - CPH3-9999999) CYLINDER Parts Diagram

Walk-Behind Mower, Made in Japan

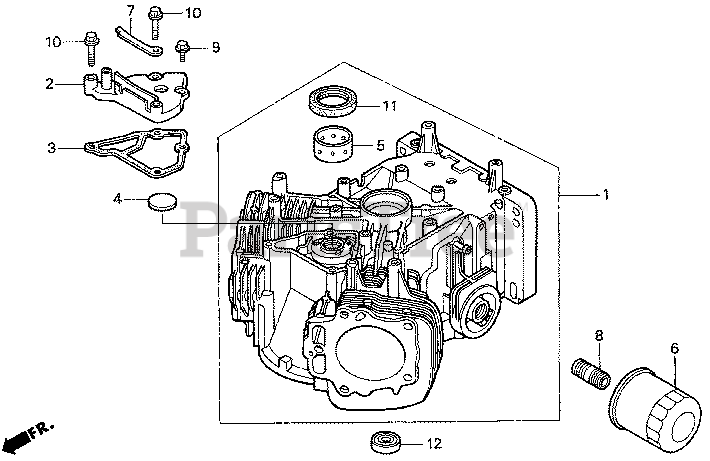

CYLINDER Parts Diagram

  • Title

1

Honda 120A0-ZJ4-000

CYLINDER ASSY.

$

$

Not available

2

Honda 12356-ZJ1-000

COVER, BREATHER

$31.99

$

Usually ships in 3-6 days

0

3

Honda 12358-ZJ1-000

GASKET, BREATHER COVER

$11.99

$

In Stock, only 1 left!

0

4

Honda 12372-ZE2-300

VALVE, BREATHER

$3.99

$

In Stock, Qty 5

0

5

Honda 13321-ZJ1-000

BEARING A, MAIN (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

$

$

Not available

5

Honda 13322-ZJ1-000

BEARING B, MAIN (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

$

$

Not available

5

Honda 13323-ZJ1-000

BEARING C, MAIN (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)

$

$

Not available

6

Honda 15400-PLM-A01PE

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$13.99

$

In Stock, Qty 16

0

6

Honda 15400-PR3-004

SEE PART DETAILS - SUP; FILTER, OIL (TOYO) (SOLD IN MULTIPLES OF 30)
(Superseded to 15400-PT7-005)

$12.99

$

Usually ships in 3-6 days

0

6

Honda 15400-P0H-305PE

SEE PART DETAILS - SUP; FILTER, OIL (SOLD INDIVIDUALLY)

$

$

Not available

6

Honda 15400-ZJ1-004

SEE PART DETAILS - SUP; FILTER, OIL (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$13.99

$

In Stock, Qty 16

0

7

Honda 31511-ZJ1-000

CLAMP, WIRE

$4.49

$

Usually ships in 3-6 days

0

8

Honda 90018-PN3-000

HOLDER, OIL FILTER

$9.99

$

In Stock, only 1 left!

0

9

Honda 90029-888-000

BOLT, FLANGE (6X16)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90031-ZE1-000

BOLT, FLANGE (6X32)

$3.99

$

In Stock, only 2 left!

0

11

Honda 91201-ZJ1-003

OIL SEAL (38X58X11)

$12.99

$

In Stock, only 2 left!

0

12

Honda 96140-60030-10

BEARING, RADIAL BALL (6003)

$19.99

$

Usually ships in 3-6 days

0
