HRC7018 ZXA (CPH2) - Honda Walk-Behind Mower, Made in Japan (SN: CPH2-1000001 - CPH2-9999999) REAR WHEEL + AXLE Parts Diagram

Walk-Behind Mower, Made in Japan

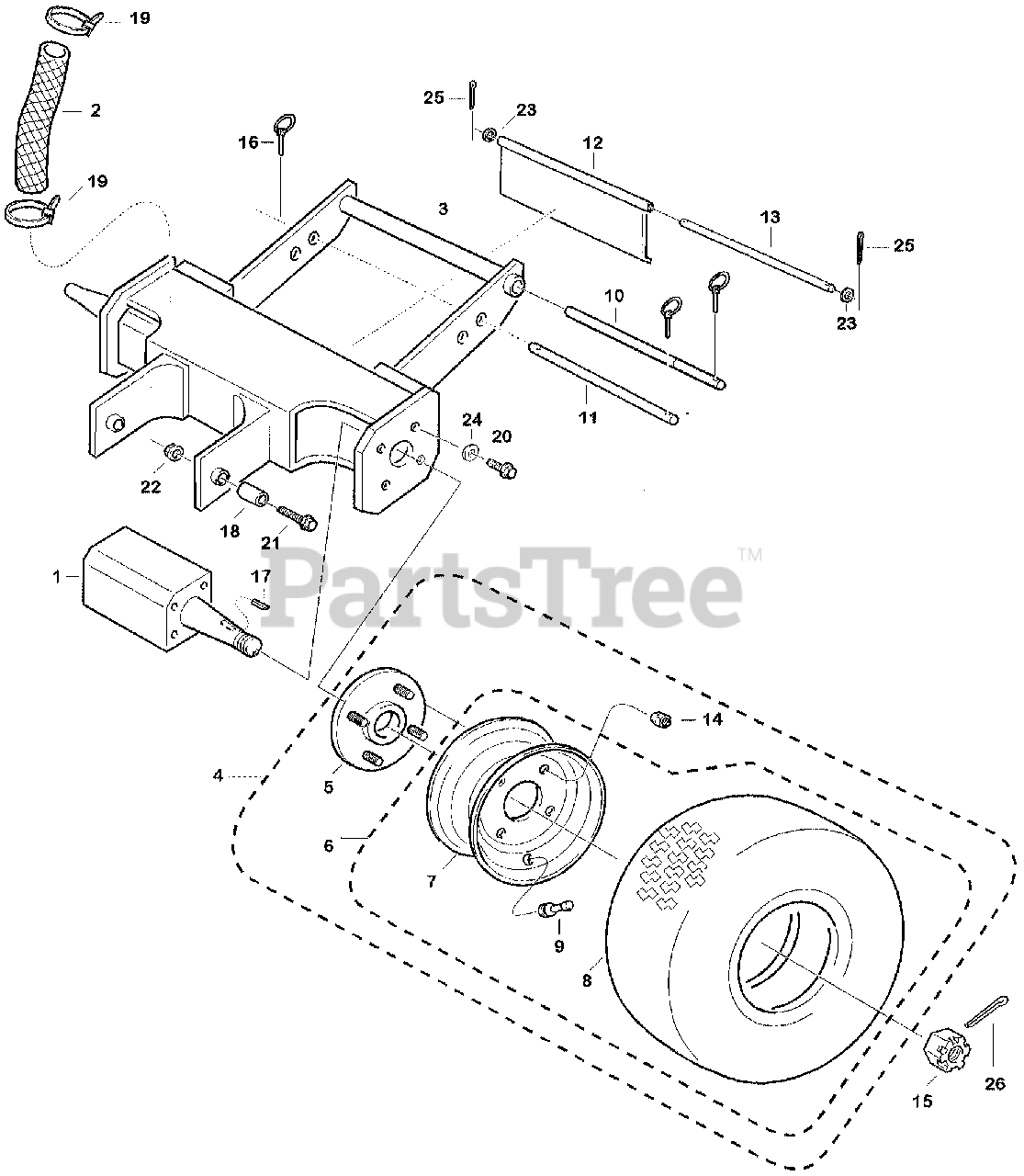

REAR WHEEL + AXLE Parts Diagram

  • Title

1

Honda 25400-VE4-004

MOTOR ASSY., HYDRAULIC

$1489.99

$

Usually ships in 3-6 days

0

2

Honda 25617-VE4-003

COVER, HOSE

$15.99

$

Usually ships in 3-6 days

0

3

Honda 42110-VE6-000

AXLE

$

$

Currently unavailable

4

Honda 42600-VE4-013

SEE PART DETAILS - PRI; WHEEL ASSY., TRACTION

$225.99

$

Usually ships in 3-6 days

0

5

Honda 42610-VE4-000

SEE PART DETAILS - PRI; HUB, WHEEL
(Superseded to 42600-VE4-013)

$225.99

$

Usually ships in 3-6 days

0

6

Honda 42700-VE4-023

SEE PART DETAILS - PRI; WHEEL ASSY., RR.

$

$

Not available

7

Honda 42700-VE4-023

SEE PART DETAILS - PRI; WHEEL, RR.

$

$

Not available

8

Honda 42751-VE4-013

SEE PART DETAILS - SUP; TIRE, RR.

$

$

Currently unavailable

9

Honda 42753-VE4-003

VALVE, RIM

$9.99

$

Usually ships in 3-6 days

0

10

Honda 42962-VE4-000

BAR, HEIGHT

$24.99

$

Usually ships in 3-6 days

0

11

Honda 42965-VE4-000

SHAFT, HEIGHT

$

$

Currently unavailable

12

Honda 76118-VE6-000

SHIELD, RR.

$

$

Not available

13

Honda 76119-VE6-000

ROD, RR. SHIELD

$16.99

$

Usually ships in 3-6 days

0

14

Honda 90309-VE4-003

LUG NUT, HEX. (1/2"-20)

$

$

Not available

15

Honda 90329-VE4-000

NUT, STRAIGHT SLOT (3/4"-16)

$13.99

$

Usually ships in 3-6 days

0

16

Honda 90756-VE4-003

QUICK CLIP

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90770-VE4-000

KEY, WOODRUFF

$

$

Currently unavailable

18

Honda 91565-VE4-003

BUSHING, AXLE

$24.99

$

Usually ships in 3-6 days

0
