HRC7018 ZXA (CPH2) - Honda Walk-Behind Mower, Made in Japan (SN: CPH2-1000001 - CPH2-9999999) ELECTRICAL SYSTEM Parts Diagram
Walk-Behind Mower, Made in Japan

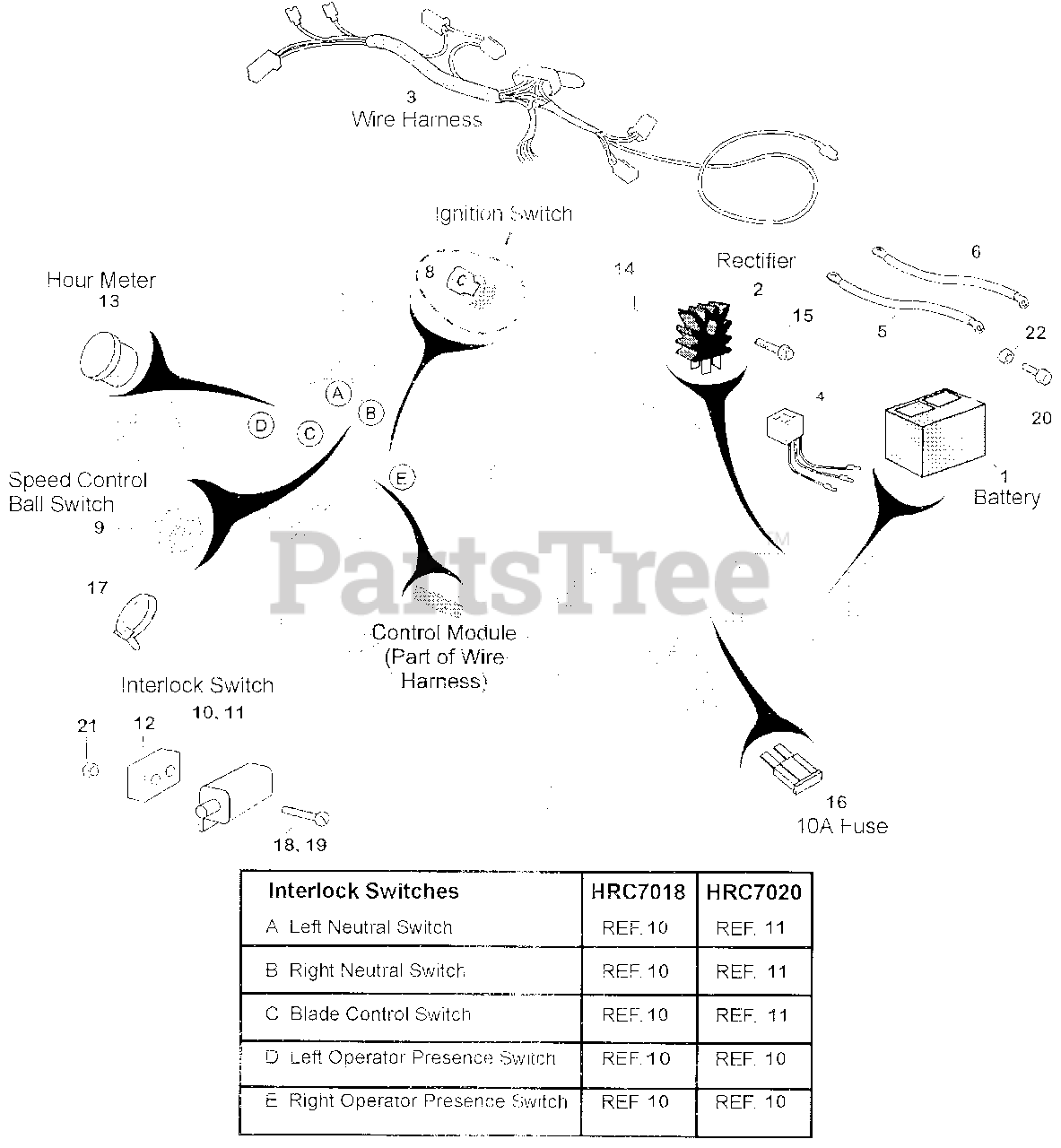

ELECTRICAL SYSTEM Parts Diagram
Honda 32170-VE6-000
WIRE HARNESS ASSY.
$257.99
$
Usually ships in 3-6 days
Honda 35100-VE4-003
SWITCH ASSY., COMBINATION
$36.99
$
Usually ships in 3-6 days
Honda 35110-VE4-003
KEY, IGNITION
$3.49
$
Usually ships in 3-6 days
Honda 35425-VE4-003
SWITCH, BALL
$
$
Not available
Honda 35485-VE4-003
LIMIT, SWITCH
$5.99
$
Usually ships in 3-6 days
Honda 35487-VE4-000
SPACER, SWITCH
$12.99
$
Usually ships in 3-6 days
Honda 39700-VE4-003
METER ASSY., HOUR
$84.99
$
Usually ships in 3-6 days
