HRC7013 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-1000001 - CPH1-2000000) MUFFLER Parts Diagram

Walk-Behind Mower, Made in Japan

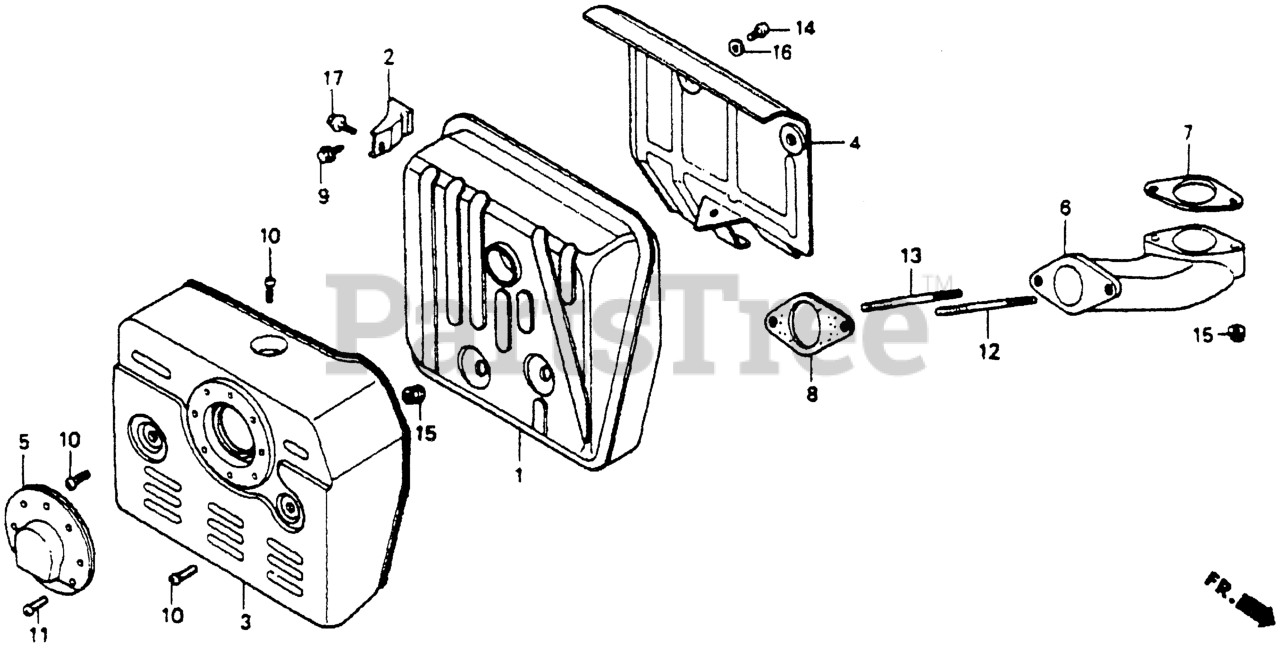

MUFFLER Parts Diagram

  • Title

NI

Honda 18335-ZE8-000

ARRESTER, SPARK (Honda Code 2106326).

$16.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZE9-003

MUFFLER (Honda Code 2271484).

$

$

Not available

2

Honda 18318-ZE8-000

STAY, MUFFLER (Honda Code 2106284).

$12.99

$

Usually ships in 3-6 days

0

3

Honda 18321-ZF5-010

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$16.99

$

In Stock, only 1 left!

0

4

Honda 18325-ZE9-000

SEE PART DETAILS - SUP; SEPARATOR, MUFFLER (Honda Code 2271500).
(Superseded to 18325-ZE9-010)

$32.99

$

In Stock, only 1 left!

0

4

Honda 18325-ZE9-010

SEE PART DETAILS - PRI; SEPARATOR, MUFFLER (Honda Code 4542478).

$32.99

$

In Stock, only 1 left!

0

5

Honda 18331-ZE2-810

CAP, MUFFLER (Honda Code 2026227).

$12.99

$

In Stock, only 2 left!

0

6

Honda 18331-ZF5-000

PIPE, EX. (Honda Code 3132057).

$83.99

$

Usually ships in 3-6 days

0

7

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE Use up to Engine SN 2949254.
(Superseded to 18333-ZK6-Y00)

$5.49

$

In Stock, Qty 20+

0

7

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).

$5.49

$

In Stock, Qty 20+

0

8

Honda 18382-ZE9-800

SEE PART DETAILS - PRI; GASKET, EX. PIPE (Honda Code 4455473).

$13.99

$

In Stock, only 2 left!

0

9

Honda 90031-883-000

BOLT, FLANGE (8X16) (Honda Code 0674473).

$6.49

$

In Stock, only 1 left!

0

10

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

11

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

$1.49

$

In Stock, Qty 20+

0

12

Honda 92900-08060-1B

BOLT, STUD (8X60) (Honda Code 1869692).

$4.49

$

In Stock, only 1 left!

0

13

Honda 92900-08070-1B

BOLT, STUD (8X70) (Honda Code 2106680).

$3.99

$

In Stock, only 1 left!

0

14

Honda 93500-06006-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X6) (Honda Code 1808013).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

16

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

17

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2529105).

$2.49

$

In Stock, Qty 20+

0

17

Honda 95800-08014-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0
