HRC7013 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-1000001 - CPH1-2000000) CONTROL Parts Diagram

Walk-Behind Mower, Made in Japan

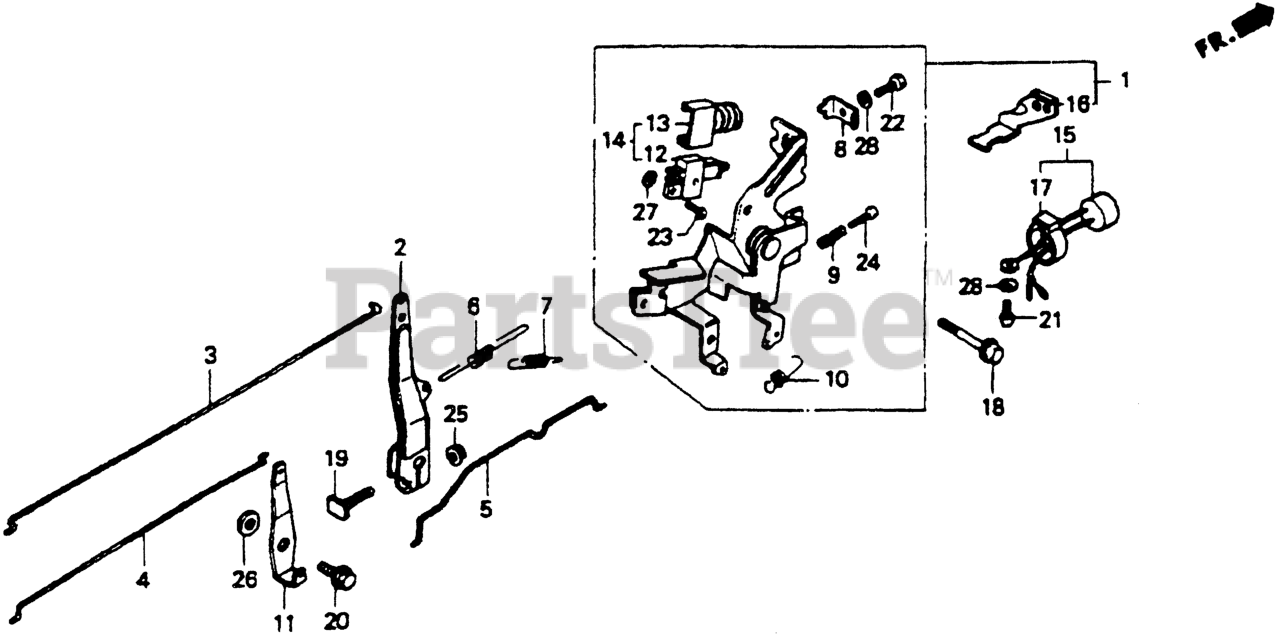

CONTROL Parts Diagram

  • Title

1

Honda 16500-ZF5-800

CONTROL ASSY. (Honda Code 3131976).

$60.99

$

In Stock, only 1 left!

0

2

Honda 16551-ZF5-000

ARM, GOVERNOR (Honda Code 3131984).

$15.99

$

Usually ships in 3-6 days

0

3

Honda 16555-ZE9-000

ROD, GOVERNOR (Honda Code 2271393).

$5.49

$

In Stock, only 1 left!

0

4

Honda 16556-ZE9-000

ROD, CHOKE (Honda Code 2271401).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16557-ZE8-810

ROD, JOINT (Honda Code 2608677).

$4.49

$

In Stock, only 1 left!

0

6

Honda 16561-ZF5-000

SPRING, GOVERNOR (Honda Code 3131992).

$4.99

$

In Stock, only 1 left!

0

7

Honda 16563-ZE8-000

SPRING, GOVERNOR PRIMARY (Honda Code 2110211).

$

$

Not available

8

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

10

Honda 16592-732-700

SEE PART DETAILS - PRI; SPRING, CABLE RETURN (Honda Code 2485142).

$4.99

$

In Stock, only 1 left!

0

11

Honda 16619-ZF5-000

SEE PART DETAILS - PRI; LEVER, CHOKE JOINT (Honda Code 3132016).

$6.99

$

In Stock, only 1 left!

0

12

Honda 35330-ZG1-751

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE (Honda Code 2279370).

$22.99

$

In Stock, only 1 left!

0

13

Honda 35336-750-003

COVER, SWITCH (Honda Code 2279388).

$5.49

$

In Stock, only 1 left!

0

14

Honda 36100-ZE8-003

SWITCH ASSY., ENGINE STOP (Honda Code 2110328).

$27.99

$

Usually ships in 3-6 days

0

15

Honda 38400-ZE8-003

BUZZER ASSY. (Honda Code 2461754).

$76.99

$

Usually ships in 3-6 days

0

16

Honda 38401-ZF5-800

STAY, BUZZER (Honda Code 3132222).

$6.99

$

Usually ships in 3-6 days

0

17

Honda 38402-GC1-000

SUSPENSION, AUDIBLE PILOT (Honda Code 1704642).

$8.99

$

Usually ships in 3-6 days

0

18

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

19

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

20

Honda 90015-ZE8-000

BOLT, FLANGE (6MM) (Honda Code 2092963).

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

22

Honda 92301-05016-0A

SEE PART DETAILS - PRI; BOLT, RECESSED (5X16) (Honda Code 3509742).

$1.99

$

Usually ships in 3-6 days

0

23

Honda 93500-04014-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X14) (Honda Code 0156471).

$1.49

$

In Stock, only 1 left!

0

24

Honda 93500-05020-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X20) (Honda Code 0197731).

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

26

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

27

Honda 94111-04000

WASHER, SPRING (4MM) (Honda Code 0058958).

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94111-05000

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0058966).

$1.49

$

Usually ships in 3-6 days

0
