HRC7013 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-1000001 - CPH1-2000000) AIR CLEANER Parts Diagram
Walk-Behind Mower, Made in Japan

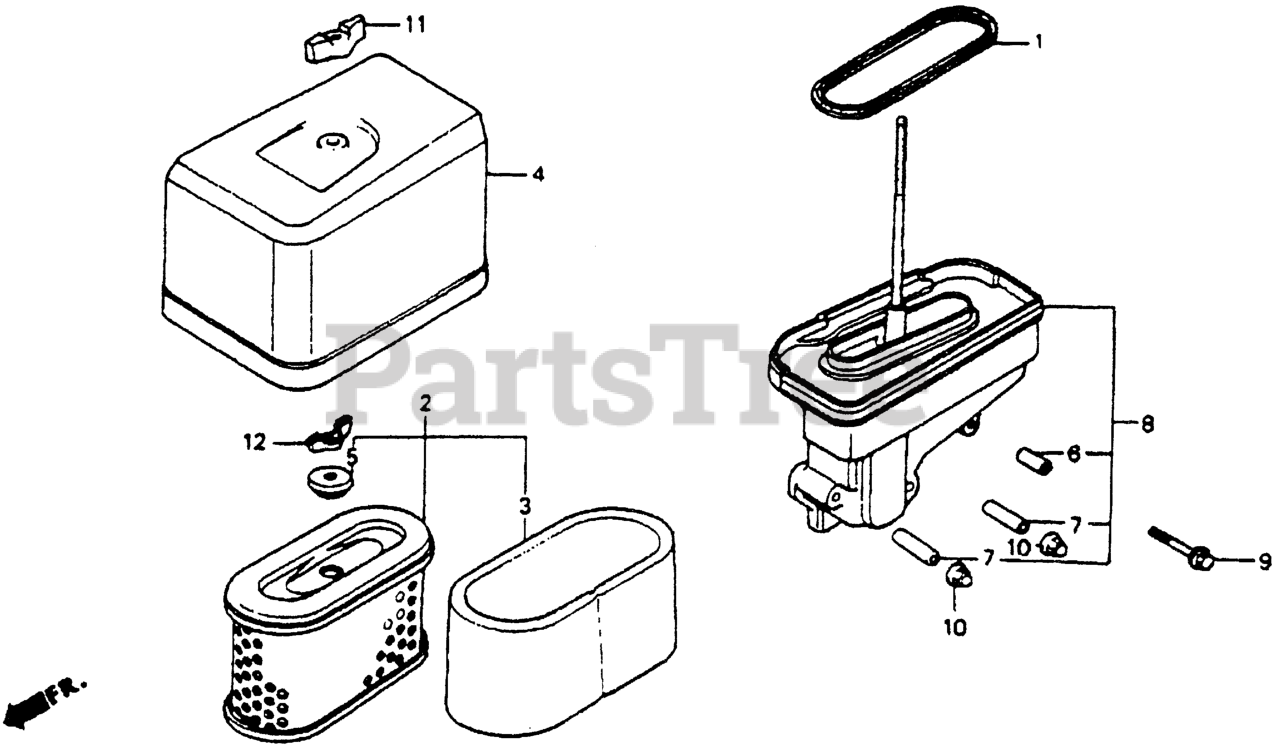

AIR CLEANER Parts Diagram
Honda 16271-ZE8-000
GASKET, ELBOW (Honda Code 2090082).
$4.99
$
Usually ships in 3-6 days
Honda 17210-ZF5-010
ELEMENT, AIR CLEANER (METAL BASE)
$24.99
$
Usually ships in 3-6 days
Honda 17210-ZF5-505
SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (METAL BASE) (Honda Code 5248299).
(Superseded to 17210-ZF5-010)
$24.99
$
Usually ships in 3-6 days
Honda 17218-ZF5-505
SEE PART DETAILS - PRI; FILTER (OUTER) (Honda Code 5183777).
(Superseded to 17218-ZF5-305)
$9.49
$
In Stock, only 1 left!
Honda 17230-ZE8-013
SEE PART DETAILS - PRI; COVER, AIR CLEANER (DUAL) (Honda Code 2485175).
$35.99
$
Usually ships in 3-6 days
Honda 17232-891-000
GROMMET, AIR CLEANER (Honda Code 0999763).
$5.99
$
In Stock, Qty 5
Honda 17238-ZE1-000
COLLAR, AIR CLEANER Use up to Engine SN 1786084.
$5.49
$
Usually ships in 3-6 days
Honda 17238-ZE2-310
SEE PART DETAILS - PRI; COLLAR, AIR CLEANER (Honda Code 2384105).
$4.99
$
In Stock, Qty 10
Honda 17410-ZE8-013
ELBOW, AIR CLEANER (Honda Code 2485209).
$44.99
$
In Stock, only 1 left!
Honda 90014-ZE6-000
BOLT, FLANGE (6X35) (Honda Code 1688076).
$2.99
$
In Stock, Qty 6
Honda 90201-415-000
NUT, CAP (6MM) (Honda Code 0670729).
$2.99
$
In Stock, Qty 12
Honda 90203-ZA0-800
WINGNUT (6MM) (Honda Code 1742238).
$4.49
$
In Stock, only 1 left!
Honda 90325-044-000
SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).
$5.49
$
In Stock, Qty 20+
