HRC7013 K1 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-2000001 - CPH1-9999999) RECOIL STARTER Parts Diagram

Walk-Behind Mower, Made in Japan

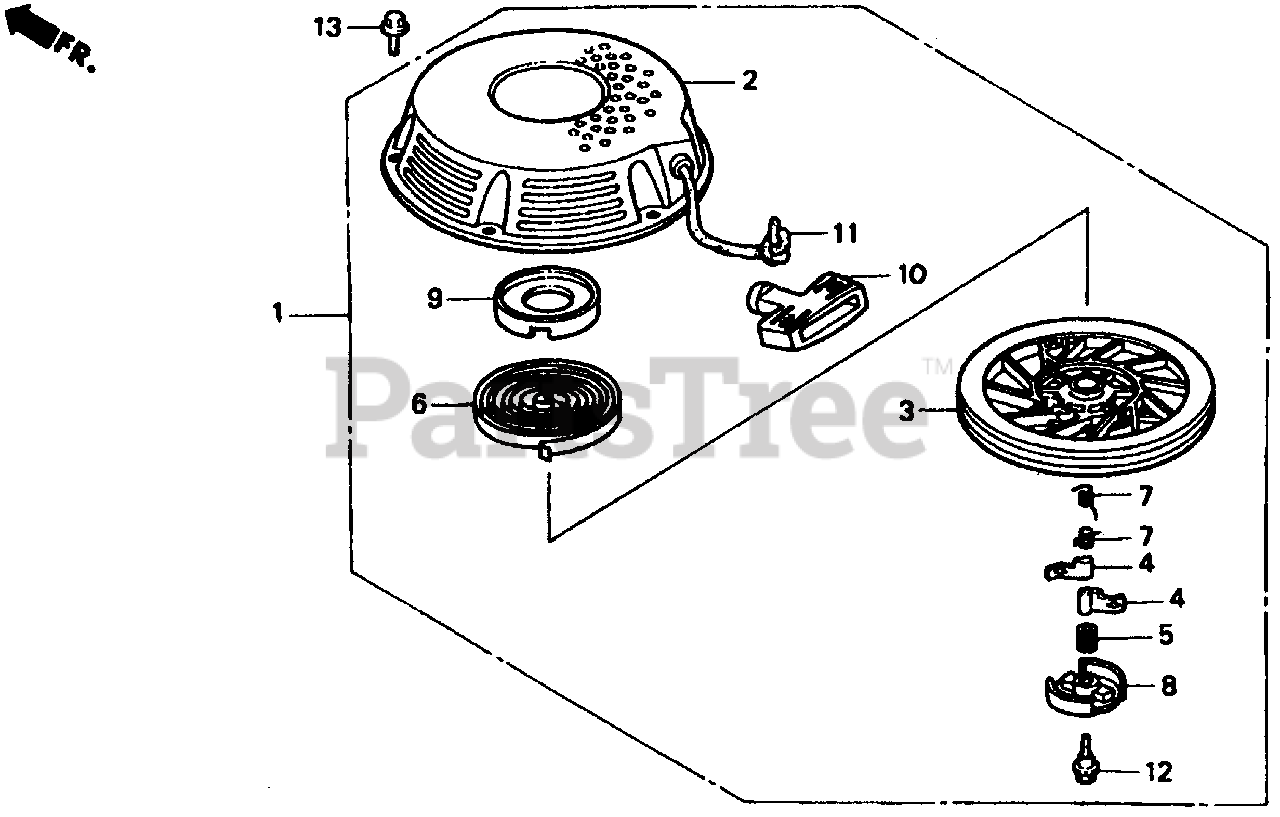

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE8-004ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 28410-ZE8-004ZB

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)

$

$

Currently unavailable

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

$44.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

Usually ships in 3-6 days

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

9

Honda 28445-ZE2-W01

HOLDER, SPRING

$18.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

$7.99

$

In Stock, only 2 left!

0

11

Honda 28462-ZE8-004

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER

$

$

Not available

12

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, Qty 10

0

13

Honda 96001-06010-00

BOLT, FLANGE (6X10)

$2.49

$

Usually ships in 3-6 days

0
