HRC7013 K1 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-2000001 - CPH1-9999999) PISTON Parts Diagram
Walk-Behind Mower, Made in Japan

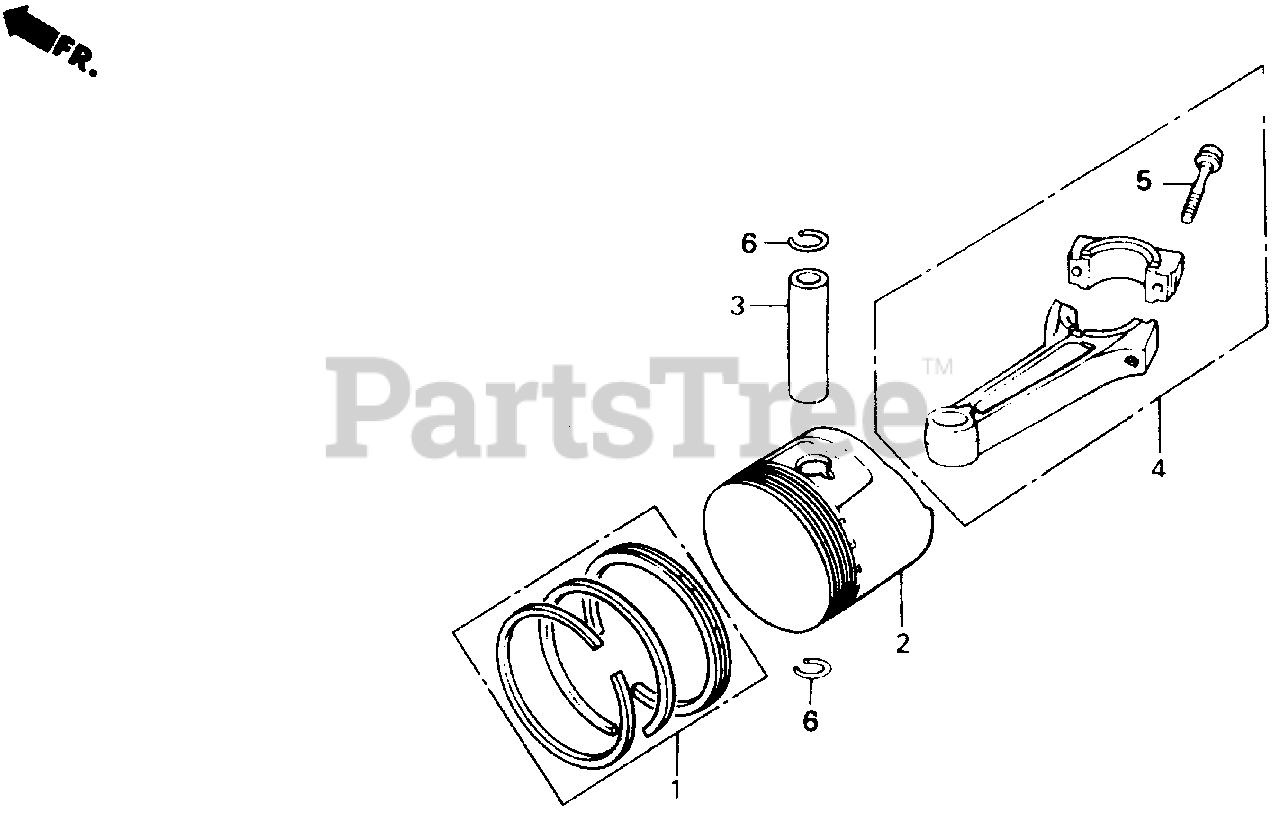

PISTON Parts Diagram
Honda 13010-ZF6-003
SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)
$46.99
$
In Stock, Qty 5
Honda 13011-ZF6-003
SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (NIPPON)
$74.99
$
Usually ships in 3-6 days
Honda 13012-ZF6-003
SEE PART DETAILS - SUP; RING SET, PISTON (0.50) (NIPPON)
$
$
Not available
Honda 13012-ZF6-005
SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (TEIKOKU)
$73.99
$
Usually ships in 3-6 days
Honda 13101-ZF6-000
PISTON (STD)
$135.99
$
Usually ships in 3-6 days
Honda 13102-ZF6-000
PISTON (0.25)
$124.99
$
Usually ships in 3-6 days
Honda 13103-ZF6-000
PISTON (0.50)
$124.99
$
Usually ships in 3-6 days
Honda 13111-ZF6-000
SEE PART DETAILS - PRI; PIN, PISTON
$15.99
$
Usually ships in 3-6 days
$154.99
$
Usually ships in 3-6 days
Honda 13200-ZE9-315
ROD ASSY., CONNECTING (0.25 LOWER SIZE)
$
$
Not available
Honda 90001-ZE8-000
BOLT, CONNECTING ROD
$4.49
$
In Stock, only 1 left!
Honda 90601-ZE3-000
CLIP, PISTON PIN (20MM)
$2.49
$
In Stock, only 3 left!
