HRC216 K3 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1010001 - MAJA-9999999) THROTTLE LEVER (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

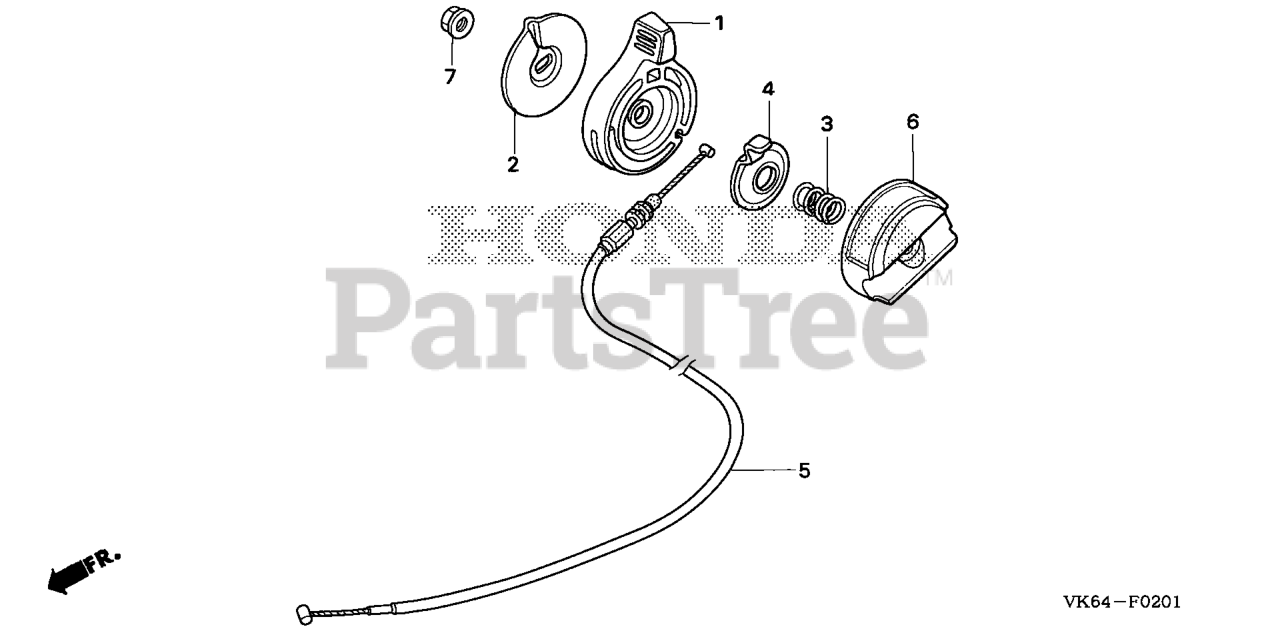

THROTTLE LEVER (PDA) Parts Diagram

  • Title

1

Honda 17851-VA4-000

LEVER, THROTTLE

$12.99

$

Usually ships in 3-6 days

0

2

Honda 17857-VA4-000

PLATE, THROTTLE LEVER

$7.99

$

Usually ships in 3-6 days

0

3

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$4.49

$

Usually ships in 3-6 days

0

4

Honda 17859-VA4-000

SEAT, SPRING

$6.49

$

Usually ships in 3-6 days

0

5

Honda 17910-VK6-003

SEE PART DETAILS - PRI; CABLE, THROTTLE

Note: Use from Frame SN 1010602.

$29.99

$

In Stock, only 1 left!

0

5

Honda 17910-VK6-A03

CABLE, THROTTLE

Note: Use up to Frame SN 1010601.

$61.99

$

In Stock, only 2 left!

0

6

Honda 54231-VB5-800

COVER, CONTROL

$10.99

$

Usually ships in 3-6 days

0

7

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
