HRC216 K3 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1010001 - MAJA-9999999) RECOIL STARTER (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

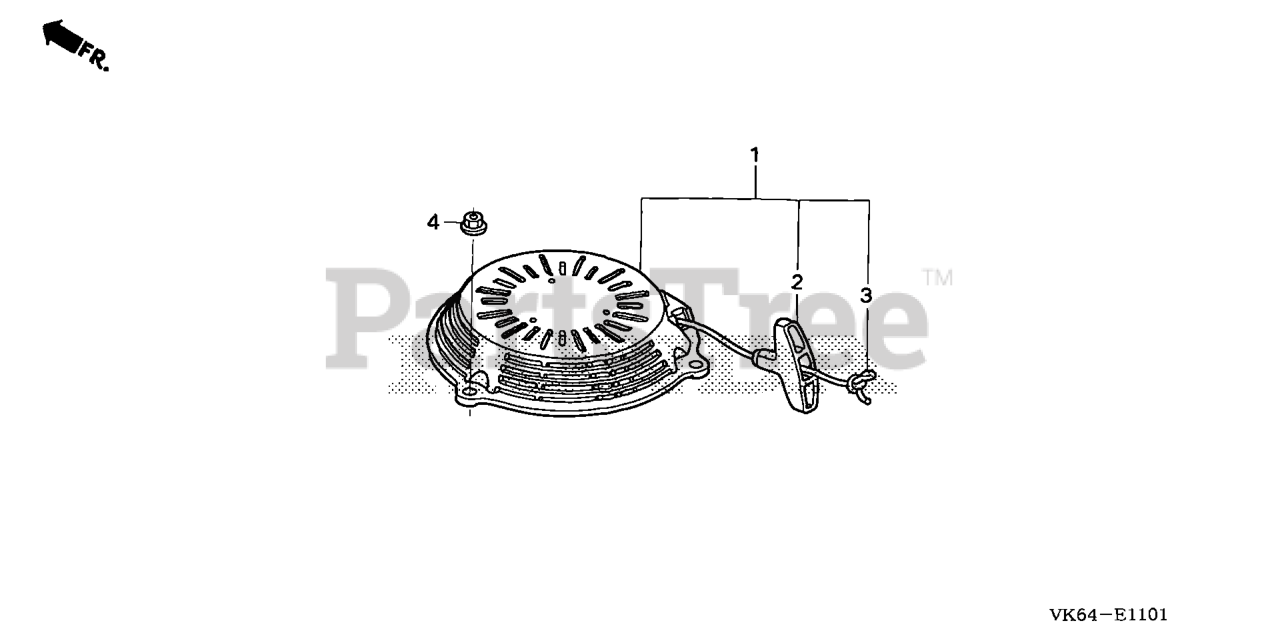

RECOIL STARTER (PDA) Parts Diagram

  • Title

1

Honda 28400-Z0L-V20ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (LONG ROPE) (POWER RED)
(Superseded to 28400-Z0L-V21ZB)

Note: Use up to Engine SN 1017268.

$20.99

$

In Stock, only 4 left!

0

1

Honda 28400-Z0L-V21ZB

STARTER ASS*R280*

Note: Use up to Engine SN 1017268.

$20.99

$

In Stock, only 4 left!

0

1

Honda 28400-Z8B-003ZD

STARTER ASSY., RECOIL *R280* (LONG ROPE) (POWER RED)

Note: Use from Engine SN 1017269 to 1019348.

$16.99

$

In Stock, Qty 8

0

1

Honda 28400-Z8B-901ZB

STARTER ASSY., RECOIL *R280* (LONG ROPE) (POWER RED)
(Superseded to 28400-Z8B-902ZB)

Note: Use from Engine SN 1019349.

$13.99

$

In Stock, Qty 6

0

2

Honda 28461-ZL8-003

KNOB, RECOIL STARTER (Honda Code 5580634).

$4.49

$

In Stock, only 4 left!

0

3

Honda 28462-ZL8-631

ROPE, RECOIL STARTER (Honda Code 5580642). (#3.5X90")

Note: Use up to Engine SN 1017268.

$4.49

$

In Stock, only 1 left!

0

3

Honda 28462-ZL8-V71

ROPE, RECOIL STARTER (LONG TYPE)

Note: Use from Engine SN 1017269.

$2.49

$

In Stock, only 4 left!

0

4

Honda 90201-ZM0-000

NUT, FLANGE (6MM) (Honda Code 6478812).

$2.99

$

In Stock, Qty 20+

0
