HRC216 K3 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1010001 - MAJA-9999999) HANDLEBAR (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

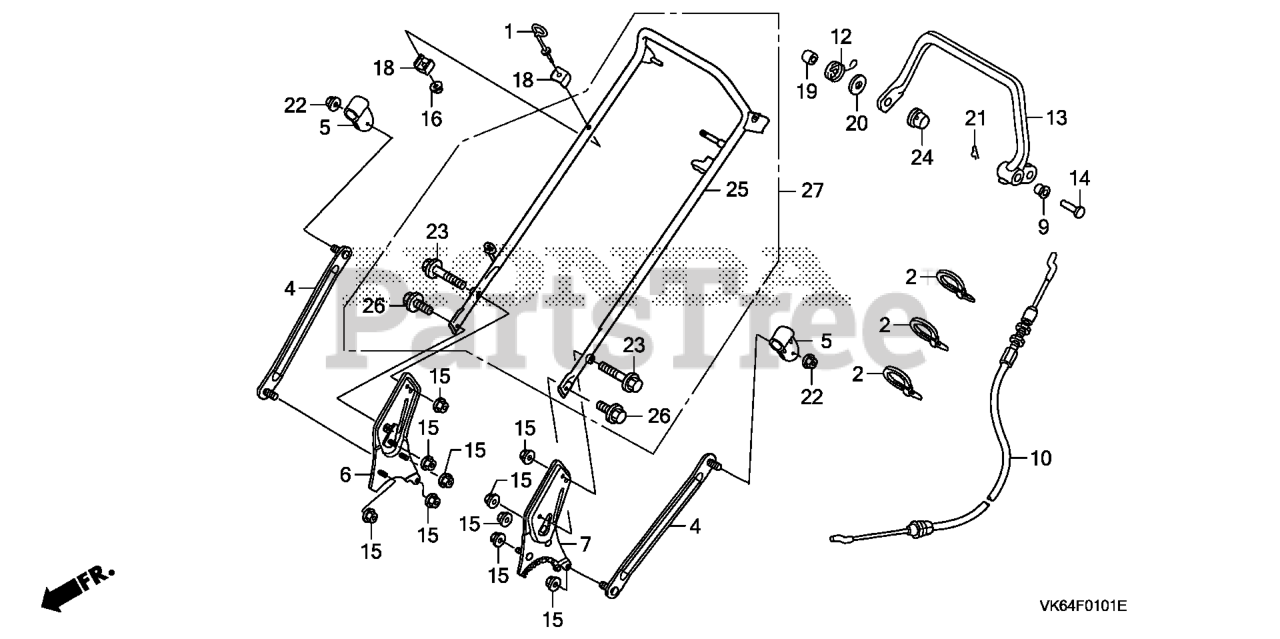

HANDLEBAR (PDA) Parts Diagram

  • Title

1

Honda 28475-VK6-700

GUIDE, ROPE

$9.49

$

Usually ships in 3-6 days

0

2

Honda 32901-VK6-000

TIE, CABLE

$1.99

$

Usually ships in 3-6 days

0

4

Honda 53118-VK6-000

PLATE, HANDLE SUPPORT

$20.99

$

In Stock, only 4 left!

0

5

Honda 53119-VK6-000

HANGER, HANDLE SUPPORT

$5.99

$

In Stock, only 2 left!

0

6

Honda 53130-VK6-000

STAY, R. HANDLE

$19.99

$

In Stock, only 2 left!

0

7

Honda 53135-VK6-000

STAY, L. HANDLE

$19.99

$

In Stock, only 2 left!

0

9

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, Qty 20+

0

10

Honda 54530-VK6-700

CABLE, BRAKE

$31.99

$

In Stock, only 4 left!

0

12

Honda 75118-VA3-J00

SPRING, R. STOP RETURN

$6.49

$

In Stock, Qty 20+

0

13

Honda 75190-VE1-E00ZA

LEVER, BRAKE *NH105* (MAT BLACK)

$114.99

$

In Stock, only 1 left!

0

14

Honda 90106-VA4-000

PIN, CLUTCH LEVER

$11.99

$

Usually ships in 3-6 days

0

15

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

15

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 16

0

16

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 90501-V25-000

WASHER, FRAME JOINT

$0.99

$

In Stock, only 2 left!

0

19

Honda 90552-VA3-J00

COLLAR (8X11X13.5)

$4.49

$

In Stock, Qty 17

0

20

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM) (Honda Code 0059097).

$1.49

$

In Stock, Qty 20+

0

21

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 20+

0

22

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

22

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 16

0

23

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 20+

0

24

Honda 90301-VA3-J01

NUT, PUSH (8MM)

$1.99

$

In Stock, Qty 20+

0

25

Honda 53110-VK6-701

PIPE, HANDLE

$89.99

$

Usually ships in 3-6 days

0

25

Honda 53110-VK6-702

PIPE, HANDLE

$96.99

$

Usually ships in 3-6 days

0

26

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 13

0
