HRC216 K3 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1010001 - MAJA-9999999) FLYWHEEL (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

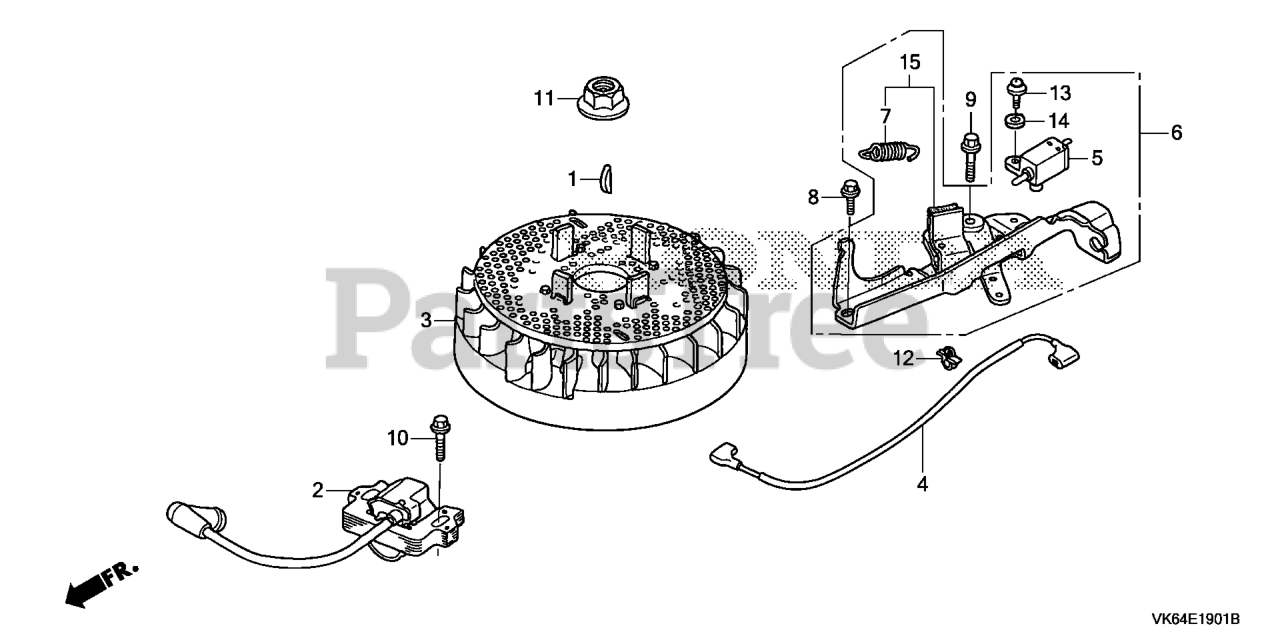

FLYWHEEL (PDA) Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

Note: Use up to Engine SN 1019348.

$5.49

$

In Stock, only 4 left!

0

1

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 1019349.

$6.49

$

In Stock, Qty 10

0

2

Honda 30500-Z8B-903

COIL ASSY., IGNITION (PHELON)

$23.99

$

Usually ships in 3-6 days

0

2

Honda 30500-Z8B-902

COIL ASSY., IGN

Note: Use from Engine SN 1013147.

$18.99

$

Usually ships in 3-6 days

0

3

Honda 31105-ZM0-000

FLYWHEEL ASSY. (TEC) (USE FOR IGN. COIL OF TEC)

Note: Use from Engine SN 1013147.

$62.99

$

In Stock, only 1 left!

0

3

Honda 31105-Z0Y-800

FLYWHEEL ASSY. (TEC) (USE FOR IGN. COIL OF TEC)

Note: Use up to Engine SN 1013146.

$23.99

$

Usually ships in 3-6 days

0

4

Honda 32195-Z0L-000

WIRE, STOP SWITCH

$6.49

$

Usually ships in 3-6 days

0

5

Honda 35120-ZM0-003

SWITCH ASSY., ENGINE STOP (Honda Code 5580683). (N.C)

$13.99

$

In Stock, only 2 left!

0

6

Honda 75100-Z0L-901

SEE PART DETAILS - PRI; BRAKE ASSY.

$59.99

$

In Stock, only 4 left!

0

7

Honda 75113-ZM0-000

SPRING, BRAKE LEVER (Honda Code 5580790).

$3.49

$

Usually ships in 3-6 days

0

8

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

9

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

Note: Use up to Engine SN 1014207.

$2.99

$

In Stock, only 2 left!

0

10

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

Note: Use from Engine SN 1014208.

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

Note: Use up to Engine SN 1011026.

$7.99

$

In Stock, only 1 left!

0

11

Honda 90201-Z0T-800

NUT, SPECIAL (14MM) (Honda Code 7348378).

Note: Use from Engine SN 1011027.

$2.99

$

In Stock, only 1 left!

0

12

Honda 90681-959-003

CLIP, CABLE (A) (Honda Code 1824630).

$4.49

$

Usually ships in 3-6 days

0

13

Honda 93892-04012-00

SCREW-WASHER (4X12) (Honda Code 0485946).

$0.99

$

In Stock, Qty 8

0

14

Honda 94103-04000

WASHER, PLAIN (4MM) (Honda Code 1510361).

$0.99

$

In Stock, Qty 7

0

15

Honda 75100-Z0L-901

SEE PART DETAILS - PRI; BRAKE ASSY.

$59.99

$

In Stock, only 4 left!

0
