HRC216 K3 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1010001 - MAJA-9999999) CARBURETOR (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

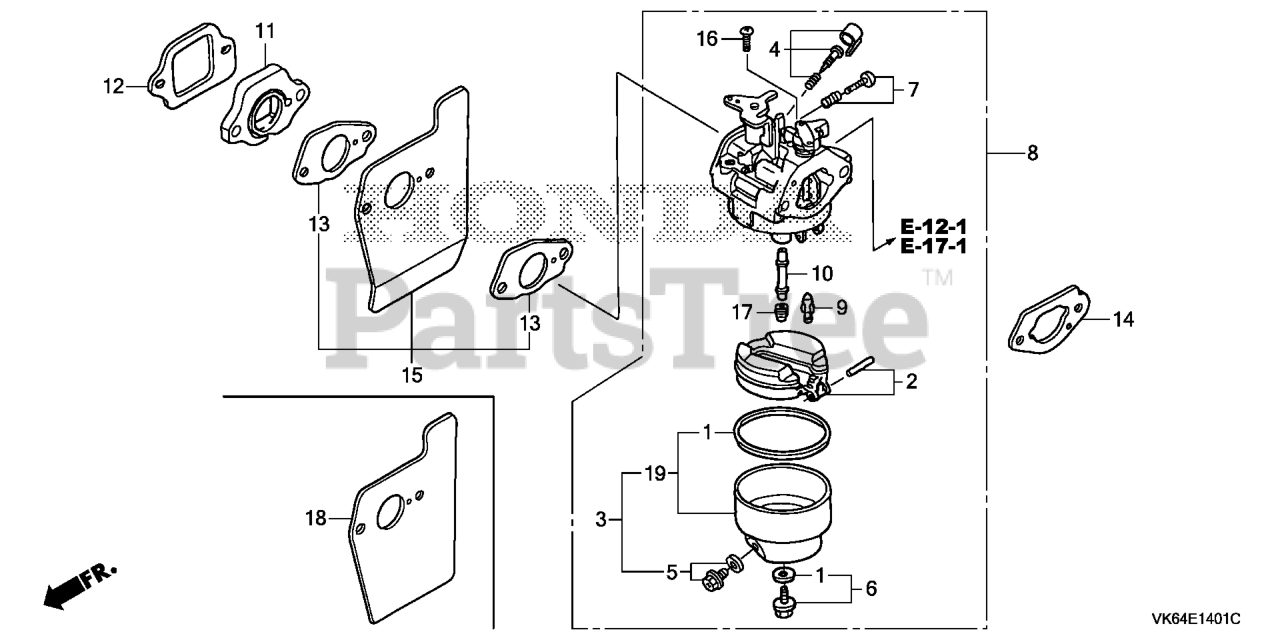

CARBURETOR (PDA) Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

$12.99

$

In Stock, Qty 5

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$31.99

$

In Stock, only 2 left!

0

3

Honda 16015-887-782

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 3465879).

Note: Use up to Engine SN BB65F A.

$32.99

$

In Stock, only 1 left!

0

4

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

$12.99

$

In Stock, only 1 left!

0

5

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

Note: Use up to Engine SN BB65F A.

$10.99

$

In Stock, only 3 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP) (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z2B-J01

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB65F A)
(Superseded to 16100-Z2B-J03)

Note: Use up to Engine SN 1013146.

$25.99

$

In Stock, only 1 left!

0

8

Honda 16100-Z2B-J03

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB65F B)

Note: Use up to Engine SN 2000000.

$25.99

$

In Stock, only 1 left!

0

8

Honda 16100-Z8B-013

CARBURETOR (BB65W A)

Note: Use from Engine SN 2000001.

$26.99

$

Usually ships in 3-6 days

0

9

Honda 16155-ZM0-013

VALVE, FLOAT (Honda Code 7934714). (CARBURETOR NO.)

$34.99

$

In Stock, only 2 left!

0

10

Honda 16166-Z2B-003

NOZZLE, MAIN

Note: Use up to Engine SN BB65F C.

$1.49

$

Usually ships in 3-6 days

0

10

Honda 16166-Z8B-WA1

NOZZLE, MAIN

Note: Use from Engine SN BB65W B.

$7.49

$

Usually ships in 3-6 days

0

11

Honda 16211-ZL8-000

INSULATOR, CARBURETOR (Honda Code 5580238).

Note: Use up to Engine SN 1018260.

$4.49

$

In Stock, Qty 20+

0

11

Honda 16211-Z8B-000

INSULATOR, CARBURETOR

Note: Use from Engine SN 1018261.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 16212-ZL8-000

GASKET, INSULATOR (Honda Code 5580246).

$7.99

$

In Stock, Qty 6

0

13

Honda 16221-883-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: Use up to Engine SN 1012545.

$2.49

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

GASKET, CARBURETOR (Honda Code 5580253). (CHOKE SIDE)

$2.49

$

In Stock, Qty 20+

0

15

Honda 19650-ZM0-000

GUIDE, AIR (Honda Code 5580535).

Note: Use up to Engine SN 1012545.

$8.99

$

In Stock, only 3 left!

0

16

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, only 4 left!

0

17

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474). (CARBURETOR NO.)

Note: (Optional) Use up to Engine SN BB65F C.

$12.99

$

In Stock, Qty 6

0

17

Honda 99101-124-0650

JET, MAIN (#65) Use up to Engine SN BB30A D.

Note: Use from Engine SN BB65W B. Use up to Engine SN BB65F C.

$12.99

$

In Stock, only 2 left!

0

17

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 99101-124-0680

JET, MAIN (#68) Use up to Engine SN BB30A D.

Note: Use from Engine SN BB65W B.

$11.99

$

Usually ships in 3-6 days

0

18

Honda 19651-Z0L-000

GUIDE, AIR

Note: Use from Engine SN 1012546.

$0.99

$

In Stock, Qty 20+

0

19

Honda 16015-Z0L-881

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BB65F B.

$31.99

$

Usually ships in 3-6 days

0
