HRC216 K3 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1010001 - MAJA-9999999) CAMSHAFT PULLEY Parts Diagram

21" Walk-Behind Mower, Made in USA

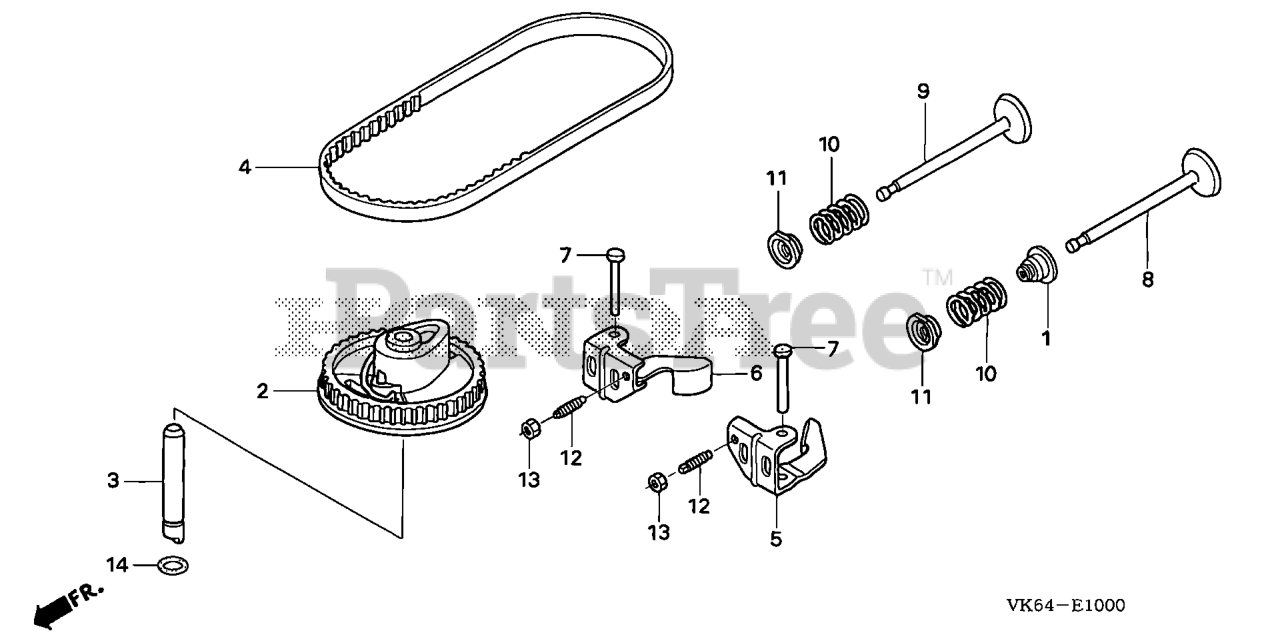

CAMSHAFT PULLEY Parts Diagram

  • Title
1

Honda 12209-ZM0-003

SEAL, VALVE STEM (Honda Code 6839831).

Note: Use up to Engine SN 1017268.

$9.99

$

In Stock, Qty 5

0

1

Honda 12209-Z8B-003

SEAL, VALVE STEM

Note: Use from Engine SN 1017269.

$4.99

$

In Stock, Qty 5

0

2

Honda 14320-ZL8-010

SEE PART DETAILS - PRI; PULLEY, CAMSHAFT

Note: Use up to Engine SN 1019348.

$24.99

$

In Stock, only 1 left!

0

2

Honda 14320-Z8D-000

SEE PART DETAILS - PRI; PULLEY, CAMSHAFT

Note: Use from Engine SN 1019349.

$8.49

$

In Stock, Qty 8

0

3

Honda 14324-ZL8-000

SHAFT, CAM PULLEY (Honda Code 5580063).

Note: Use up to Engine SN 1020554.

$6.99

$

In Stock, Qty 5

0

3

Honda 14324-Z8B-000

SHAFT, CAM PULLEY
(Superseded to 14324-ZL8-000)

Note: Use from Engine SN 1020555.

$6.99

$

In Stock, Qty 5

0

4

Honda 14400-Z0J-014

SEE PART DETAILS - SUP; BELT, TIMING (84HU7 G-200)
(Superseded to 14400-Z8B-003)

Note: Use up to Engine SN 1016548.

$11.99

$

In Stock, Qty 12

0

4

Honda 14400-Z8B-003

SEE PART DETAILS - PRI; BELT, TIMING (84HU6 G-200)

$11.99

$

In Stock, Qty 12

0

5

Honda 14431-Z0J-000

SEE PART DETAILS - PRI; ARM, IN. VALVE ROCKER (Honda Code 7526122).

$6.99

$

In Stock, only 2 left!

0

6

Honda 14441-Z0J-000

SEE PART DETAILS - PRI; ARM, EX. VALVE ROCKER (Honda Code 7526130).

$6.99

$

In Stock, Qty 20+

0

7

Honda 14461-ZL8-000

SHAFT, ROCKER ARM (Honda Code 5580105).

$2.99

$

In Stock, Qty 8

0

8

Honda 14711-ZL8-000

SEE PART DETAILS - PRI; VALVE, IN. (TECHNOSTAR)

$71.99

$

In Stock, only 4 left!

0

9

Honda 14721-ZL8-000

SEE PART DETAILS - SUP; VALVE, EX. (L8E)

Note: Use up to Engine SN 1017268.

$63.99

$

In Stock, Qty 9

0

9

Honda 14721-Z8B-000

SEE PART DETAILS - PRI; VALVE, EX. (C8E)
(Superseded to 14721-ZL8-000)

Note: Use from Engine SN 1017269.

$63.99

$

In Stock, Qty 9

0

10

Honda 14751-ZL8-000

SPRING, VALVE (Honda Code 5580139).

$0.99

$

In Stock, Qty 12

0

11

Honda 14771-Z0J-000

RETAINER, VALVE SPRING

$11.99

$

In Stock, Qty 6

0

12

Honda 90012-333-000

SCREW, TAPPET ADJ. (Honda Code 0294819).

$3.99

$

In Stock, Qty 15

0

13

Honda 90206-001-000

NUT, TAPPET ADJ. (Honda Code 0004598).

$2.49

$

In Stock, Qty 20+

0

14

Honda 91301-ZM0-V31

SEE PART DETAILS - PRI; O-RING (6.8X1.9) (ARAI)

$3.49

$

In Stock, Qty 20+

0
