HRC216 K3 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1010001 - MAJA-9999999) AIR CLEANER (2) Parts Diagram

21" Walk-Behind Mower, Made in USA

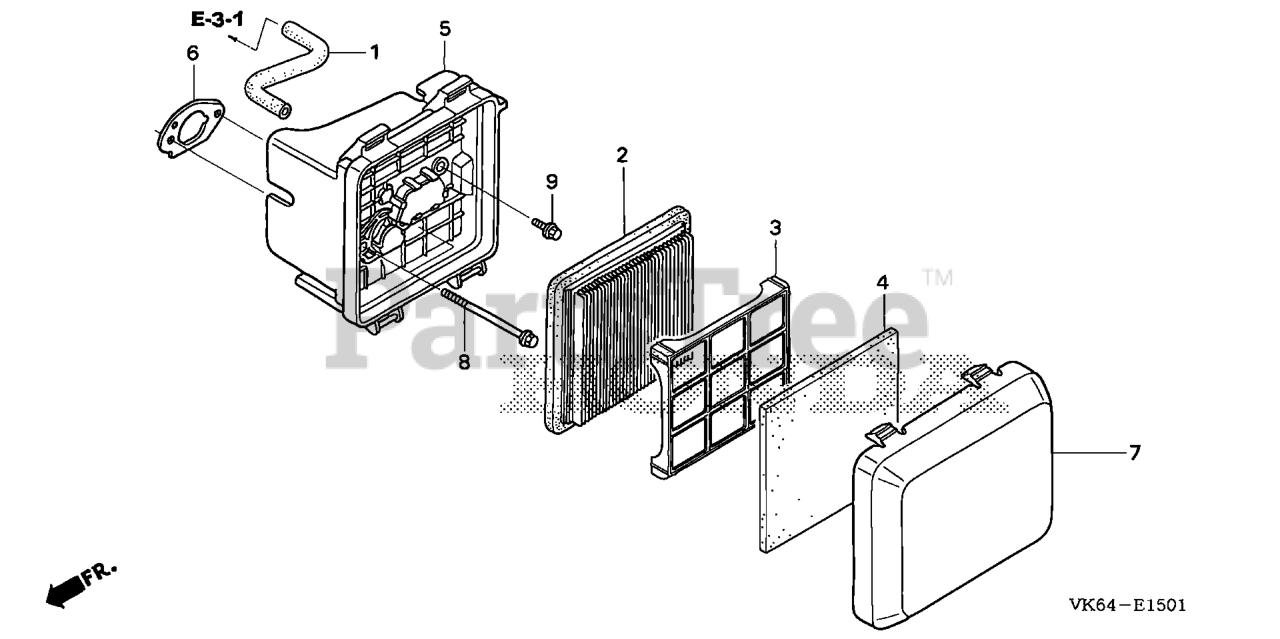

AIR CLEANER (2) Parts Diagram

  • Title

1

Honda 15721-ZM0-000

TUBE, BREATHER (Honda Code 5580154).

$3.99

$

In Stock, only 4 left!

0

2

Honda 17211-ZL8-023

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (TOYO ROKI) (ENGINE NO.)

$6.49

$

In Stock, Qty 20+

0

3

Honda 17212-Z2A-010

SEE PART DETAILS - PRI; GRID, AIR CLEANER

$8.49

$

Usually ships in 3-6 days

0

4

Honda 17218-Z2A-000

FILTER (OUTER) (WET)

$6.99

$

In Stock, only 2 left!

0

5

Honda 17220-ZM0-030

SEE PART DETAILS - PRI; CASE ASSY., AIR CLEANER

Note: Use up to Engine SN 1018260. Use up to Engine SN 1011145.

$17.99

$

In Stock, Qty 10

0

5

Honda 17220-Z8B-010

CASE ASSY., AIR CLEANER

Note: Use from Engine SN 1018261.

$4.49

$

In Stock, Qty 6

0

6

Honda 17228-ZM0-000

GASKET, AIR CLEANER (Honda Code 5664560).

Note: Use up to Engine SN 1016908.

$3.49

$

In Stock, Qty 11

0

6

Honda 17228-Z8B-000

GASKET, AIR CLEANER

Note: Use from Engine SN 1016909.

$3.99

$

In Stock, Qty 6

0

7

Honda 17231-Z2B-020

COVER, AIR CLEANER (DUAL)

$18.99

$

In Stock, only 1 left!

0

8

Honda 90003-ZM0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X85) (CT200)

Note: Use up to Engine SN 1018260.

$2.49

$

In Stock, Qty 14

0

8

Honda 90003-Z8B-900

BOLT, SPECIAL (6MM)

Note: Use from Engine SN 1018261.

$3.99

$

In Stock, Qty 10

0

9

Honda 95701-06014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2374742).

Note: Use up to Engine SN 1011145.

$2.49

$

In Stock, Qty 9

0
