HRC216 K3 HXPH (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-2000001 - MAKA-9999999) CRANKSHAFT@PISTON (HDAH/HXA/HXC/HXPH/HXCH/HDPH) Parts Diagram
21" Walk-Behind Mower, Made in USA

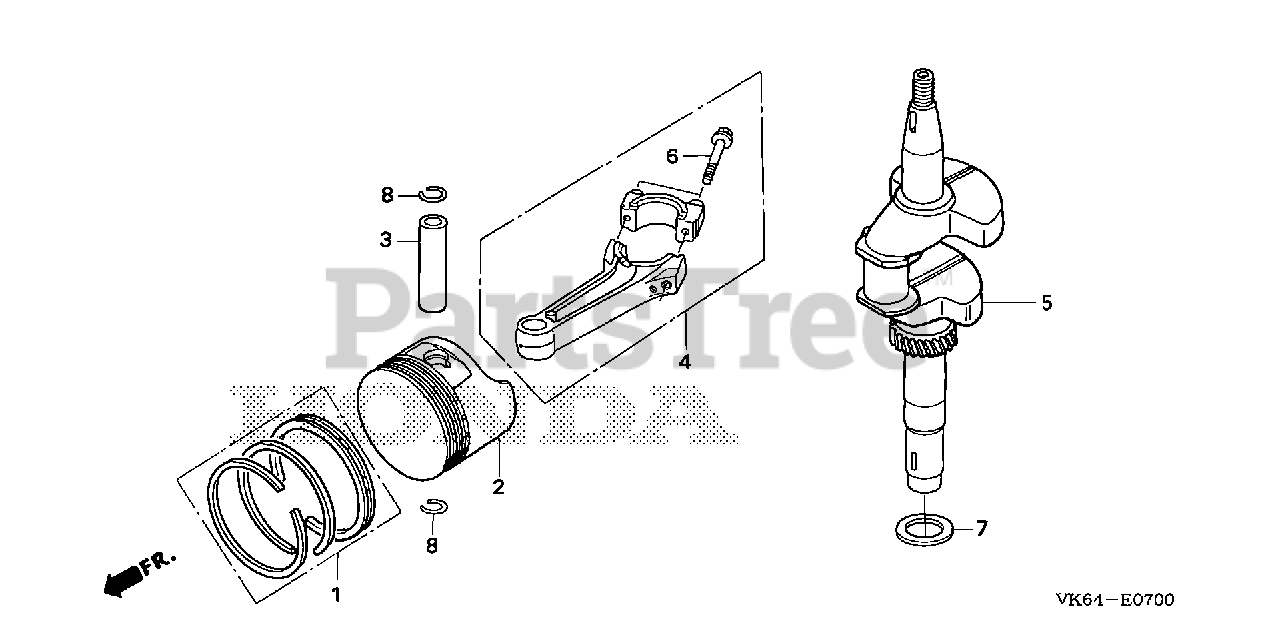

CRANKSHAFT@PISTON (HDAH/HXA/HXC/HXPH/HXCH/HDPH) Parts Diagram
Honda 13010-Z1V-931
RING SET, PISTON (STD) (TPR)
$32.99
$
Usually ships in 3-6 days
Honda 13010-Z1V-932
RING SET, PISTON (STD) (RIKEN)
$31.99
$
Usually ships in 3-6 days
Honda 13101-ZDK-013
PISTON (STD)
$37.99
$
Usually ships in 3-6 days
Honda 13111-Z1T-000
PIN, PISTON
$11.99
$
In Stock, only 1 left!
Honda 13200-Z1V-600
SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (IDENT MARK Z)
$130.99
$
In Stock, only 1 left!
Honda 13200-Z1V-610
ROD ASSY., CONNECTING
$73.99
$
Usually ships in 3-6 days
Honda 13310-ZE7-771
CRANKSHAFT
$272.99
$
In Stock, only 3 left!
Honda 90001-Z1T-000
BOLT, CONNECTING ROD (IDENT MARK Z)
$2.99
$
Usually ships in 3-6 days
Honda 90401-ZE7-W00
WASHER, THRUST (25.6MM)
$6.99
$
In Stock, only 2 left!
Honda 90551-ZE1-000
CLIP, PISTON PIN (18MM) (Honda Code 2539120).
$1.49
$
In Stock, Qty 20+
