HRC216 K3 HXA (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1050001 - MAKA-1999999) TRANSMISSION Parts Diagram

21" Walk-Behind Mower, Made in USA

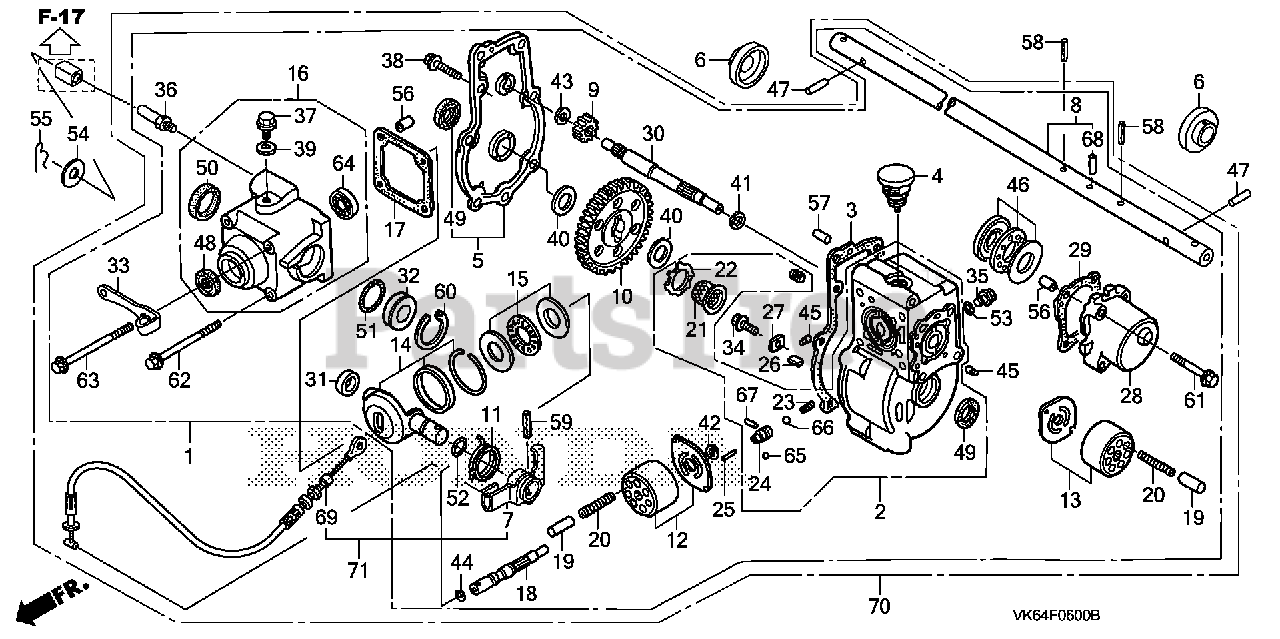

TRANSMISSION Parts Diagram

  • Title

1

Honda 20001-VK6-305

TRANSMISSION ASSY.

$710.99

$

Usually ships in 3-6 days

0

2

Honda 21110-VD6-904

CASE, TRANSMISSION

$205.99

$

Usually ships in 3-6 days

0

3

Honda 21115-VD6-900

GASKET, TRANSMISSION CASE

$6.99

$

In Stock, only 1 left!

0

4

Honda 21230-VD6-903

CAP, OIL

$23.99

$

Usually ships in 3-6 days

0

5

Honda 21520-VD6-901

COVER, TRANSMISSION

$144.99

$

Usually ships in 3-6 days

0

6

Honda 21912-VK6-000

GUARD, GRASS

$1.49

$

In Stock, only 1 left!

0

7

Honda 22533-VK6-600

ARM, CONTROL

$8.99

$

Usually ships in 3-6 days

0

8

Honda 23250-VK6-000

SHAFT, FINAL

$103.99

$

Usually ships in 3-6 days

0

9

Honda 23414-VK6-003

GEAR, FINAL DRIVE (13T)

$15.99

$

Usually ships in 3-6 days

0

10

Honda 23442-VK6-003

GEAR, FINAL DRIVEN (65T)

$62.99

$

Usually ships in 3-6 days

0

11

Honda 24134-VD6-900

SPRING, CONTROL ARM RETURN

$7.49

$

Usually ships in 3-6 days

0

12

Honda 25010-VD6-900

PLATE SET, PUMP CYLINDER

$86.99

$

In Stock, only 1 left!

0

13

Honda 25011-VD6-900

PLATE SET, MOTOR CYLINDER

$86.99

$

Usually ships in 3-6 days

0

14

Honda 25012-VD6-902

BOWL SET, CONTROL

$118.99

$

Usually ships in 3-6 days

0

15

Honda 25014-VD6-900

BEARING SET, THRUST NEEDLE

$39.99

$

Usually ships in 3-6 days

0

16

Honda 25016-VD6-900

CASE SET, PUMP

$112.99

$

Usually ships in 3-6 days

0

17

Honda 25312-VD6-900

GASKET, PUMP CASE

$4.49

$

In Stock, only 1 left!

0

18

Honda 25321-VD6-900

SHAFT, PUMP

$47.99

$

Usually ships in 3-6 days

0

19

Honda 25342-VD6-900

PISTON, PUMP

$9.49

$

Usually ships in 3-6 days

0

20

Honda 25343-VD6-900

SPRING, PISTON

$2.49

$

Usually ships in 3-6 days

0

21

Honda 25421-VD6-852

FILTER, SUCTION

$10.99

$

Usually ships in 3-6 days

0

22

Honda 25425-VD6-901

PLATE, FILTER

$5.99

$

Usually ships in 3-6 days

0

23

Honda 25431-VD6-305

SEE PART DETAILS - PRI; SPRING, RELIEF VALVE

$1.99

$

Usually ships in 3-6 days

0

23

Honda 25431-VD6-900

SEE PART DETAILS - SUP; SPRING, RELIEF VALVE
(Superseded to 25431-VD6-305)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 25435-VD6-901

BODY, NEUTRAL VALVE

$13.99

$

Usually ships in 3-6 days

0

25

Honda 25442-VD6-900

NEEDLE A, NEUTRAL VALVE (22.4)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 25443-VD6-900

NEEDLE B, NEUTRAL VALVE (22.6)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 25444-VD6-900

NEEDLE C, NEUTRAL VALVE (22.8)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 25445-VD6-900

NEEDLE D, NEUTRAL VALVE (23.0)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 25446-VD6-900

NEEDLE E, NEUTRAL VALVE (23.2)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 25519-VD6-900

MAGNET

$3.49

$

Usually ships in 3-6 days

0

27

Honda 25529-VD6-900

PLATE, MAGNET SETTING

$2.99

$

Usually ships in 3-6 days

0

28

Honda 25711-VD6-901

CASE, MOTOR

$36.99

$

Usually ships in 3-6 days

0

29

Honda 25712-VD6-902

GASKET, MOTOR CASE

$3.49

$

Usually ships in 3-6 days

0

30

Honda 25721-VD6-901

SHAFT, MOTOR

$70.99

$

Usually ships in 3-6 days

0

31

Honda 25812-VD6-900

BUSH, CONTROL BOWL (A)

$9.49

$

Usually ships in 3-6 days

0

32

Honda 25813-VD6-900

BUSH, CONTROL BOWL (B)

$13.99

$

Usually ships in 3-6 days

0

33

Honda 54346-VK6-000

HOLDER, CONTROL CABLE

$9.49

$

Usually ships in 3-6 days

0

34

Honda 90017-ZV0-000

BOLT, FLANGE (6X18)

$2.49

$

Usually ships in 3-6 days

0

35

Honda 90102-VD6-901

BOLT A, PLUG

$6.49

$

Usually ships in 3-6 days

0

36

Honda 90102-VK6-000

BOLT, GUIDE

$5.99

$

Usually ships in 3-6 days

0

37

Honda 90109-371-000

BOLT, SEALING (8MM)

$3.99

$

Usually ships in 3-6 days

0

38

Honda 90113-VD6-900

BOLT, FLANGE (6X21)

$1.99

$

Usually ships in 3-6 days

0

39

Honda 90421-KM1-003

WASHER, SEALING

$2.99

$

Usually ships in 3-6 days

0

40

Honda 90533-VD6-901

WASHER (15X24X3.2)

$6.49

$

Usually ships in 3-6 days

0

41

Honda 90587-VD6-900

WASHER, THRUST (10.2X16X1)

$3.99

$

Usually ships in 3-6 days

0

42

Honda 90588-VD6-900

WASHER, THRUST (8.3X13X1.6)

$3.99

$

Usually ships in 3-6 days

0

43

Honda 90589-VD6-901

WASHER, THRUST (8.6X13X0.6)

$2.99

$

Usually ships in 3-6 days

0

44

Honda 90662-VD6-900

CLIP, BEARING B

$4.49

$

Usually ships in 3-6 days

0

45

Honda 90755-VD6-900

PIN, DOWEL (3X5.8)

$3.99

$

Usually ships in 3-6 days

0

46

Honda 91061-VD6-901

BEARING, THRUST BALL

$63.99

$

Usually ships in 3-6 days

0

47

Honda 91101-VA4-801

ROLLER (5X23.8)

$4.99

$

Usually ships in 3-6 days

0

48

Honda 91201-VA4-801

OIL SEAL (10X20X5)

$5.49

$

In Stock, only 3 left!

0

49

Honda 91201-246-005

OIL SEAL (15X24X5)

$9.49

$

In Stock, Qty 13

0

50

Honda 91255-723-671

PLUG, SEAL

$15.99

$

In Stock, only 1 left!

0

51

Honda 91307-PE0-010

O-RING (25X2.4)

$5.49

$

In Stock, only 1 left!

0

52

Honda 91361-VD6-901

O-RING (11.8X1.9)

$3.49

$

Usually ships in 3-6 days

0

53

Honda 91363-VD6-900

O-RING (6.8X1.9)

$1.99

$

In Stock, only 2 left!

0

54

Honda 94103-10000

WASHER, PLAIN (10MM)

$0.99

$

Usually ships in 3-6 days

0

55

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 5

0

56

Honda 94301-08100

SEE PART DETAILS - PRI; PIN, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

57

Honda 94303-04065

PIN C, DOWEL (4X6.5)

$2.99

$

Usually ships in 3-6 days

0

58

Honda 94305-40222

PIN, SPRING (4X22)

$2.99

$

In Stock, only 1 left!

0

59

Honda 94305-50202

PIN, SPRING (5X20)

$2.99

$

In Stock, only 2 left!

0

60

Honda 94520-30000

CIRCLIP (INNER) (30MM)

$1.99

$

Usually ships in 3-6 days

0

61

Honda 96001-06032-00

BOLT, FLANGE (6X32)

$1.99

$

In Stock, only 3 left!

0

62

Honda 96001-06060-00

BOLT, FLANGE (6X60)

$2.99

$

Usually ships in 3-6 days

0

63

Honda 96001-06065-00

BOLT, FLANGE (6X65)

$3.49

$

Usually ships in 3-6 days

0

64

Honda 96100-60000-00

BEARING, RADIAL BALL (6000)

$11.99

$

Usually ships in 3-6 days

0

65

Honda 96211-05000

BALL, STEEL (#5) (5/32)

$1.49

$

Usually ships in 3-6 days

0

66

Honda 96211-08000

BALL, STEEL (#8) (1/4)

$1.99

$

Usually ships in 3-6 days

0

67

Honda 96220-40198

ROLLER (4X19.8)

$1.49

$

In Stock, Qty 8

0

68

Honda 96220-60224

ROLLER (6X22.4)

$2.99

$

Usually ships in 3-6 days

0

69

Honda 54630-VK6-010

CABLE, CHANGE

$19.99

$

In Stock, Qty 13

0
