HRC216 K3 HXA (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1050001 - MAKA-1999999) CYLINDER HEAD Parts Diagram

21" Walk-Behind Mower, Made in USA

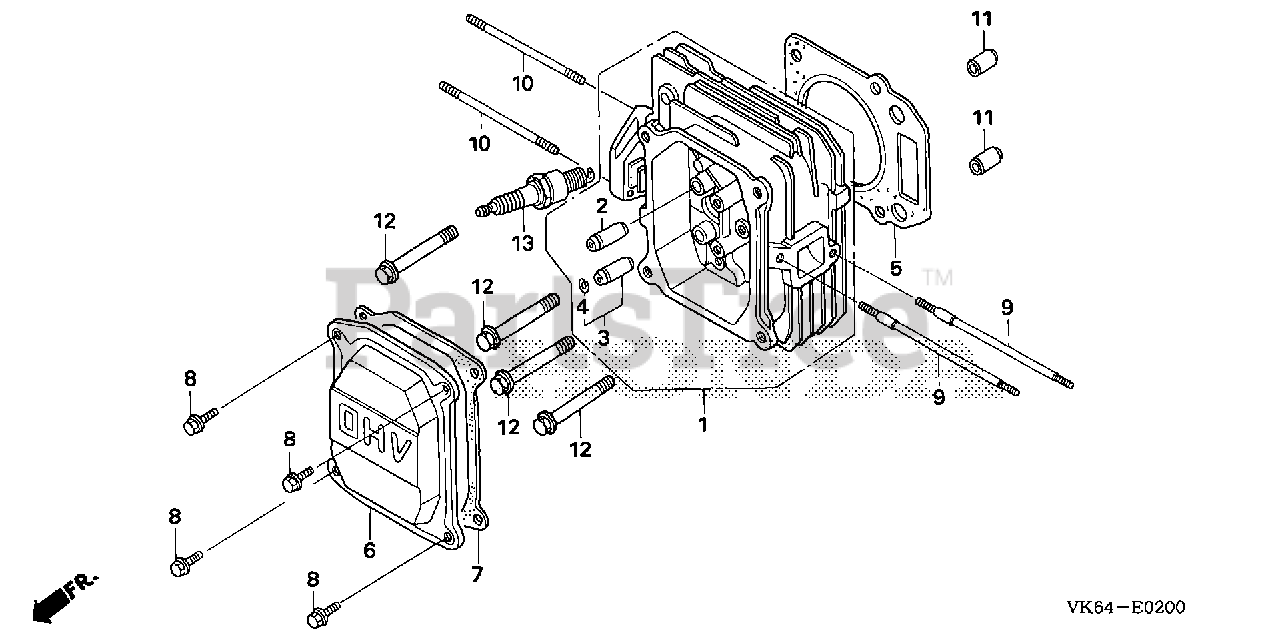

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZE7-405

CYLINDER HEAD

$223.99

$

In Stock, only 1 left!

0

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$9.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

$10.99

$

In Stock, only 2 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 16

0

5

Honda 12251-ZE7-000

GASKET, CYLINDER HEAD

Note: Use up to Engine SN 1453288.

$11.99

$

In Stock, Qty 11

0

5

Honda 12251-Z1V-003

GASKET, CYLINDER HEAD (GUANGZHOU LEAKLESS)

Note: Use from Engine SN 1453289.

$12.99

$

In Stock, only 2 left!

0

5

Honda 12251-Z1V-701

GASKET, CYLINDER HEAD (NINGBO SIL GASKET)

$6.99

$

Usually ships in 3-6 days

0

6

Honda 12311-ZG9-800

COVER, HEAD

$10.99

$

In Stock, only 2 left!

0

7

Honda 12312-Z1V-701

GASKET, HEAD COVER (NINGBO SIL GASKET)

$5.99

$

In Stock, Qty 10

0

7

Honda 12391-ZE7-M10

GASKET, HEAD COVER

$12.99

$

In Stock, only 4 left!

0

8

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, Qty 8

0

9

Honda 90043-ZE6-000

BOLT, STUD (6X109)

Note: Use up to Engine SN 2571538.

$8.49

$

In Stock, only 2 left!

0

9

Honda 90043-Z1V-000

BOLT, STUD (6X97)

Note: Use from Engine SN 2571539.

$4.99

$

Usually ships in 3-6 days

0

10

Honda 90048-ZC3-000

BOLT, STUD (6X85)

Note: Use up to Engine SN 2571538.

$4.99

$

In Stock, Qty 20+

0

10

Honda 90048-Z1V-000

BOLT, STUD (6X85)
(Superseded to 90048-ZC3-000)

Note: Use from Engine SN 2571539.

$4.99

$

In Stock, Qty 20+

0

11

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

12

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0

13

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK)

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0

13

Honda 98079-54855

SPARK PLUG (W14EPR-U) (DENSO)

Note: (Optional).

$3.99

$

In Stock, only 3 left!

0

13

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

13

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

In Stock, only 1 left!

0

13

Honda 98079-56846

SPARK PLUG (BPR6ES) (NGK)

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0

13

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

Note: (Optional).

$3.99

$

In Stock, Qty 8

0
