HRC216 K3 HXA (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1050001 - MAKA-1999999) CONTROL (HDAH/HXA/HXC) Parts Diagram

21" Walk-Behind Mower, Made in USA

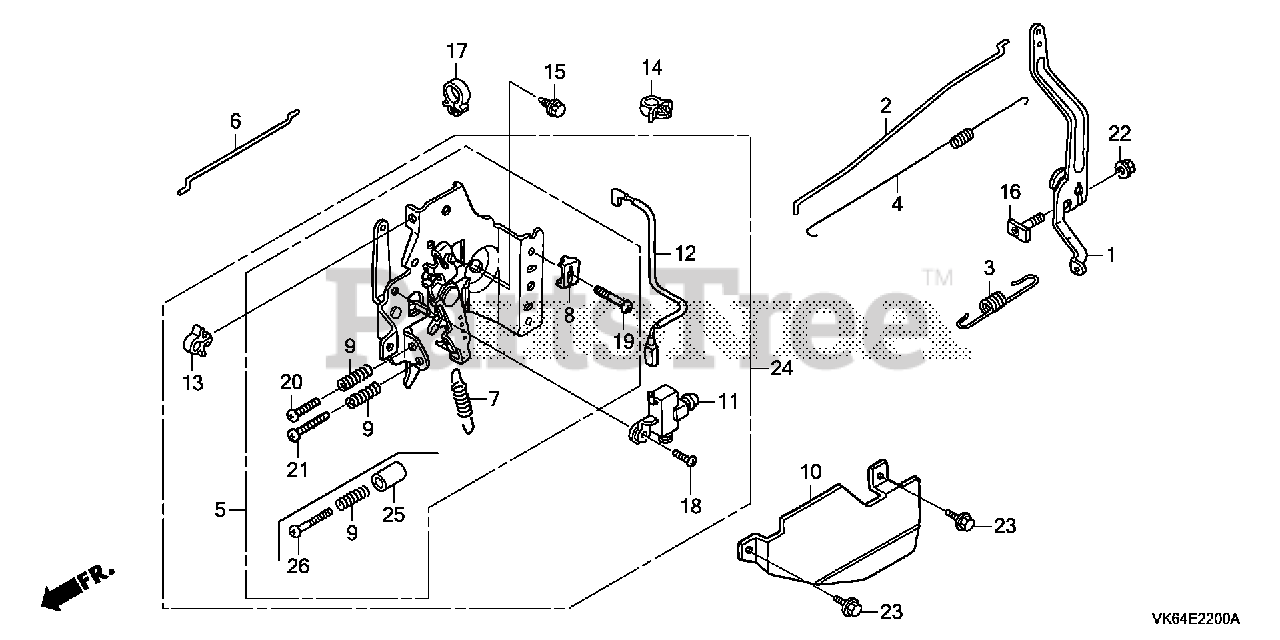

CONTROL (HDAH/HXA/HXC) Parts Diagram

  • Title

1

Honda 16551-ZE7-000

ARM, GOVERNOR

$20.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE7-000

ROD, GOVERNOR

$5.49

$

Usually ships in 3-6 days

0

3

Honda 16561-ZE7-020

SPRING, GOVERNOR

$4.49

$

In Stock, only 2 left!

0

4

Honda 16562-ZE6-000

SPRING, THROTTLE RETURN

$5.49

$

Usually ships in 3-6 days

0

5

Honda 16570-ZE7-W10

CONTROL

$49.99

$

Usually ships in 3-6 days

0

6

Honda 16573-ZE7-000

ROD, CHOKE

$2.99

$

Usually ships in 3-6 days

0

7

Honda 16576-ZE7-300

SPRING, LEVER

$4.99

$

In Stock, Qty 10

0

8

Honda 16576-891-000

HOLDER, CABLE

$5.49

$

In Stock, only 1 left!

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 6

0

10

Honda 16585-ZE7-000

PROTECTOR, CONTROL

$16.99

$

Usually ships in 3-6 days

0

11

Honda 36100-ZE7-013

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

$21.99

$

In Stock, only 1 left!

0

12

Honda 36101-ZE7-020

WIRE, STOP SWITCH

$17.99

$

Usually ships in 3-6 days

0

13

Honda 36103-ZE1-000

SEE PART DETAILS - PRI; HOLDER, STOP SWITCH WIRE

$2.99

$

In Stock, only 1 left!

0

14

Honda 46392-SC2-003

CLAMP, BRAKE PIPE (GRAY)

Note: Use up to Engine SN 1446521.

$5.49

$

Usually ships in 3-6 days

0

14

Honda 46392-Z1V-003

CLAMP, HARNESS

Note: Use from Engine SN 1446522.

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

16

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

17

Honda 90659-680-013

CLIP, WIRE HARNESS

Note: Use up to Engine SN 1446686.

$8.49

$

Usually ships in 3-6 days

0

17

Honda 90659-Z1V-003

CLIP, HARNESS

Note: Use from Engine SN 1446687.

$2.99

$

Usually ships in 3-6 days

0

18

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

19

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 7

0

20

Honda 93500-05020-0A

SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 7

0

24

Honda 16500-ZE7-W31

CONTROL ASSY.

$82.99

$

In Stock, only 1 left!

0

25

Honda 16599-ZG1-M10

COLLAR, STOPPER

$3.99

$

Usually ships in 3-6 days

0

26

Honda 90016-ZE7-W00

SCREW, RECESSED (5X28)

$2.99

$

Usually ships in 3-6 days

0
