HRC216 K3 HDPH (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-2000001 - MAKA-9999999) FLYWHEEL (HDAH/HDPH) Parts Diagram

21" Walk-Behind Mower, Made in USA

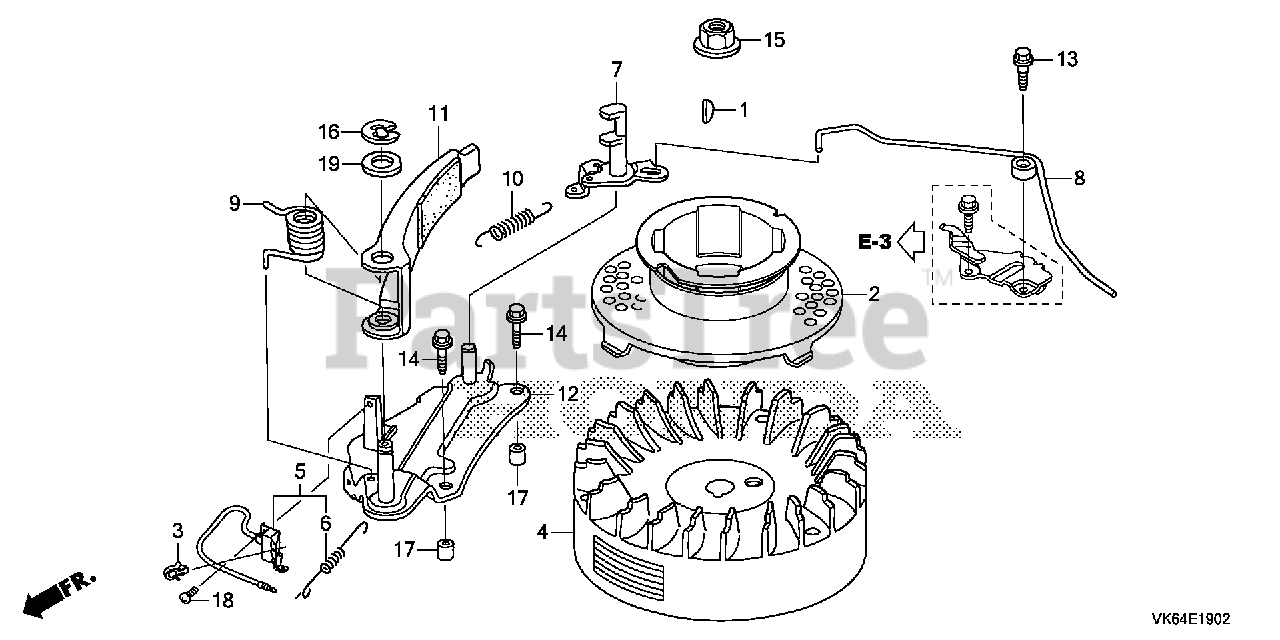

FLYWHEEL (HDAH/HDPH) Parts Diagram

  • Title

1

Honda 13331-Z1V-M10

KEY, SPECIAL WOODRUFF (25X18)

$5.99

$

Usually ships in 3-6 days

0

2

Honda 28450-Z1V-930

PULLEY, STARTER

$35.99

$

In Stock, only 1 left!

0

3

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

4

Honda 31110-Z1V-811

FLYWHEEL (BRAKE)

$168.99

$

Usually ships in 3-6 days

0

5

Honda 35120-Z1V-811

SWITCH ASSY., ENGINE STOP (BRAKE)

$19.99

$

Usually ships in 3-6 days

0

6

Honda 35129-Z1V-811

SPRING, SWITCH CONTROL

$5.49

$

Usually ships in 3-6 days

0

7

Honda 43140-Z1V-000

CAM, BRAKE

$70.99

$

Usually ships in 3-6 days

0

8

Honda 43145-Z1V-003

SEE PART DETAILS - PRI; ROD, THROTTLE RETURN

$6.49

$

Usually ships in 3-6 days

0

9

Honda 75112-ZE6-000

SPRING, BRAKE (Honda Code 1735877).

$12.99

$

Usually ships in 3-6 days

0

10

Honda 75113-ZE6-000

SPRING, BRAKE RETURN (Honda Code 1732056).

$4.49

$

In Stock, Qty 16

0

11

Honda 75120-ZE6-013

SEE PART DETAILS - PRI; BRAKE

$37.99

$

Usually ships in 3-6 days

0

12

Honda 75130-ZE7-010

SEE PART DETAILS - PRI; BASE, BRAKE

$48.99

$

Usually ships in 3-6 days

0

13

Honda 90015-ZE6-000

BOLT, FLANGE (6MM) (Honda Code 1688084).

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

In Stock, Qty 5

0

15

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.99

$

Usually ships in 3-6 days

0

16

Honda 90653-723-000

E-RING (10MM) (Honda Code 0454074).

$1.99

$

In Stock, only 2 left!

0

17

Honda 90702-ZE6-000

PIN, DOWEL (8X9) (Honda Code 1735885).

$2.99

$

Usually ships in 3-6 days

0

18

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

19

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available
