HRC216 K3 HDAH (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1050001 - MAKA-1999999) CUTTER HOUSING Parts Diagram

21" Walk-Behind Mower, Made in USA

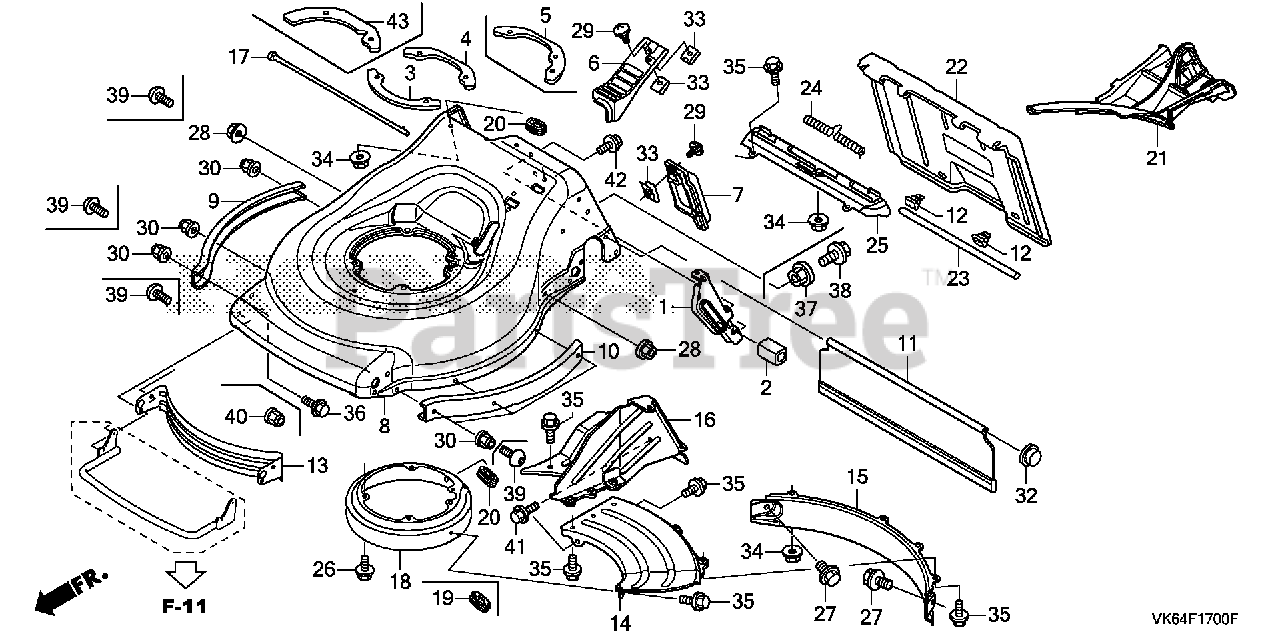

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 22511-VK6-000

GUIDE, TRANSMISSION MOUNT

$15.99

$

Usually ships in 3-6 days

0

2

Honda 22518-VK6-000

SLIDER, TRANSMISSION

$2.99

$

Usually ships in 3-6 days

0

3

Honda 51117-VK6-000

SPACER, ENGINE (A)

$3.99

$

Usually ships in 3-6 days

0

4

Honda 51118-VK6-000

SPACER, ENGINE (B)

Note: Use up to Frame SN 1200080.

$10.99

$

Usually ships in 3-6 days

0

6

Honda 54241-VK6-000

COVER, DRIVESHAFT

$2.49

$

In Stock, Qty 5

0

7

Honda 63311-VK6-000

COVER, RR.

$1.49

$

In Stock, only 2 left!

0

8

Honda 76110-VK6-000ZB

SEE PART DETAILS - PRI; HOUSING, CUTTER *NH190M* (VINTAGE GRAY METALLIC)
(Superseded to 76110-VK6-000ZA)

$

$

Not available

9

Honda 76115-VK6-000

GUARD, R. HOUSING

$35.99

$

Usually ships in 3-6 days

0

10

Honda 76116-VK6-000

GUARD, L. HOUSING

$35.99

$

Usually ships in 3-6 days

0

11

Honda 76118-VK6-000

SHIELD, RR.

$16.99

$

In Stock, Qty 5

0

12

Honda 76122-VA4-000

STOPPER, DISCHARGE GUARD

$4.49

$

In Stock, only 2 left!

0

13

Honda 76126-VK6-000

SCROLL, FR.

$12.99

$

In Stock, only 1 left!

0

14

Honda 76130-VK6-000

SCROLL, RR. (UPPER)

$53.99

$

In Stock, only 1 left!

0

15

Honda 76132-VK6-000

SCROLL, RR. (LOWER)

$9.99

$

In Stock, only 4 left!

0

16

Honda 76135-VK6-000

SCROLL, DISCHARGE

$44.99

$

In Stock, only 1 left!

0

17

Honda 76138-VK6-000

SHAFT, RR. SHIELD

$2.49

$

In Stock, only 3 left!

0

18

Honda 76147-VK6-000

COVER, ROTO-STOP

$86.99

$

Usually ships in 3-6 days

0

20

Honda 76231-952-770

GROMMET, CABLE

$5.99

$

Usually ships in 3-6 days

0

21

Honda 76266-VK6-000ZA

STUFFING *NH105* (MAT BLACK)

$12.99

$

In Stock, only 2 left!

0

22

Honda 76311-VA3-000

GUARD, DISCHARGE

$87.99

$

Usually ships in 3-6 days

0

23

Honda 76312-VA3-E40

SHAFT, DISCHARGE GUARD

$2.49

$

Usually ships in 3-6 days

0

24

Honda 76314-VA5-010

SEE PART DETAILS - PRI; SPRING, GUARD RETURN

$5.99

$

In Stock, only 1 left!

0

25

Honda 81352-VK6-020

SEE PART DETAILS - PRI; PLATE, GRASS BAG

$39.99

$

Usually ships in 3-6 days

0

26

Honda 90102-VA4-000

BOLT, ENGINE SETTING

$3.99

$

In Stock, only 2 left!

0

27

Honda 90108-VK6-000

BOLT, SPECIAL

$0.99

$

Usually ships in 3-6 days

0

28

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

28

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 14

0

29

Honda 90112-V10-R10

BOLT, CHUTE SETTING

$3.99

$

Usually ships in 3-6 days

0

32

Honda 90301-VK6-000

NUT, PUSH (6.35MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 90344-964-003

NUT, CLIP (6MM)

$5.49

$

In Stock, only 3 left!

0

34

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

35

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0

39

Honda 90104-VK6-000

SCREW, HEX. SOCKET BUTTON (6X12)

$0.99

$

Usually ships in 3-6 days

0

40

Honda 90220-MA5-700

NUT, NYLON RING (6MM)

$11.99

$

Usually ships in 3-6 days

0

41

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0

42

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0

43

Honda 51118-VK6-V00

SPACER B, ENG

Note: Use from Frame SN 1200081.

$4.49

$

Usually ships in 3-6 days

0
