HRC216 K3 HDAH/A (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-2000001 - MAKA-9999999) HANDLEBAR (HDAH) Parts Diagram

21" Walk-Behind Mower, Made in USA

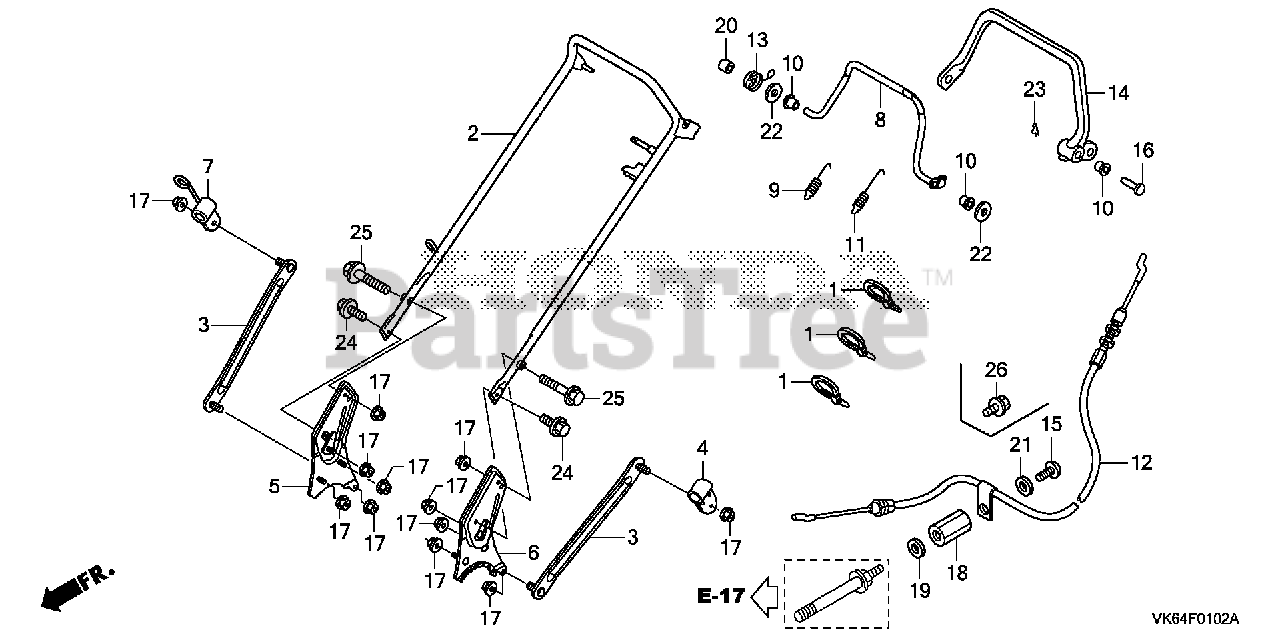

HANDLEBAR (HDAH) Parts Diagram

  • Title

1

Honda 32901-VK6-000

TIE, CABLE

$1.49

$

Usually ships in 3-6 days

0

2

Honda 53110-VK6-020ZA

PIPE, HANDLE *NH105* (MAT BLACK)

$332.99

$

Usually ships in 3-6 days

0

3

Honda 53118-VK6-000

PLATE, HANDLE SUPPORT

$19.99

$

In Stock, only 2 left!

0

4

Honda 53119-VK6-000

HANGER, HANDLE SUPPORT

$5.49

$

In Stock, only 2 left!

0

5

Honda 53130-VK6-000

STAY, R. HANDLE

$18.99

$

In Stock, only 2 left!

0

6

Honda 53135-VK6-000

STAY, L. HANDLE

$18.99

$

In Stock, only 2 left!

0

7

Honda 53150-VK6-V00

HANGER

$11.99

$

Usually ships in 3-6 days

0

8

Honda 54410-VE1-R00

LEVER, CLUTCH

$

$

Not available

9

Honda 54411-VA3-J00

SPRING, CLUTCH

$6.99

$

Usually ships in 3-6 days

0

10

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, only 2 left!

0

11

Honda 54414-VA3-P00

SPRING, CLUTCH LEVER RETURN

$4.99

$

In Stock, only 1 left!

0

12

Honda 54530-VK6-V00

CABLE, BRAKE

$38.99

$

In Stock, only 1 left!

0

13

Honda 75118-VA3-J00

SPRING, R. STOP RETURN

$5.99

$

In Stock, only 4 left!

0

14

Honda 75190-VE1-E00ZA

LEVER, BRAKE *NH105* (MAT BLACK)

$105.99

$

In Stock, only 1 left!

0

16

Honda 90106-VA4-800

PIN, CLUTCH LEVER

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 14

0

18

Honda 90303-VK6-V00

NUT, COUPLING (6X18)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90473-896-000

WASHER (6MM)

$2.49

$

In Stock, only 3 left!

0

20

Honda 90552-VA3-J00

COLLAR (8X11X13.5)

$3.99

$

In Stock, only 1 left!

0

22

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM) (Honda Code 0059097).

$1.49

$

In Stock, Qty 20+

0

23

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

24

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 7

0

25

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 6

0

26

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709).

$2.49

$

In Stock, Qty 18

0
