HRC216 K2 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1000001 - MAJA-1009999) OIL PAN (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

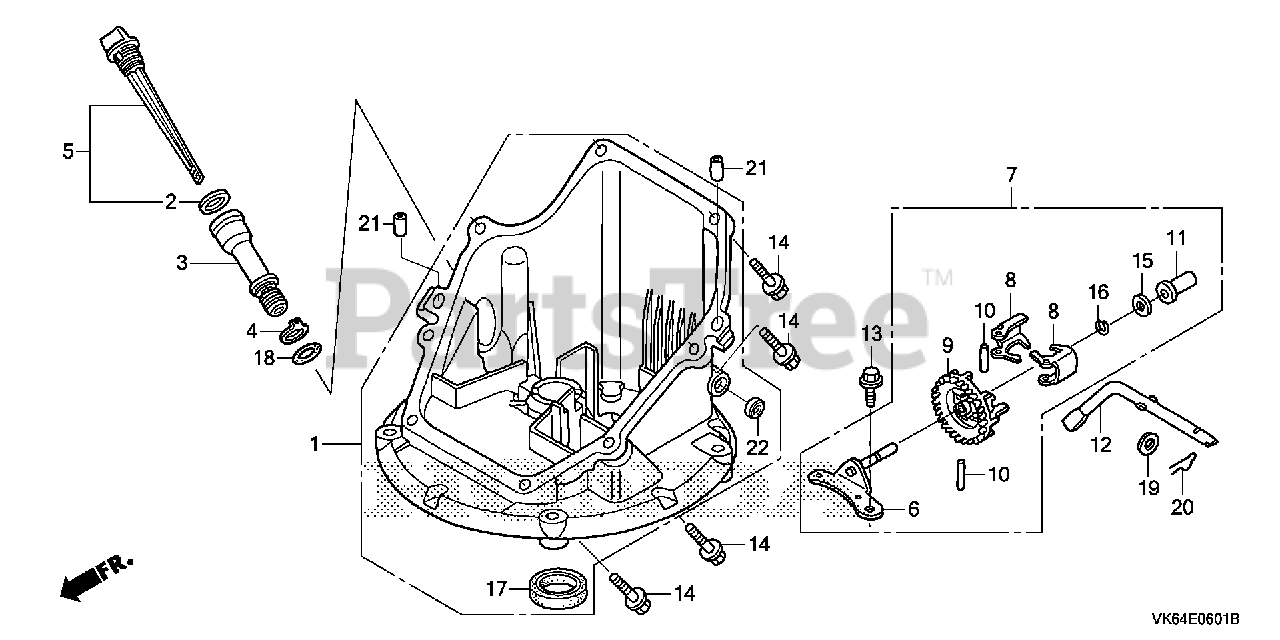

OIL PAN (PDA) Parts Diagram

  • Title

1

Honda 11300-Z0Y-J00

PAN ASSY., OIL
(Superseded to 11300-Z0Y-T30)

$62.99

$

Usually ships in 3-6 days

0

2

Honda 15625-ZE6-000

GASKET, OIL FILLER CAP Use up to Engine SN 1257294.

$4.49

$

In Stock, only 1 left!

0

3

Honda 15631-ZM0-000

EXTENSION, OIL FILLER (Honda Code 5664503).

$9.99

$

In Stock, only 1 left!

0

4

Honda 15639-ZM0-000

WASHER, EXTENSION LOCK (Honda Code 5664511).

$0.99

$

In Stock, Qty 8

0

5

Honda 15650-ZM0-801

SEE PART DETAILS - PRI; DIPSTICK, OIL (Honda Code 5716915).

$7.49

$

In Stock, only 3 left!

0

6

Honda 16508-ZM0-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER (Honda Code 6384341).

$6.99

$

Usually ships in 3-6 days

0

7

Honda 16510-ZM0-010

SEE PART DETAILS - PRI; GOVERNOR ASSY. (Honda Code 6384333).

$21.99

$

In Stock, only 2 left!

0

8

Honda 16511-ZL8-000

WEIGHT, GOVERNOR (Honda Code 5580287).

$1.99

$

In Stock, only 4 left!

0

9

Honda 16512-ZM0-000

HOLDER, GOVERNOR WEIGHT (Honda Code 5580295).

$12.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, only 1 left!

0

12

Honda 16541-ZM0-000

SHAFT, GOVERNOR ARM (Honda Code 5580303).

$4.99

$

In Stock, only 3 left!

0

13

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

14

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

15

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$1.99

$

In Stock, Qty 5

0

16

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

17

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6) (Honda Code 5581046).

$7.49

$

In Stock, Qty 5

0

18

Honda 91303-KF0-003

O-RING (14.8X2.4) (ARAI)

$2.49

$

In Stock, only 4 left!

0

19

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, only 4 left!

0

20

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

21

Honda 94301-08200

SEE PART DETAILS - PRI; PIN, DOWEL (8X20)

$2.99

$

Usually ships in 3-6 days

0
