HRC216 K2 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1000001 - MAJA-1009999) MUFFLER (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

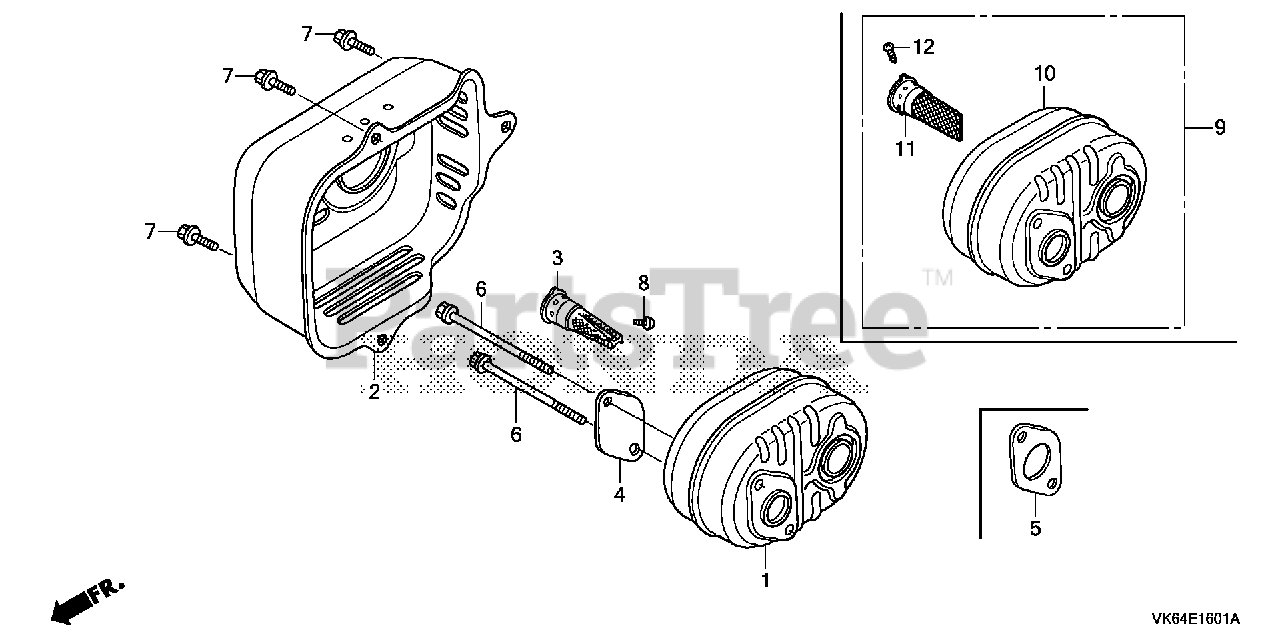

MUFFLER (PDA) Parts Diagram

  • Title

1

Honda 18310-ZM0-010

SEE PART DETAILS - PRI; MUFFLER

$26.99

$

In Stock, only 1 left!

0

2

Honda 18321-Z0L-J01

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$7.49

$

Usually ships in 3-6 days

0

3

Honda 18350-ZL8-000

SEE PART DETAILS - PRI; ARRESTER, SPARK (TO 1207644)

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

4

Honda 18356-ZL8-000

PLATE, ARRESTER NUMBER (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional).

$4.99

$

In Stock, only 2 left!

0

5

Honda 18381-ZL8-305

GASKET, MUFFLER (Honda Code 5737457).

Note: (Optional).

$5.49

$

In Stock, Qty 16

0

6

Honda 90004-ZL8-000

BOLT, FLANGE (6X79) (CT200) (Honda Code 5580972).

$1.99

$

In Stock, Qty 14

0

7

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

8

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional).

$1.49

$

In Stock, Qty 11

0
