HRC216 K2 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1000001 - MAJA-1009999) FRONT WHEEL Parts Diagram

21" Walk-Behind Mower, Made in USA

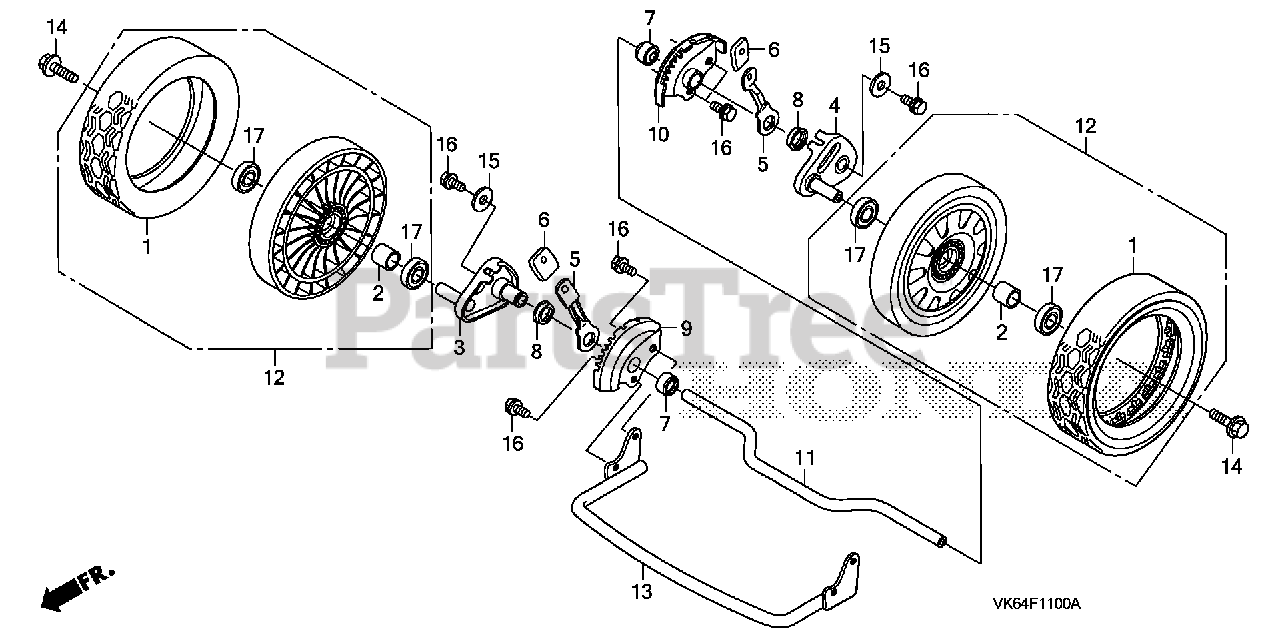

FRONT WHEEL Parts Diagram

  • Title

1

Honda 42751-VK6-010

TIRE (9 INCH)

$31.99

$

Usually ships in 3-6 days

0

2

Honda 91556-VK6-000

COLLAR, WHEEL

$4.99

$

In Stock, only 1 left!

0

3

Honda 42910-VK6-000

ARM, R. FR. ADJUSTING

$38.99

$

In Stock, only 1 left!

0

4

Honda 42920-VK6-000

ARM, L. FR. ADJUSTING

$61.99

$

In Stock, only 1 left!

0

5

Honda 42951-VB5-800

PLATE, FR. ADJUSTER

$14.99

$

In Stock, only 2 left!

0

6

Honda 42952-VG3-000ZA

SEE PART DETAILS - PRI; GRIP, ADJUSTER *NH105* (MAT BLACK)

$0.99

$

In Stock, Qty 20+

0

7

Honda 42954-VB5-801

SEE PART DETAILS - PRI; DUST SEAL A

$5.99

$

In Stock, only 2 left!

0

8

Honda 42955-VB5-801

SEE PART DETAILS - PRI; DUST SEAL, R.

$4.99

$

In Stock, Qty 11

0

9

Honda 42980-VK6-000

PANEL, R. FR. ADJUSTER

$19.99

$

Usually ships in 3-6 days

0

10

Honda 42985-VK6-000

PANEL, L. FR. ADJUSTER

$17.99

$

In Stock, Qty 7

0

11

Honda 44311-VK6-000

SHAFT, FR. AXLE

$33.99

$

Usually ships in 3-6 days

0

12

Honda 44700-VK6-000ZA

WHEEL ASSY., FR. *NH462R* (VINTAGE GRAY SOLID)

Note: Use up to Frame SN 1004239.

$

$

Not available

12

Honda 44700-VK6-020ZA

WHEEL ASSY., FR. *NH462R* (VINTAGE GRAY SOLID)

Note: Use from Frame SN 1004240.

$66.99

$

In Stock, only 2 left!

0

13

Honda 76260-VK6-000

GUARD, FR.

$61.99

$

In Stock, only 1 left!

0

14

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

15

Honda 90505-SD9-000

WASHER, RR. ENGINE MOUNTING

$9.99

$

In Stock, only 2 left!

0

16

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 7

0

17

Honda 96150-60020-10

BEARING, RADIAL BALL (6002UU)

$16.99

$

In Stock, Qty 11

0
